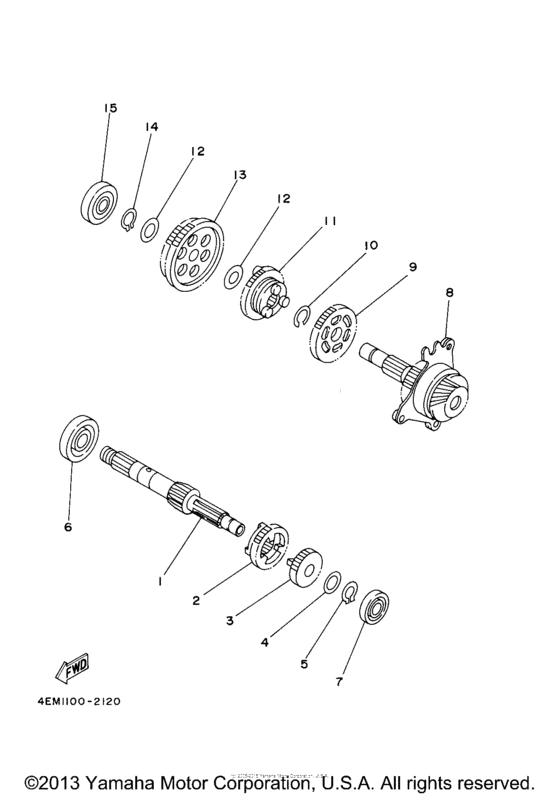

Transmission Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GX
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HX-17411-01-00 Axle, Main |
2HX-17411-01-00 |
from US $68.42 |
||
|
2
|
2
55X-17131-00-00 Gear, 3Rd Pinion (22T)3RD PINION 22T |
55X-17131-00-00 |
from US $51.34 |
||
|
3
|
3
2HX-17121-00-00 Gear, 2Nd Pinion (17T)2ND PINION 17T |
2HX-17121-00-00 |
from US $25.52 |
||
|
4
|
4
90201-124F8-00 Washer, Plate |
90201-124F8-00 |
from US $1.84 |
||
|
5
|
5
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
6
|
6
933-06203-01-00
Bearing
|
933-06203-01-00 |
— | ||
| replacement | |||||
|
6
|
6
933-06203-27-00 Bearing (7X9) |
933-06203-27-00 |
from US $26.35 |
||
|
7
|
7
93306-00105-00 Bearing |
93306-00105-00 |
from US $10.48 |
||
|
8
|
8
3GB-17402-00-00 Drive Axle Assy |
3GB-17402-00-00 |
from US $168.56 |
||
|
9
|
9
55X-17231-00-00 Gear, 3Rd Wheel (31T)3RD WHEEL 31T |
55X-17231-00-00 |
from US $32.01 |
||
|
10
|
10
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
11
|
11
55X-17241-00-00 Gear, 4Th Wheel (27T)4TH WHEEL 27T |
55X-17241-00-00 |
from US $33.93 |
||
|
12
|
12
90201-132G5-00 Washer, Plate |
90201-132G5-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
13
|
13
3GB-17211-00-00 Gear, 1St Wheel (39T)1ST WHEEL 39T |
3GB-17211-00-00 |
from US $59.52 |
||
|
14
|
14
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
15
|
15
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.78 |
||
