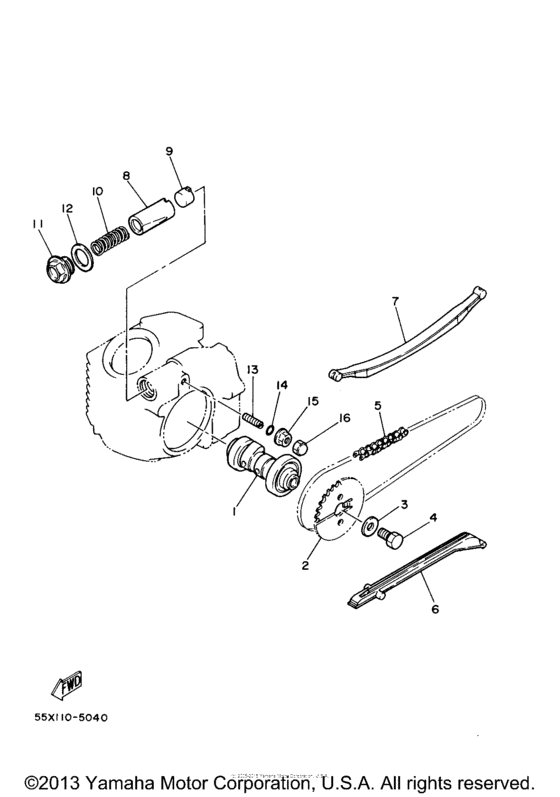

Camshaft & chain Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GXGR
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55X-12170-00-00 Camshaft Assy 1 |
55X-12170-00-00 |
from US $125.30 |
||
|
2
|
2
50M-12176-00-00 Sprocket, Cam Chain28T |
50M-12176-00-00 |
from US $10.58 |
||
|
3
|
3
90201-08048-00 Washer, Plate |
90201-08048-00 |
from US $1.70 |
||
|
4
|
4
90101-08055-00 Bolt |
90101-08055-00 |
from US $1.70 |
||
|
5
|
5
94580-25082-00 Chain(2Fj)25 |
94580-25082-00 |
from US $8.64 |
||
|
6
|
6
22F-12231-01-00 Guide, Stopper 1 |
22F-12231-01-00 |
from US $9.92 |
||
|
7
|
7
22F-12241-00-00 Guide, Stopper 2 |
22F-12241-00-00 |
from US $15.54 |
||
|
8
|
8
22F-12217-01-00
Rod, Chain Tensioner
|
22F-12217-01-00 |
— | ||
|
9
|
9
90334-14037-00 Plug, Straight |
90334-14037-00 |
from US $1.98 |
||
|
10
|
10
90501-10710-00 Spring, Compression |
90501-10710-00 |
from US $2.13 |
||
|
11
|
11
90340-18092-00 Plug, Straight Screw |
90340-18092-00 |
from US $7.51 |
||
|
12
|
12
90201-186F1-00 Washer, Plate |
90201-186F1-00 |
from US $1.84 |
||
|
13
|
13
90113-06009-00 Bolt, Set |
90113-06009-00 |
from US $2.13 |
||
|
14
|
14
93210-06564-00 O-Ring |
93210-06564-00 |
from US $1.50 |
||
| replacement | |||||
|
14
|
14
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
15
|
15
90179-06054-00 Nut |
90179-06054-00 |
from US $1.84 |
||
|
16
|
16
95302-06800-00 Nut |
95302-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
