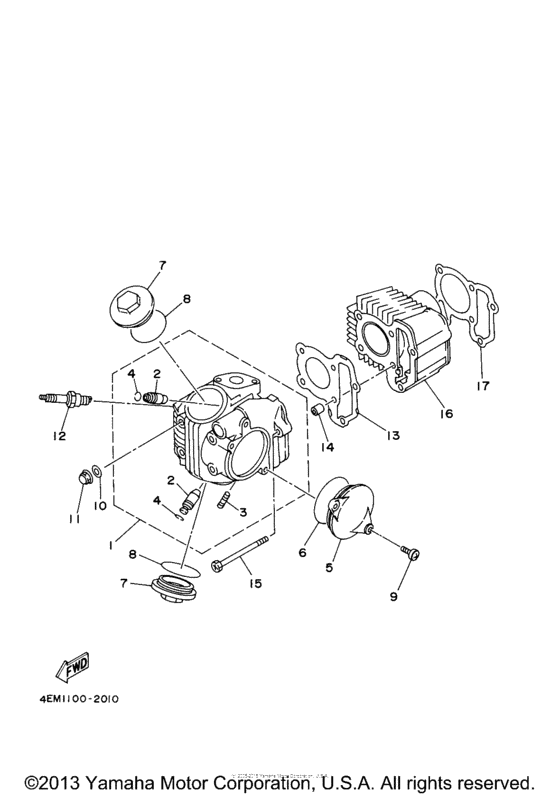

Cylinder Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GXGR
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35T-11110-01-00 Cylinder Head Assy |
35T-11110-01-00 |
from US $465.12 |
||
|
2
|
2
22F-11134-10-00 Guide, Valve 2 |
22F-11134-10-00 |
from US $35.72 |
||
|
3
|
3
22F-14651-00-00 Bolt, Stud |
22F-14651-00-00 |
from US $3.54 |
||
|
4
|
4
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.34 |
||
|
5
|
5
22F-11185-10-00 Cover, Cylinder Head Side 3 |
22F-11185-10-00 |
from US $23.94 |
||
|
6
|
6
93210-63556-00 O-Ring |
93210-63556-00 |
from US $2.32 |
||
|
7
|
7
22F-11186-10-00 Cover, Cylinder Head Side 2 |
22F-11186-10-00 |
from US $10.26 |
||
|
8
|
8
93210-44704-00 O-Ring |
93210-44704-00 |
from US $1.42 |
||
|
9
|
9
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.55 |
||
| replacement | |||||
|
9
|
9
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
10
|
10
90201-066F0-00 Washer, Plate |
90201-066F0-00 |
from US $1.56 |
||
|
11
|
11
90176-06014-00 Nut, Crown |
90176-06014-00 |
from US $1.84 |
||
|
12
|
12
NGK-CR7HS-A0-00 Plug, Spark (Ngk Cr7Hsa) |
NGK-CR7HS-A0-00 |
US $4.23 |
||
| replacement | |||||
|
12
|
12
CR7-HSA00-00-00 Plug, Spark (Ngk Cr7Hsa) |
CR7-HSA00-00-00 |
US $20.08 |
||
|
13
|
13
55X-11181-00-00 Gasket, Cylinder Head 1 |
55X-11181-00-00 |
from US $16.15 |
||
|
14
|
14
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
15
|
15
95022-06085-00 Bolt, Flange |
95022-06085-00 |
from US $1.56 |
||
|
16
|
16
22K-11311-02-00
Cylinder 1
|
22K-11311-02-00 |
— | ||
|
17
|
17
22F-11351-01-00 Gasket, Cylinder |
22F-11351-01-00 |
from US $3.64 |
||
