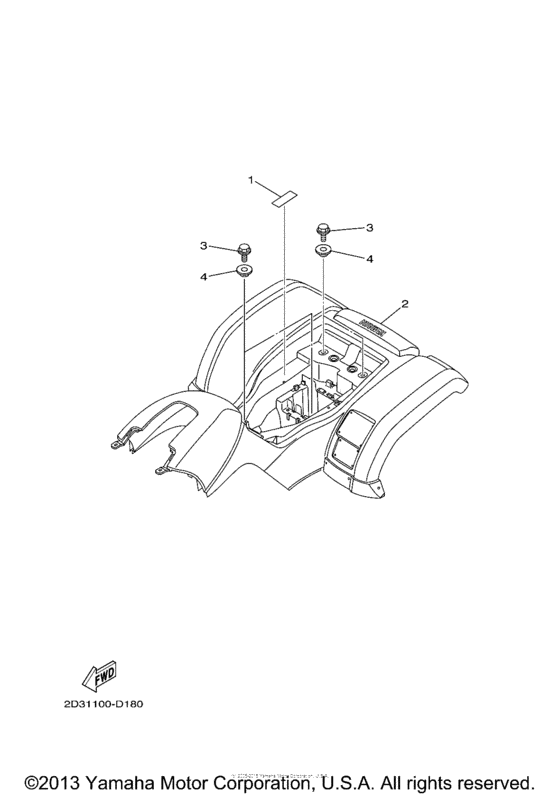

Rear fender Diagram Yamaha GRIZZLY 80 Grizzly 80
- Model code
- YFM80GXGR
- Engine Capacity
- 79
- Year
- 2008
- Sales region
- USA
- Power
- 6,3 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Grizzly 80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TH-2177C-20-00 Plate, Epa Offroad Atv 1 |
5TH-2177C-20-00 |
US $3.47 |
||
|
2
|
2
2D3-W2161-00-00 Rear Fender CompUR FOR PDG |
2D3-W2161-00-00 |
US $306.07 |
||
|
2
|
2
2D3-W2161-10-00 Rear Fender CompUR FOR DPBSN |
2D3-W2161-10-00 |
US $346.32 |
||
|
3
|
3
90119-06137-00 Bolt, With Washer |
90119-06137-00 |
from US $1.70 |
||
|
4
|
4
90387-06153-00 Collar |
90387-06153-00 |
from US $1.84 |
