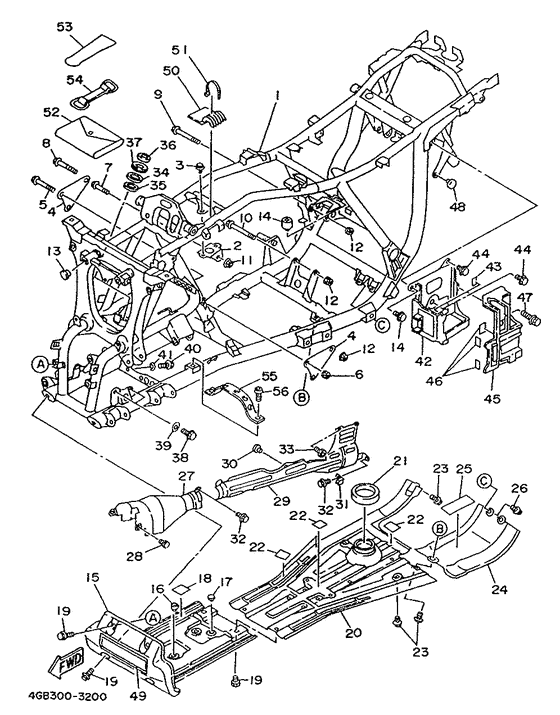

Frame Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4GB2
- Engine Capacity
- 401
- Year
- 1993
- Sales region
- Europe (General) (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GB-21110-00-33
Frame Comp
Ur for europe, canada |
4GB-21110-00-33 |
— | ||
| replacement | |||||
|
01
|
01
999-99028-76-00
Frame Kit (4Gb211100033)
Ur for europe, canada |
999-99028-76-00 |
— | ||
|
01
|
01
4GB-21110-10-33
Frame Comp
Ur for oceania |
4GB-21110-10-33 |
— | ||
|
02
|
02
4GB-21315-00-00 Stay, Engine 1 |
4GB-21315-00-00 |
US $24.86 |
||
|
03
|
03
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
03
|
03
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
04
|
04
3HN-21316-00-00 Stay, Engine 2 |
3HN-21316-00-00 |
from US $10.43 |
||
|
05
|
05
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
06
|
06
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
06
|
06
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
07
|
07
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
08
|
08
90105-10323-00 Bolt, Flange |
90105-10323-00 |
from US $3.26 |
||
|
09
|
09
901-05104-80-00 Bolt, Flange |
901-05104-80-00 |
from US $6.52 |
||
|
10
|
10
90105-10409-00 Bolt, Flange |
90105-10409-00 |
from US $7.37 |
||
|
11
|
11
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
12
|
12
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
12
|
12
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
13
|
13
90338-18122-00 Plug |
90338-18122-00 |
from US $1.70 |
||
|
14
|
14
1J7-27114-00-00
Stopper, Main Stand
|
1J7-27114-00-00 |
— | ||
|
15
|
15
4GB-2147A-00-00
Guard, Engine 1
Ur for europe, canada |
4GB-2147A-00-00 |
— | ||
|
15
|
15
4GB-2147A-A0-00
Guard, Engine 1
Ur for oceania |
4GB-2147A-A0-00 |
— | ||
|
16
|
16
116-27114-00-00 Stopper, Min Stand |
116-27114-00-00 |
from US $2 |
||
|
17
|
17
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.68 |
||
|
18
|
18
1XX-28371-00-00 Damper, Locating 1 |
1XX-28371-00-00 |
from US $2.79 |
||
| replacement | |||||
|
18
|
18
27V-24181-00-00 Damper, Locating 1 |
27V-24181-00-00 |
from US $2.79 |
||
|
19
|
19
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
20
|
20
3HN-21471-00-00 Protector, EngineUr for europe, canada |
3HN-21471-00-00 |
from US $151.98 |
||
|
20
|
20
4GB-21471-00-00
Protector, Engine
Ur for oceania |
4GB-21471-00-00 |
— | ||
|
21
|
21
3HN-27114-00-00 Stopper, Main Stand |
3HN-27114-00-00 |
US $13.56 |
||
|
22
|
22
1XX-28371-00-00 Damper, Locating 1 |
1XX-28371-00-00 |
from US $2.79 |
||
| replacement | |||||
|
22
|
22
27V-24181-00-00 Damper, Locating 1 |
27V-24181-00-00 |
from US $2.79 |
||
|
23
|
23
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
24
|
24
2HR-2147H-00-00
Stay, Transfer
|
2HR-2147H-00-00 |
— | ||
|
25
|
25
38V-21486-00-00 Damper 2 |
38V-21486-00-00 |
from US $14.54 |
||
|
26
|
26
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
27
|
27
3HN-2147J-01-00 Cover, Shaft 1 |
3HN-2147J-01-00 |
US $55.46 |
||
| replacement | |||||
|
27
|
27
3HN-2147J-10-00 Cover, Shaft 1 |
3HN-2147J-10-00 |
US $55.46 |
||
|
28
|
28
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
28
|
28
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
28
|
28
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
29
|
29
3HN-2147K-01-00 Cover, Shaft 2 |
3HN-2147K-01-00 |
US $123.32 |
||
|
30
|
30
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
31
|
31
90465-06176-00
Clamp
|
90465-06176-00 |
— | ||
|
32
|
32
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
32
|
32
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
32
|
32
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
33
|
33
91311-06050-00 Bolt, Hexagon Socket Head |
91311-06050-00 |
from US $1.56 |
||
| replacement | |||||
|
33
|
33
91314-06050-00 Bolt |
91314-06050-00 |
from US $1.56 |
||
|
34
|
34
93306-20331-00 Bearing |
93306-20331-00 |
from US $19.55 |
||
| replacement | |||||
|
34
|
34
933-06203-48-00 Bearing |
933-06203-48-00 |
from US $16.88 |
||
|
35
|
35
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
36
|
36
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
37
|
37
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
38
|
38
95811-10025-00 Bolt, Flange (13W) |
95811-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
38
|
38
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
39
|
39
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
40
|
40
97011-08045-00 Bolt(4Gb) |
97011-08045-00 |
from US $1.84 |
||
| replacement | |||||
|
40
|
40
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
41
|
41
90201-083P5-00 Washer, Plate |
90201-083P5-00 |
from US $1.70 |
||
|
42
|
42
1YW-21170-00-00
Box
|
1YW-21170-00-00 |
— | ||
| replacements | |||||
|
42
|
42
1YW-21170-01-00
Box
|
1YW-21170-01-00 |
— | ||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
44
|
44
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
44
|
44
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
44
|
44
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
45
|
45
24W-21245-00-00
Box
|
24W-21245-00-00 |
— | ||
|
46
|
46
3FC-2139R-00-00 Cover 2 |
3FC-2139R-00-00 |
from US $13.95 |
||
|
47
|
47
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
47
|
47
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
47
|
47
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
48
|
48
30X-24768-00-00 Stopper |
30X-24768-00-00 |
from US $7.49 |
||
|
49
|
49
4GB-21571-00-00
Graphic, Frt Fndr 1
|
4GB-21571-00-00 |
— | ||
|
50
|
50
2HR-24181-00-00
Damper, Locating 1
|
2HR-24181-00-00 |
— | ||
|
51
|
51
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
51
|
51
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
52
|
52
2VA-28100-00-00
Tool Kit
|
2VA-28100-00-00 |
— | ||
| replacements | |||||
|
52
|
52
3GH-28100-00-00
Tool Kit
|
3GH-28100-00-00 |
— | ||
|
52
|
52
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
53
|
53
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
53
|
53
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
54
|
54
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
55
|
55
4GB-2147E-00-00
Guard, Engine 2
For oceania |
4GB-2147E-00-00 |
— | ||
|
56
|
56
92011-08012-00 ScrewFor oceania |
92011-08012-00 |
from US $1.56 |
||
| replacement | |||||
|
56
|
56
92017-08012-00 Bolt, Button HeadFor oceania |
92017-08012-00 |
from US $1.56 |
||
