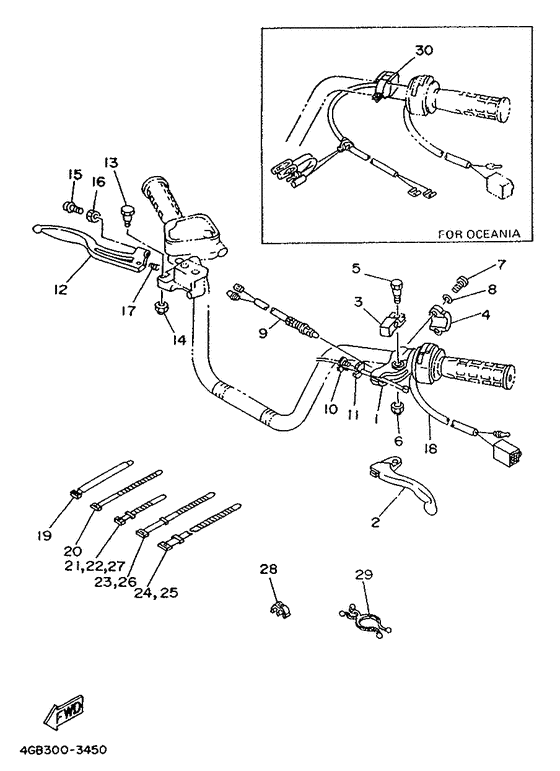

Handle switch & lever Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4GB2
- Engine Capacity
- 401
- Year
- 1993
- Sales region
- Europe (General) (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1YW-82911-00-00 Holder,lever 1For europe, canada |
1YW-82911-00-00 |
from US $49.32 |
||
| replacement | |||||
|
01
|
01
999-99030-34-00 Holder Set, Lever 1For europe, canada |
999-99030-34-00 |
from US $37.72 |
||
|
02
|
02
2HT-83912-00-00 Lever 1For europe, canada |
2HT-83912-00-00 |
US $21.39 |
||
| replacement | |||||
|
02
|
02
2HT-83912-01-00 Lever 1For europe, canada |
2HT-83912-01-00 |
from US $18.52 |
||
|
03
|
03
1YW-83965-00-00 Lever, LockFor europe, canada |
1YW-83965-00-00 |
from US $16.58 |
||
|
04
|
04
4V4-82913-00-00 Holder, Lever Lower 1For europe, canada |
4V4-82913-00-00 |
from US $17 |
||
|
05
|
05
901-09067-97-00
Bolt(10W)
For europe, canada |
901-09067-97-00 |
— | ||
| replacement | |||||
|
05
|
05
90109-061F3-00 BoltFor europe, canada |
90109-061F3-00 |
from US $2.27 |
||
|
06
|
06
956-16061-00-00
Nut (17W)
For europe, canada |
956-16061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95617-06100-00 Nut, UFor europe, canada |
95617-06100-00 |
from US $1.21 |
||
|
07
|
07
98506-05020-00 Screw, Pan HeadFor europe, canada |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
07
|
07
98517-05020-00 Screw, Pan HeadFor europe, canada |
98517-05020-00 |
from US $1.34 |
||
|
08
|
08
929-06051-00-00
Washer, Spring
For europe, canada |
929-06051-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92907-05100-00 Washer, SpringFor europe, canada |
92907-05100-00 |
from US $1.56 |
||
|
09
|
09
1YW-83980-00-00 Front Stop Switch AssyFor europe, canada |
1YW-83980-00-00 |
from US $60.38 |
||
|
10
|
10
901-23080-46-00
Bolt
For europe, canada |
901-23080-46-00 |
— | ||
| replacement | |||||
|
10
|
10
901-23080-02-00 BoltFor europe, canada |
901-23080-02-00 |
from US $3.40 |
||
|
11
|
11
901-79081-48-00
Nut
For europe, canada |
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 NutFor europe, canada |
901-79080-30-00 |
from US $6.38 |
||
|
12
|
12
38W-83922-00-00 Lever 2 |
38W-83922-00-00 |
from US $22.39 |
||
| replacement | |||||
|
12
|
12
38W-83922-01-00 Lever 2 |
38W-83922-01-00 |
from US $22.39 |
||
|
13
|
13
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.34 |
||
|
14
|
14
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
15
|
15
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90149-06131-00 Screw |
90149-06131-00 |
from US $1.70 |
||
|
16
|
16
90170-06010-00 Nut |
90170-06010-00 |
from US $1.84 |
||
|
17
|
17
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.56 |
||
|
18
|
18
4GB-83973-00-00 Switch, Handle 3 |
4GB-83973-00-00 |
from US $129.33 |
||
| replacement | |||||
|
18
|
18
4GB-83973-09-00 Switch, Handle 3 |
4GB-83973-09-00 |
from US $125.92 |
||
|
19
|
19
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
19
|
19
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
19
|
19
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
20
|
20
1UY-82591-00-00
Clamp
|
1UY-82591-00-00 |
— | ||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
22
|
22
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
23
|
23
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
23
|
23
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
24
|
24
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
25
|
25
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
26
|
26
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
28
|
28
90468-15139-00 Clip |
90468-15139-00 |
from US $1.70 |
||
|
29
|
29
90464-26114-00 Clamp |
90464-26114-00 |
from US $1.35 |
||
|
30
|
30
4GB-83976-00-00 Switch, Handle 1For oceania |
4GB-83976-00-00 |
from US $41 |
||
