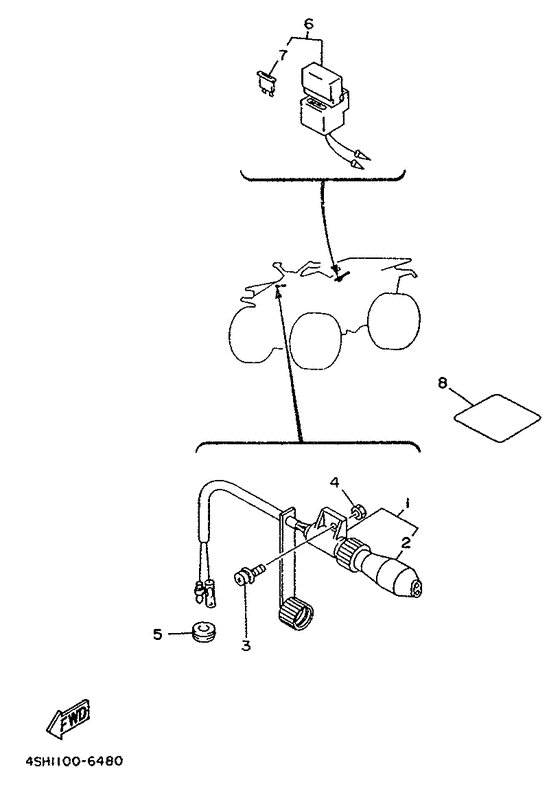

Electrical 2 (FOR OCEANIA, S.AFRICA) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4SH3
- Engine Capacity
- 401
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
59V-81920-00-00 Terminal Assy |
59V-81920-00-00 |
from US $56.65 |
||
|
02
|
02
59V-81942-00-00 Cover |
59V-81942-00-00 |
from US $6.52 |
||
|
03
|
03
90159-05018-00 Screw, With Washer |
90159-05018-00 |
from US $1.98 |
||
|
04
|
04
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
05
|
05
90480-10297-00 Grommet |
90480-10297-00 |
from US $1.70 |
||
|
06
|
06
4HF-82150-00-00 Fuse Holder Assy |
4HF-82150-00-00 |
from US $18.56 |
||
|
07
|
07
42X-82151-00-00 Fuse (10A-Bl) |
42X-82151-00-00 |
from US $1.56 |
||
|
08
|
08
59V-24894-00-00 Graphic 4 |
59V-24894-00-00 |
US $13.32 |
