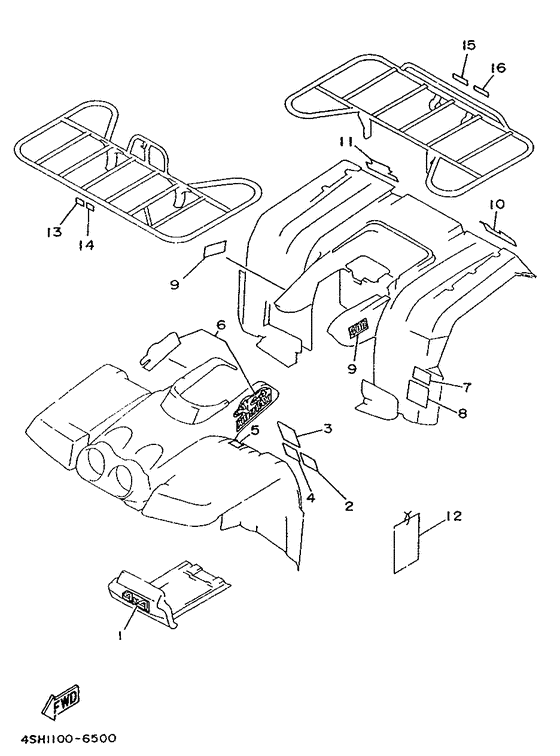

Emblem label 1 (FOR USA) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4SH3
- Engine Capacity
- 401
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KB-2118F-00-00
Emblem 2
|
4KB-2118F-00-00 |
— | ||
|
02
|
02
3JN-21578-00-00
Emblem (Shift Pattern)
|
3JN-21578-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3JN-21578-A0-00
Emblem
|
3JN-21578-A0-00 |
— | ||
|
03
|
03
3JN-21568-00-00
Label, Warning
|
3JN-21568-00-00 |
— | ||
| replacement | |||||
|
03
|
03
4WU-21568-00-00
Label, Warning
|
4WU-21568-00-00 |
— | ||
|
04
|
04
3JN-2151E-00-00 Label 2 |
3JN-2151E-00-00 |
US $8.30 |
||
| replacement | |||||
|
04
|
04
3JN-2151E-A0-00
Label 2
|
3JN-2151E-A0-00 |
— | ||
|
05
|
05
3FA-2415A-00-00
Label, Caution 2
|
3FA-2415A-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3JM-21697-00-00
Label, Caution 2
|
3JM-21697-00-00 |
— | ||
|
06
|
06
4SH-21570-00-00
Graphic Set, Front Fender
Ur pdg |
4SH-21570-00-00 |
— | ||
|
06
|
06
4SH-21570-11-00
Graphic Set, Front Fender
Ur yns3 |
4SH-21570-11-00 |
— | ||
|
07
|
07
3JN-2151H-00-00
Label 5
|
3JN-2151H-00-00 |
— | ||
| replacements | |||||
|
07
|
07
4WU-2151H-00-00
Label 5
|
4WU-2151H-00-00 |
— | ||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
4SH-21696-00-00
Label, Caution
|
4SH-21696-00-00 |
— | ||
|
09
|
09
4SH-2163G-00-00
Emblem 1
|
4SH-2163G-00-00 |
— | ||
|
10
|
10
4SH-2165G-00-00
Graphic, Rear (Lh)
|
4SH-2165G-00-00 |
— | ||
|
11
|
11
4SH-2165H-00-00
Graphic, Rear (Rh)
|
4SH-2165H-00-00 |
— | ||
|
12
|
12
4GH-2819R-00-00
Tag, Warning
|
4GH-2819R-00-00 |
— | ||
|
13
|
13
3MX-24875-00-00
Label 1, Warning
|
3MX-24875-00-00 |
— | ||
|
14
|
14
4GB-25877-00-00
Bolt, Oil 1
|
4GB-25877-00-00 |
— | ||
|
15
|
15
3MX-24875-00-00
Label 1, Warning
|
3MX-24875-00-00 |
— | ||
|
16
|
16
4SH-24897-00-00
Emblem
|
4SH-24897-00-00 |
— | ||
