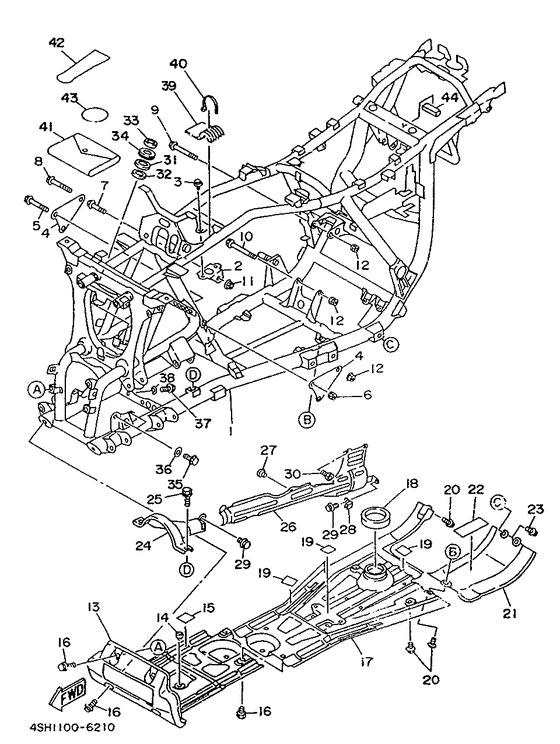

Frame 2 (FOR EUR,OCEANIA,S.AFRICA) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4SH3
- Engine Capacity
- 401
- Year
- 1996
- Sales region
- Europe (General) (999)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SH-21110-11-33
Frame Comp
Yb |
4SH-21110-11-33 |
— | ||
|
02
|
02
4GB-21315-00-00 Stay, Engine 1 |
4GB-21315-00-00 |
US $24.86 |
||
|
03
|
03
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
04
|
04
3HN-21316-00-00 Stay, Engine 2 |
3HN-21316-00-00 |
from US $10.43 |
||
|
05
|
05
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
06
|
06
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
06
|
06
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
07
|
07
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
08
|
08
90105-10323-00 Bolt, Flange |
90105-10323-00 |
from US $3.26 |
||
|
09
|
09
901-05104-80-00 Bolt, Flange |
901-05104-80-00 |
from US $6.52 |
||
|
10
|
10
90105-10409-00 Bolt, Flange |
90105-10409-00 |
from US $7.37 |
||
|
11
|
11
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
12
|
12
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
12
|
12
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
13
|
13
3HN-2147A-00-00
Guard, Engine 1
|
3HN-2147A-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
116-27114-00-00 Stopper, Min Stand |
116-27114-00-00 |
from US $2 |
||
|
15
|
15
27V-24181-00-00 Damper, Locating 1 |
27V-24181-00-00 |
from US $2.79 |
||
|
16
|
16
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
17
|
17
4GB-21471-00-00
Protector, Engine
|
4GB-21471-00-00 |
— | ||
|
18
|
18
3HN-27114-00-00 Stopper, Main Stand |
3HN-27114-00-00 |
US $13.56 |
||
|
19
|
19
27V-24181-00-00 Damper, Locating 1 |
27V-24181-00-00 |
from US $2.79 |
||
|
20
|
20
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
21
|
21
2HR-2147H-00-00
Stay, Transfer
|
2HR-2147H-00-00 |
— | ||
|
22
|
22
38V-21486-00-00 Damper 2 |
38V-21486-00-00 |
from US $14.54 |
||
|
23
|
23
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
24
|
24
4GB-2147E-00-00
Guard, Engine 2
|
4GB-2147E-00-00 |
— | ||
|
25
|
25
92017-08012-00 Bolt, Button Head |
92017-08012-00 |
from US $1.56 |
||
|
26
|
26
3HN-2147K-01-00 Cover, Shaft 2 |
3HN-2147K-01-00 |
US $123.32 |
||
|
27
|
27
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
28
|
28
90465-10164-00 Clamp |
90465-10164-00 |
US $2.50 |
||
|
29
|
29
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
30
|
30
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.07 |
||
|
31
|
31
93306-20331-00 Bearing |
93306-20331-00 |
from US $19.55 |
||
| replacement | |||||
|
31
|
31
933-06203-48-00 Bearing |
933-06203-48-00 |
from US $16.88 |
||
|
32
|
32
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
33
|
33
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
34
|
34
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
35
|
35
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
36
|
36
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
37
|
37
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
38
|
38
90201-083P5-00 Washer, Plate |
90201-083P5-00 |
from US $1.70 |
||
|
39
|
39
2HR-24181-00-00
Damper, Locating 1
|
2HR-24181-00-00 |
— | ||
|
40
|
40
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
40
|
40
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
41
|
41
59V-28100-00-00
Tool Kit (24W-28100-00)
|
59V-28100-00-00 |
— | ||
|
42
|
42
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
42
|
42
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
43
|
43
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.70 |
||
|
44
|
44
1YW-21638-00-00 Damper |
1YW-21638-00-00 |
from US $2.50 |
||
