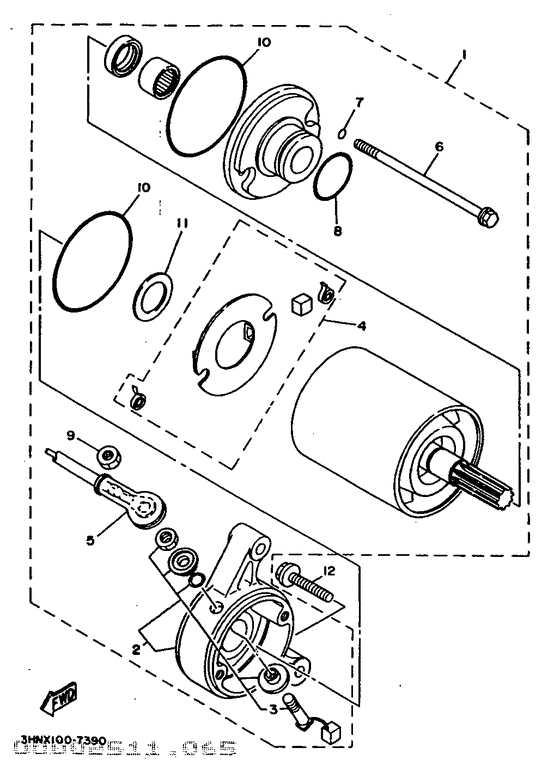

Starting motor Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4SHF
- Engine Capacity
- 401
- Year
- 1998
- Sales region
- Japan (010)
- Colour
- Aroma Green (AGE; 00L4)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2HR-81800-52-00
Motor Assy
|
2HR-81800-52-00 |
— | ||
| replacement | |||||
|
01
|
01
1UY-81890-00-00 Starting Motor Unit |
1UY-81890-00-00 |
from US $584.76 |
||
|
02
|
02
1UY-81820-51-00 Rear Bracket Assy |
1UY-81820-51-00 |
from US $70.79 |
||
|
03
|
03
1UY-81818-50-00 Brush And Bolt |
1UY-81818-50-00 |
from US $24.09 |
||
|
04
|
04
8L6-81840-50-00 Brush Holder Assy |
8L6-81840-50-00 |
from US $98.09 |
||
| replacement | |||||
|
04
|
04
8L6-81840-51-00 BRUSH HOLDER ASSY |
8L6-81840-51-00 |
from US $92.77 |
||
|
05
|
05
2HR-81815-52-00 Cord, Starter Motor |
2HR-81815-52-00 |
US $141.14 |
||
|
06
|
06
3GD-81826-00-00 Bolt, Through |
3GD-81826-00-00 |
from US $11.76 |
||
|
07
|
07
8L6-81847-50-00 O-Ring |
8L6-81847-50-00 |
from US $3.97 |
||
|
08
|
08
1UY-81847-50-00
O-Ring
|
1UY-81847-50-00 |
— | ||
| replacement | |||||
|
08
|
08
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
09
|
09
95302-06600-00 Nut, Hexagon |
95302-06600-00 |
US $1.07 |
||
| replacement | |||||
|
09
|
09
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
10
|
10
4H7-81844-50-00 O-Ring |
4H7-81844-50-00 |
from US $18.99 |
||
| replacement | |||||
|
10
|
10
4H7-81844-00-00 O-Ring |
4H7-81844-00-00 |
from US $18.99 |
||
|
11
|
11
4H7-81843-50-00 Washer 1 |
4H7-81843-50-00 |
from US $2.83 |
||
|
12
|
12
95027-06030-00 Bolt, Flange(for usa, england) |
95027-06030-00 |
from US $1.34 |
||
