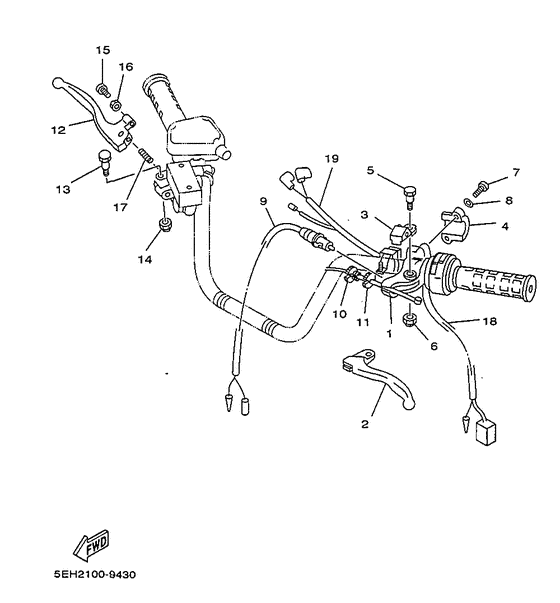

Handle switch & lever Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 5EH2
- Engine Capacity
- 401
- Year
- 1999
- Sales region
- United States (California) (010)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1YW-82911-01-00 Holder, Lever 1 |
1YW-82911-01-00 |
from US $33.01 |
||
| replacement | |||||
|
01
|
01
1YW-82911-02-00 Holder, Lever 1 |
1YW-82911-02-00 |
from US $33.01 |
||
|
02
|
02
2HT-83912-00-00 Lever 1 |
2HT-83912-00-00 |
US $21.39 |
||
| replacement | |||||
|
02
|
02
2HT-83912-01-00 Lever 1 |
2HT-83912-01-00 |
from US $18.52 |
||
|
03
|
03
1YW-83965-00-00 Lever, Lock |
1YW-83965-00-00 |
from US $16.58 |
||
|
04
|
04
2XJ-82913-00-00 Holder, Lever Lower 1 |
2XJ-82913-00-00 |
from US $13.46 |
||
|
05
|
05
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
05
|
05
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
05
|
05
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
06
|
06
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
07
|
07
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
07
|
07
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
08
|
08
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
09
|
09
1YW-83980-00-00 Front Stop Switch Assy |
1YW-83980-00-00 |
from US $60.38 |
||
|
10
|
10
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
12
|
12
38W-83922-00-00 Lever 2 |
38W-83922-00-00 |
from US $22.39 |
||
| replacement | |||||
|
12
|
12
38W-83922-01-00 Lever 2 |
38W-83922-01-00 |
from US $22.39 |
||
|
13
|
13
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.34 |
||
|
14
|
14
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
15
|
15
90149-06131-00 Screw |
90149-06131-00 |
from US $1.70 |
||
|
16
|
16
90170-06010-00 Nut |
90170-06010-00 |
from US $1.84 |
||
|
17
|
17
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.56 |
||
|
18
|
18
4GB-83973-00-00 Switch, Handle 3 |
4GB-83973-00-00 |
from US $129.33 |
||
| replacement | |||||
|
18
|
18
4GB-83973-09-00 Switch, Handle 3 |
4GB-83973-09-00 |
from US $125.92 |
||
