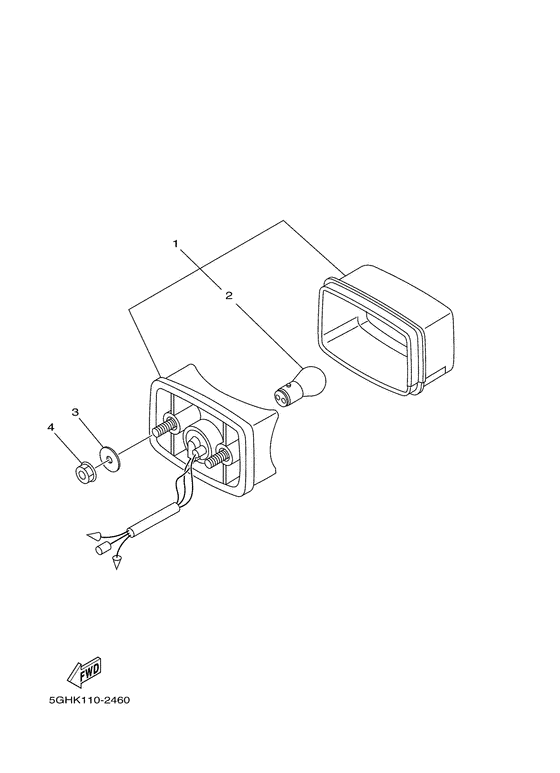

Taillight Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 5GHM
- Engine Capacity
- 401
- Year
- 2002
- Sales region
- France (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KM-84710-00-00 Taillight Unit Assy |
5KM-84710-00-00 |
from US $48.08 |
||
| replacement | |||||
|
01
|
01
5KM-84710-01-00 Taillight Unit Assy |
5KM-84710-01-00 |
from US $41.66 |
||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
03
|
03
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
03
|
03
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
04
|
04
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
