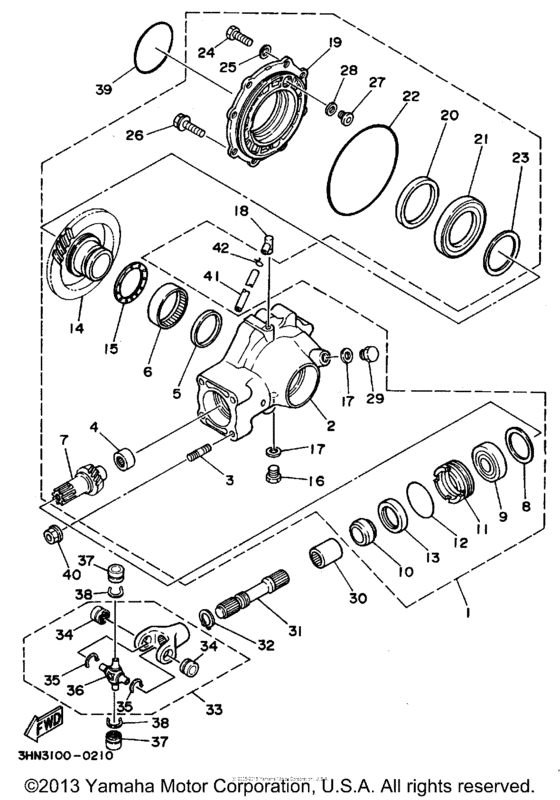

Drive shaft Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GB-46101-00-00 Rear Axle Gear Case |
4GB-46101-00-00 |
from US $1,060.70 |
||
| replacement | |||||
|
1
|
1
4GB-46101-04-00
Rear Axle Gear Case Assy
|
4GB-46101-04-00 |
— | ||
|
2
|
2
3HN-46151-00-00
Housing, Drive Shaft
|
3HN-46151-00-00 |
— | ||
| replacement | |||||
|
2
|
2
3HN-46151-01-00
Housing, Drive Shaft
|
3HN-46151-01-00 |
— | ||
|
3
|
3
90116-10428-00 Bolt, Stud |
90116-10428-00 |
from US $5.95 |
||
| replacement | |||||
|
3
|
3
90116-10361-00 Bolt, Stud |
90116-10361-00 |
from US $2 |
||
|
4
|
4
2H7-46102-00-00 Bearing Assy |
2H7-46102-00-00 |
from US $28.76 |
||
|
5
|
5
93101-52116-00 Oil Seal |
93101-52116-00 |
from US $7.51 |
||
|
6
|
6
93317-85569-00 Bearing |
93317-85569-00 |
from US $66.18 |
||
| replacement | |||||
|
6
|
6
933-17855-Y9-00 Bearing |
933-17855-Y9-00 |
from US $47.20 |
||
|
7
|
7
1YW-46121-00-00 Gear, Drive Pinion |
1YW-46121-00-00 |
from US $201.71 |
||
| replacement | |||||
|
7
|
7
1YW-46121-01-00 Gear, Drive Pinion |
1YW-46121-01-00 |
from US $144.86 |
||
|
8
|
8
1J7-17537-Y0-30 Shim, Thrust (0.30T)0.30T UR |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
8
|
8
1J7-17537-Y0-40 Shim, Thrust (0.40T)0.40T UR |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
8
|
8
1J7-17537-Y0-50 Shim, Thrust (0.50T)0.50T UR |
1J7-17537-Y0-50 |
from US $4.39 |
||
|
9
|
9
93306-30542-00 Bearing |
93306-30542-00 |
from US $54.58 |
||
| replacement | |||||
|
9
|
9
93306-30568-00 Bearing |
93306-30568-00 |
from US $67.56 |
||
|
10
|
10
90387-255H9-00 Collar |
90387-255H9-00 |
from US $10.26 |
||
|
11
|
11
29U-46125-00-00 Retainer, Bearing |
29U-46125-00-00 |
from US $38.55 |
||
|
12
|
12
93210-59531-00 O-Ring |
93210-59531-00 |
from US $5.24 |
||
|
13
|
13
93101-38098-00 Oil Seal |
93101-38098-00 |
from US $7.94 |
||
|
14
|
14
4GB-46110-00-00 Ring Gear Comp |
4GB-46110-00-00 |
from US $411.51 |
||
| replacement | |||||
|
14
|
14
4GB-Y4612-00-00 Ring Gear Set |
4GB-Y4612-00-00 |
from US $696.15 |
||
|
15
|
15
24W-46118-00-12 Washer, Thrust (1.2T)1.2T UR |
24W-46118-00-12 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-14 Washer, Thrust (1.4T)1.4T UR |
24W-46118-00-14 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-16 Washer, Thrust (1.6T)1.6T UR |
24W-46118-00-16 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-18 Washer, Thrust (1.8T)1.8T UR |
24W-46118-00-18 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-20 Washer, Thrust (2.0T)2.0T UR |
24W-46118-00-20 |
from US $14.31 |
||
|
16
|
16
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
17
|
17
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
18
|
18
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
18
|
18
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
19
|
19
3HN-46152-01-00 Housing, Bearing |
3HN-46152-01-00 |
US $157.46 |
||
|
20
|
20
93102-65277-00 Oil Seal |
93102-65277-00 |
from US $12.33 |
||
|
21
|
21
93316-01301-00 Bearing |
93316-01301-00 |
from US $74.05 |
||
|
22
|
22
93211-54698-00 O-Ring |
93211-54698-00 |
from US $9.35 |
||
|
23
|
23
24W-46117-00-25
Shim, Ring Gear (0.25T)
0.25T UR |
24W-46117-00-25 |
— | ||
|
23
|
23
24W-46117-00-30
Shim, Ring Gear (0.30T)
0.30T UR |
24W-46117-00-30 |
— | ||
|
23
|
23
24W-46117-00-40
Shim, Ring Gear (0.40T)
0.40T UR |
24W-46117-00-40 |
— | ||
|
23
|
23
24W-46117-00-50
Shim, Ring Gear (0.50T)
0.50T UR |
24W-46117-00-50 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
0.50T UR |
999-99999-99-00 |
— | ||
|
24
|
24
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
25
|
25
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
26
|
26
95811-10045-00 Bolt, Flange (3R4) |
95811-10045-00 |
from US $2.55 |
||
| replacement | |||||
|
26
|
26
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
27
|
27
1FK-46156-00-00 Stopper, Ring Gear |
1FK-46156-00-00 |
from US $11.33 |
||
|
28
|
28
1FK-46157-00-15 Shim, Stopper (T=0.15)UR |
1FK-46157-00-15 |
from US $2.13 |
||
|
28
|
28
1FK-46157-00-20 Shim, Stopper (T=0.20)UR |
1FK-46157-00-20 |
from US $2.13 |
||
|
28
|
28
1FK-46157-00-30
Shim, Stopper
UR |
1FK-46157-00-30 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
UR |
999-99999-99-00 |
— | ||
|
28
|
28
1FK-46157-00-40 Shim, StopperUR |
1FK-46157-00-40 |
US $1.22 |
||
|
29
|
29
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
30
|
30
2HR-46123-00-00 Coupling, Gear |
2HR-46123-00-00 |
from US $27.77 |
||
|
31
|
31
2HR-46172-01-00 Shaft, Drive |
2HR-46172-01-00 |
from US $46.52 |
||
|
32
|
32
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
33
|
33
1YW-46180-00-00 Cross Joint Comp |
1YW-46180-00-00 |
from US $226.61 |
||
| replacement | |||||
|
33
|
33
1YW-46180-02-00 Cross Joint Comp |
1YW-46180-02-00 |
from US $161.33 |
||
|
34
|
34
93399-99938-00 Bearing |
93399-99938-00 |
from US $24.37 |
||
| replacement | |||||
|
34
|
34
93399-99952-00 Bearing |
93399-99952-00 |
from US $17.63 |
||
|
35
|
35
93440-23165-00 Circlip |
93440-23165-00 |
from US $1.54 |
||
|
36
|
36
1YW-46187-00-00 Spider |
1YW-46187-00-00 |
from US $107.57 |
||
|
37
|
37
93399-99938-00 Bearing |
93399-99938-00 |
from US $24.37 |
||
| replacement | |||||
|
37
|
37
93399-99952-00 Bearing |
93399-99952-00 |
from US $17.63 |
||
|
38
|
38
93440-23165-00 Circlip |
93440-23165-00 |
from US $1.54 |
||
|
39
|
39
93210-85706-00 O-Ring |
93210-85706-00 |
from US $4.96 |
||
|
40
|
40
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
40
|
40
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
40
|
40
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
41
|
41
90445-074F6-00 Hose (L1700) |
90445-074F6-00 |
from US $11.05 |
||
| replacement | |||||
|
41
|
41
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
42
|
42
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
