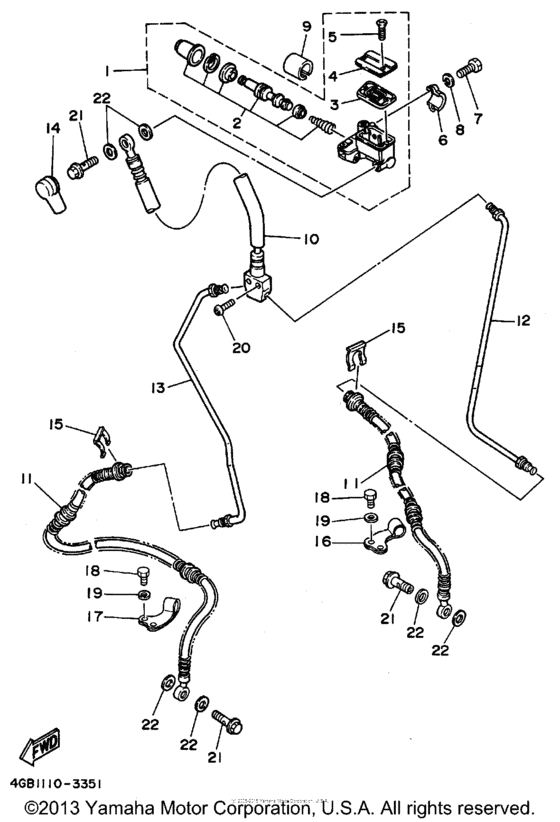

Front master cylinder Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GU-25850-00-00 Master Cyl. Assy |
2GU-25850-00-00 |
from US $226.58 |
||
| replacement | |||||
|
1
|
1
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
2
|
2
4H7-W0041-50-00 Cylinder Kit, Master |
4H7-W0041-50-00 |
from US $49.18 |
||
|
3
|
3
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
4
|
4
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
1UY-26259-00-00 Collar |
1UY-26259-00-00 |
from US $1.70 |
||
|
10
|
10
999-99025-24-00
Brake Hose Set (3Hn-25872-10-00
3HN-25872-10-00 |
999-99025-24-00 |
— | ||
|
10
|
10
3HN-25872-11-00 Hose, Brake 1 |
3HN-25872-11-00 |
US $167.80 |
||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
3HN-25873-01-00
Hose,brake 2
|
3HN-25873-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99025-26-00
Brake Hose Set(3Hn)
|
999-99025-26-00 |
— | ||
|
12
|
12
2HR-25871-00-00
Pipe, Brake
|
2HR-25871-00-00 |
— | ||
|
13
|
13
2HR-25882-00-00 Pipe, Brake 2 |
2HR-25882-00-00 |
US $30.02 |
||
|
14
|
14
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
14
|
14
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
15
|
15
2GU-25866-00-00 Circlip |
2GU-25866-00-00 |
from US $4.53 |
||
|
16
|
16
4GB-25875-00-00 Holder, Brake Hose 1 |
4GB-25875-00-00 |
from US $12.72 |
||
|
17
|
17
4GB-25876-00-00 Holder, Brake Hose 2 |
4GB-25876-00-00 |
from US $15.02 |
||
|
18
|
18
97021-06012-00 Bolt |
97021-06012-00 |
from US $1.21 |
||
| replacements | |||||
|
18
|
18
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
18
|
18
970-27060-12-00
Bolt, Hexagon
|
970-27060-12-00 |
— | ||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
20
|
20
92011-08025-00 Screw |
92011-08025-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
92014-08025-00 Bolt, Button Head |
92014-08025-00 |
from US $1.56 |
||
|
21
|
21
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
21
|
21
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
22
|
22
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
