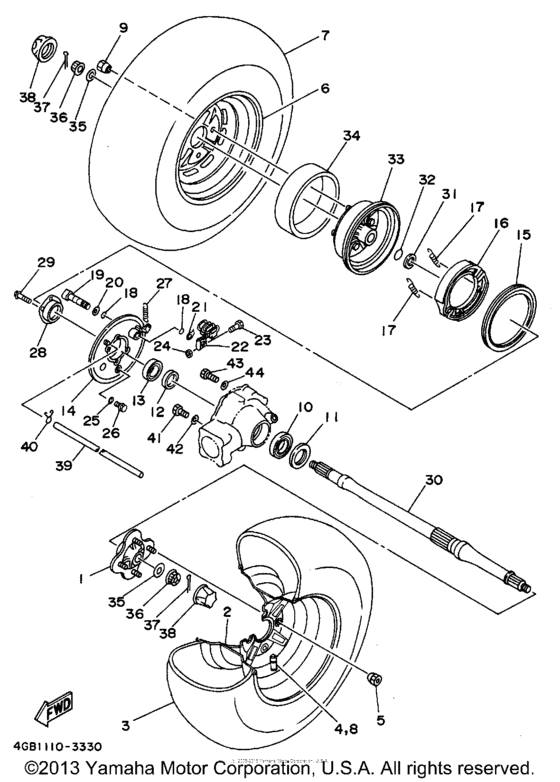

Rear wheel Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2HR-25383-00-00 Collar, Wheel |
2HR-25383-00-00 |
from US $138.16 |
||
| replacements | |||||
|
1
|
1
4WV-25383-00-00 Collar, Wheel |
4WV-25383-00-00 |
from US $147.83 |
||
|
1
|
1
2HR-25383-01-00 Collar, Wheel |
2HR-25383-01-00 |
from US $138.16 |
||
|
2
|
2
4GB-25390-00-3H Rear Wheel Comp |
4GB-25390-00-3H |
US $265.64 |
||
| replacement | |||||
|
2
|
2
4KB-25390-01-3H Rear Wheel Comp |
4KB-25390-01-3H |
US $265.43 |
||
|
3
|
3
94110-126Y5-00
Tire (At25X10-12 Kt406)
|
94110-126Y5-00 |
— | ||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
6
|
6
4GB-25390-00-3H Rear Wheel Comp |
4GB-25390-00-3H |
US $265.64 |
||
| replacement | |||||
|
6
|
6
4KB-25390-01-3H Rear Wheel Comp |
4KB-25390-01-3H |
US $265.43 |
||
|
7
|
7
94110-126Y5-00
Tire (At25X10-12 Kt406)
|
94110-126Y5-00 |
— | ||
|
8
|
8
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
9
|
9
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
10
|
10
933-06008-05-00
Bearing
|
933-06008-05-00 |
— | ||
| replacement | |||||
|
10
|
10
93306-00809-00 BEARING |
93306-00809-00 |
from US $49.46 |
||
|
11
|
11
93102-46377-00 Oil Seal |
93102-46377-00 |
from US $14.31 |
||
|
12
|
12
93101-35097-00 Oil Seal |
93101-35097-00 |
from US $6.96 |
||
|
13
|
13
933-06205-31-00 Bearing |
933-06205-31-00 |
from US $36.89 |
||
|
14
|
14
4GB-25321-00-00 Plate, Brake Shoe |
4GB-25321-00-00 |
from US $296.54 |
||
| replacement | |||||
|
14
|
14
4SH-25321-00-00 Plate, Brake Shoe |
4SH-25321-00-00 |
US $252.43 |
||
|
15
|
15
3GH-25129-00-00 Seal, Plate Dust |
3GH-25129-00-00 |
from US $103.32 |
||
| replacement | |||||
|
15
|
15
3GH-25129-10-00 Seal, Plate Dust |
3GH-25129-10-00 |
from US $127.11 |
||
|
16
|
16
4GB-W2536-00-00 Brake Shoe Kit |
4GB-W2536-00-00 |
from US $75.02 |
||
| replacement | |||||
|
16
|
16
4WV-W253E-01-00 Brake Shoe Kit |
4WV-W253E-01-00 |
from US $75.02 |
||
|
17
|
17
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
18
|
18
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
18
|
18
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
19
|
19
4GB-25351-00-00 Camshaft |
4GB-25351-00-00 |
US $59.26 |
||
| replacement | |||||
|
19
|
19
4WV-25351-00-00
Camshaft
|
4WV-25351-00-00 |
— | ||
|
20
|
20
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
21
|
21
3Y6-2533A-01-00 Plate, Indicator |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
21
|
21
5AD-F533A-00-00
Plate, Indicator
|
5AD-F533A-00-00 |
— | ||
|
22
|
22
4GB-25355-00-00 Lever, Camshaft |
4GB-25355-00-00 |
from US $80.42 |
||
| replacement | |||||
|
22
|
22
4GB-25355-01-00 Lever, Camshaft |
4GB-25355-01-00 |
from US $80.42 |
||
|
23
|
23
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
24
|
24
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
25
|
25
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
26
|
26
95023-10016-00 Bolt, Flange |
95023-10016-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
95027-10016-00 Bolt, Flange |
95027-10016-00 |
from US $1.56 |
||
|
27
|
27
90506-16482-00 Spring, Tension |
90506-16482-00 |
from US $2.66 |
||
|
28
|
28
4GB-46513-00-00 Retainer |
4GB-46513-00-00 |
from US $28.93 |
||
|
29
|
29
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
29
|
29
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
30
|
30
4GB-25381-00-00 Axle,wheel Kit |
4GB-25381-00-00 |
from US $519.14 |
||
| replacement | |||||
|
30
|
30
999-99028-52-00 Axle Wheel Rr (4Gb) |
999-99028-52-00 |
from US $519.14 |
||
|
31
|
31
90387-284T0-00 Collar |
90387-284T0-00 |
from US $8.93 |
||
|
32
|
32
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
33
|
33
4GB-2531E-00-00 Drum, Brake |
4GB-2531E-00-00 |
from US $346.78 |
||
|
34
|
34
4GB-25336-00-00 Ring 2 |
4GB-25336-00-00 |
from US $137.47 |
||
|
35
|
35
90201-162L6-00 Washer, Plate |
90201-162L6-00 |
from US $12.33 |
||
|
36
|
36
90171-16048-00 Nut, Castle |
90171-16048-00 |
from US $16.31 |
||
| replacement | |||||
|
36
|
36
90171-16001-00 Nut, Castle |
90171-16001-00 |
from US $17.43 |
||
|
37
|
37
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
37
|
37
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
38
|
38
52H-2512A-00-00 Cap, Wheel |
52H-2512A-00-00 |
from US $13.32 |
||
|
39
|
39
90445-095H3-00 Hose (L675) |
90445-095H3-00 |
from US $19.84 |
||
| replacement | |||||
|
39
|
39
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
40
|
40
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
41
|
41
91021-10025-00 Bolt, Flange |
91021-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
41
|
41
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
42
|
42
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
43
|
43
95811-10030-00 Bolt, Flange (95812-10030-00) |
95811-10030-00 |
from US $1.07 |
||
| replacement | |||||
|
43
|
43
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
44
|
44
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
