Seat Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?

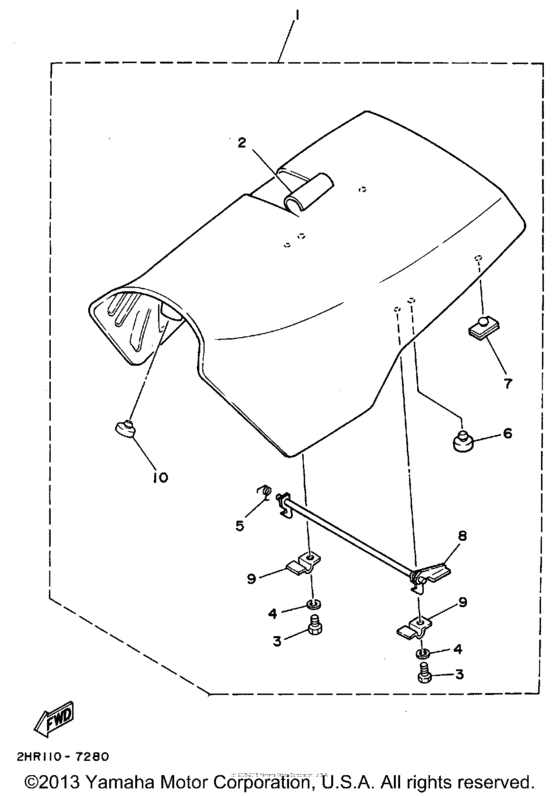

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-24710-D0-00
Single Seat Assy
UR YAMAHA BLACK |
3HN-24710-D0-00 |
— | ||
|
1
|
1
3HN-24710-E0-00
Single Seat Assy
UR YAMAHA BLACK |
3HN-24710-E0-00 |
— | ||
| replacement | |||||
|
1
|
1
3HN-24710-D0-00
Single Seat Assy
UR YAMAHA BLACK |
3HN-24710-D0-00 |
— | ||
|
2
|
2
3HN-24731-D0-00
Cover, Seat
UR YAMAHA BLACK |
3HN-24731-D0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
UR YAMAHA BLACK |
999-99999-99-00 |
— | ||
|
2
|
2
3HN-24731-E0-00
Cover, Seat
UR YAMAHA BLACK |
3HN-24731-E0-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
UR YAMAHA BLACK |
999-99999-99-00 |
— | ||
|
3
|
3
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
90508-23567-00 Spring, Torsion |
90508-23567-00 |
from US $3.54 |
||
|
6
|
6
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
7
|
7
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
8
|
8
59V-24776-00-00 Lever, Seat |
59V-24776-00-00 |
from US $21.30 |
||
| replacement | |||||
|
8
|
8
59V-24776-01-00 Lever, Seat |
59V-24776-01-00 |
from US $21.30 |
||
|
9
|
9
59V-24775-00-00 Bracket, Seat Lever |
59V-24775-00-00 |
from US $2.99 |
||
|
10
|
10
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
