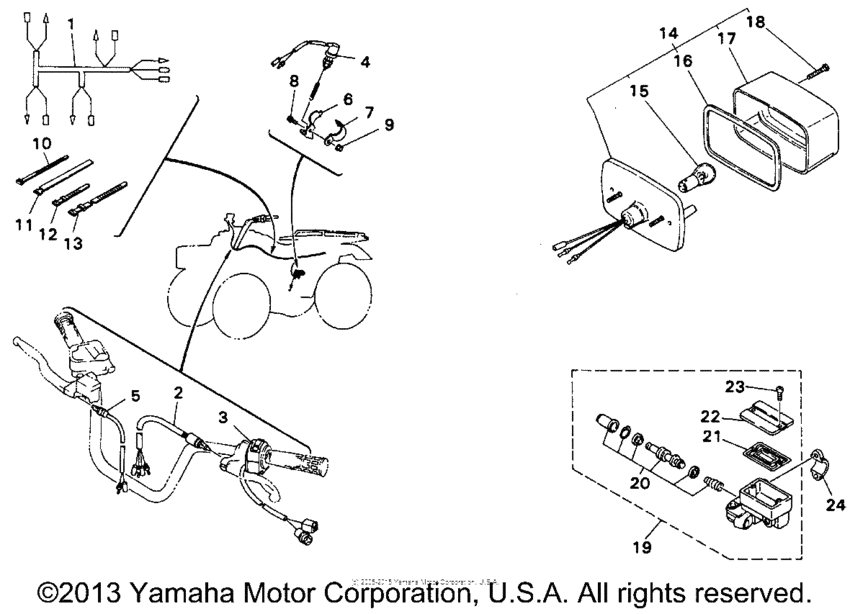

Taillight kit (Maine & new hampshire) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-82509-00-00
Wire, Sub Lead
|
3HN-82509-00-00 |
— | ||
|
2
|
2
3HN-83980-00-00 Stop Switch Assy |
3HN-83980-00-00 |
US $110.61 |
||
|
3
|
3
4GB-83973-10-00
Switch, Handle 3
|
4GB-83973-10-00 |
— | ||
|
4
|
4
4GB-82530-00-00
Stop Switch Assy
|
4GB-82530-00-00 |
— | ||
| replacements | |||||
|
4
|
4
4BD-82530-02-00
LEVER HOLDER ASSY 2
|
4BD-82530-02-00 |
— | ||
|
4
|
4
4BD-82530-01-00
Stop Switch Assy
|
4BD-82530-01-00 |
— | ||
|
5
|
5
3GD-83980-00-00
Front Stop Switch Assembly
|
3GD-83980-00-00 |
— | ||
|
6
|
6
3HN-21441-00-00
Bracket, Stop
|
3HN-21441-00-00 |
— | ||
|
7
|
7
3HN-2144G-00-00
Stay, Stop
|
3HN-2144G-00-00 |
— | ||
|
8
|
8
95816-06016-00 Bolt, Flange(52G) |
95816-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
9
|
9
95606-06200-00 Nut, U Flange |
95606-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
10
|
10
1UY-82591-00-00
Clamp
|
1UY-82591-00-00 |
— | ||
|
11
|
11
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
11
|
11
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
13
|
13
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
14
|
14
3HN-84710-20-00
Taillight Unit Assy
|
3HN-84710-20-00 |
— | ||
|
15
|
15
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
15
|
15
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
15
|
15
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
from US $4.53 |
||
|
16
|
16
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $4.64 |
||
|
17
|
17
21V-84721-00-00 Lens, Taillight |
21V-84721-00-00 |
from US $32.87 |
||
|
18
|
18
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
19
|
19
3HN-2583T-00-00 Master Cyl. Assy |
3HN-2583T-00-00 |
from US $226.58 |
||
| replacement | |||||
|
19
|
19
2GU-25870-10-00 Master Cylinder Sub Assy |
2GU-25870-10-00 |
from US $164.94 |
||
|
20
|
20
4H7-W0041-50-00 Cylinder Kit, Master |
4H7-W0041-50-00 |
from US $49.18 |
||
|
21
|
21
4L0-25854-00-00 Gasket, Diaphragm |
4L0-25854-00-00 |
from US $15.58 |
||
|
22
|
22
4H7-25852-00-00 Cap, Reservoir |
4H7-25852-00-00 |
from US $22.10 |
||
|
23
|
23
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
23
|
23
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.34 |
||
|
24
|
24
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
