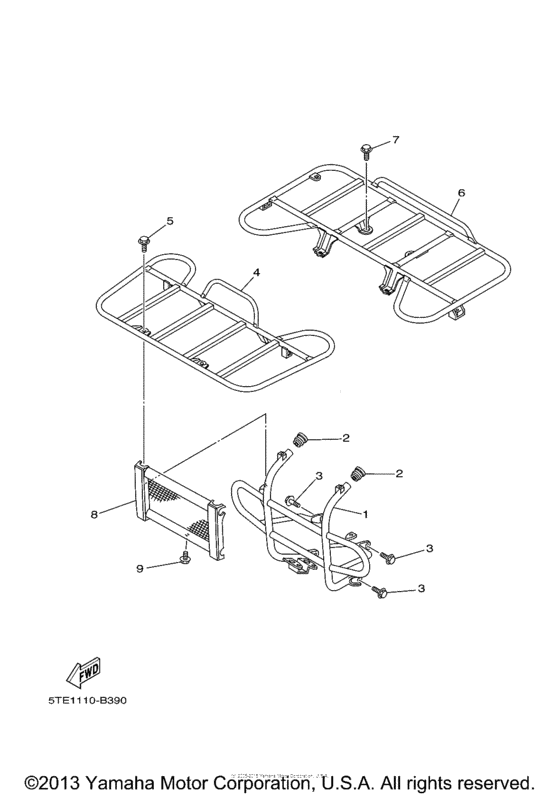

Guard Diagram Yamaha KODIAK 400 Kodiak 400 2WD
- Model code
- YFM400AR
- Engine Capacity
- 401
- Year
- 2003
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Kodiak 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ND-F845N-00-00
Bar, Carry Front
|
5ND-F845N-00-00 |
— | ||
|
2
|
2
4XE-F1399-00-00 CapCap, tool box |
4XE-F1399-00-00 |
US $1.06 |
||
|
3
|
3
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
5ND-F4841-00-00 Carrier, Front |
5ND-F4841-00-00 |
US $264.47 |
||
| replacement | |||||
|
4
|
4
5ND-F4841-01-00 Carrier, Front |
5ND-F4841-01-00 |
US $376.63 |
||
|
5
|
5
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
5TE-F4842-00-00 Carrier, Rear |
5TE-F4842-00-00 |
US $630.38 |
||
|
7
|
7
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
7
|
7
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
8
|
8
5TE-F842A-00-00 Cover 5 |
5TE-F842A-00-00 |
US $61.11 |
||
|
9
|
9
90119-06079-00 Bolt, With Washer |
90119-06079-00 |
from US $1.56 |
||
