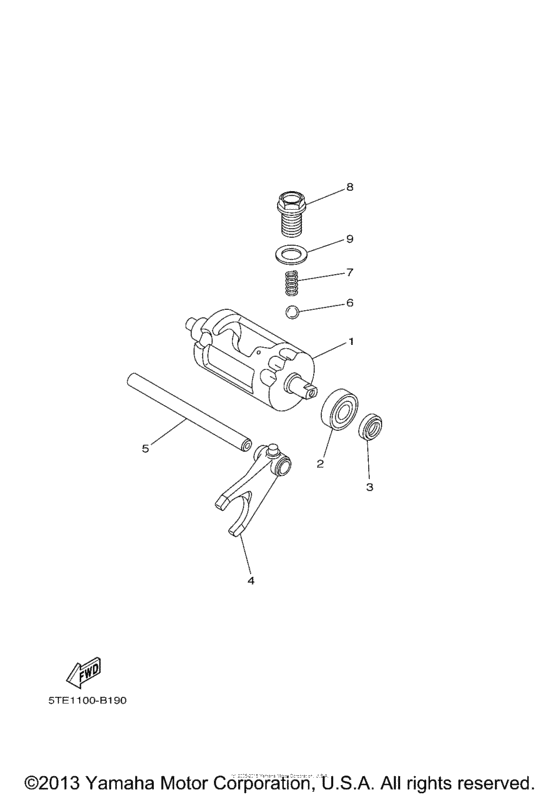

Shift Cam & Fork Diagram Yamaha KODIAK 400 Kodiak 400 2WD
- Model code
- YFM400AR
- Engine Capacity
- 401
- Year
- 2003
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Kodiak 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TE-18541-00-00 Cam, Shift |
5TE-18541-00-00 |
US $141.25 |
||
|
2
|
2
93306-00208-00 Bearing |
93306-00208-00 |
from US $13.32 |
||
|
3
|
3
931-02152-12-00 Oil Seal |
931-02152-12-00 |
from US $4.30 |
||
|
4
|
4
5GH-18511-00-00 Fork, Shift 1 |
5GH-18511-00-00 |
US $69.48 |
||
|
5
|
5
4KB-18531-01-00 Bar, Shift Fork Guide 1 |
4KB-18531-01-00 |
from US $19.39 |
||
|
6
|
6
935-03080-07-00 Ball |
935-03080-07-00 |
from US $1.84 |
||
|
7
|
7
90501-10353-00 Spring, Compression |
90501-10353-00 |
from US $1.66 |
||
|
8
|
8
90105-14367-00 Bolt, Flange |
90105-14367-00 |
from US $4.82 |
||
|
9
|
9
90430-14042-00 Gasket |
90430-14042-00 |
from US $1.13 |
||
| replacement | |||||
|
9
|
9
904-30140-43-00 Gasket |
904-30140-43-00 |
from US $1.13 |
||
