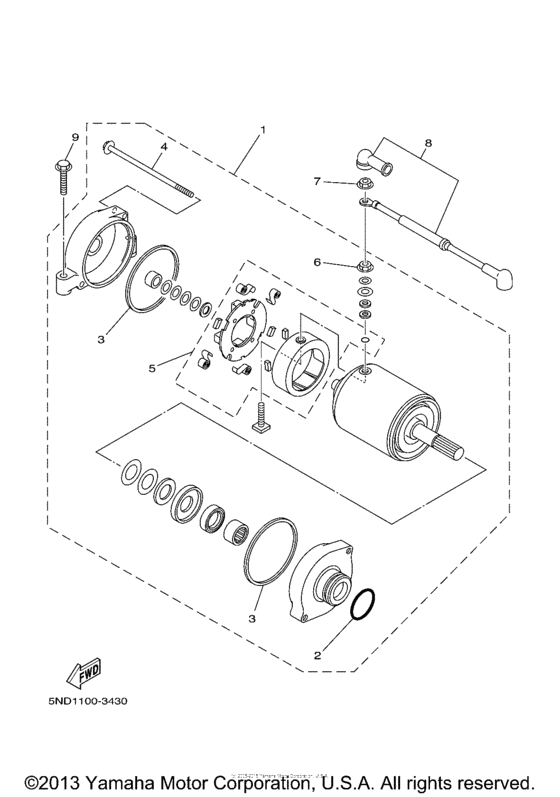

Starting motor Diagram Yamaha KODIAK 400 Kodiak 400 2WD
- Model code
- YFM400AR
- Engine Capacity
- 401
- Year
- 2003
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Kodiak 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KM-81890-00-00 Motor Assy |
5KM-81890-00-00 |
from US $316.48 |
||
|
2
|
2
1FK-81847-00-00
O-Ring
|
1FK-81847-00-00 |
— | ||
| replacement | |||||
|
2
|
2
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $2.98 |
||
|
3
|
3
11H-81844-00-00
Gasket
|
11H-81844-00-00 |
— | ||
| replacement | |||||
|
3
|
3
35C-81844-00-00 Gasket |
35C-81844-00-00 |
from US $20.97 |
||
|
4
|
4
3AJ-81826-00-00 Bolt |
3AJ-81826-00-00 |
from US $12.61 |
||
|
5
|
5
3AJ-81801-00-00 Brush Set |
3AJ-81801-00-00 |
from US $59.55 |
||
|
6
|
6
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
7
|
7
4XV-8182A-00-00 Nut |
4XV-8182A-00-00 |
from US $1.98 |
||
|
8
|
8
5ND-H1815-00-00
Cord, Starter Motor
|
5ND-H1815-00-00 |
— | ||
|
9
|
9
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.34 |
||
