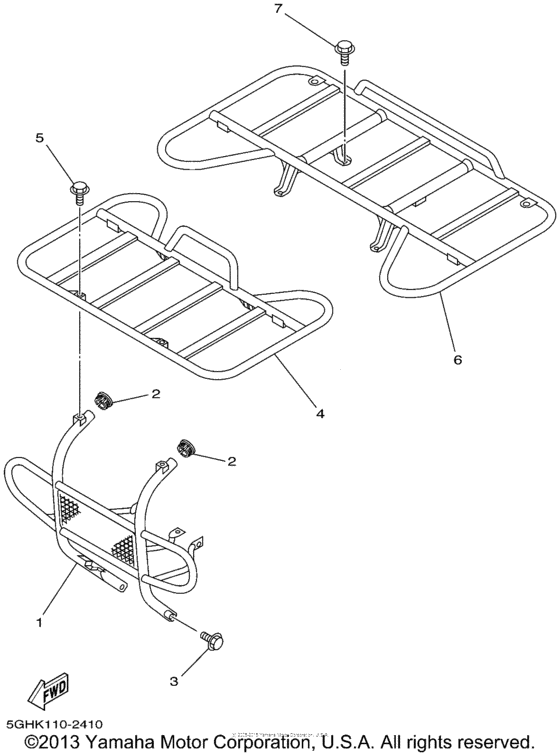

Guard Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FAP
- Engine Capacity
- 401
- Year
- 2002
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-2845N-50-00
Bar, Carry Front(Titanic Gray)
|
5GH-2845N-50-00 |
— | ||
|
2
|
2
5KM-2482H-00-00
Cap
|
5KM-2482H-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5KM-2482H-01-00 Cap |
5KM-2482H-01-00 |
from US $3.83 |
||
|
3
|
3
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
4
|
4
5GH-24841-00-00
Carrier, Front
|
5GH-24841-00-00 |
— | ||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
5GH-24842-00-00
Carrier, Rear
|
5GH-24842-00-00 |
— | ||
|
7
|
7
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
