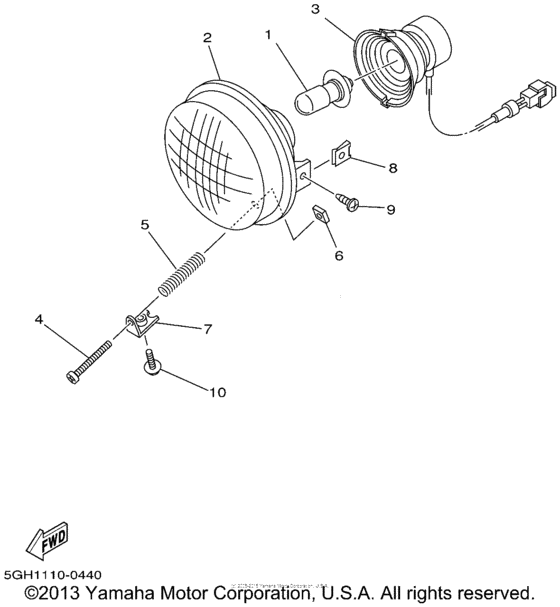

Headlight Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FAP
- Engine Capacity
- 401
- Year
- 2002
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KB-84314-00-00 Bulb (12V-30/30W)12V-30/30W |
4KB-84314-00-00 |
from US $25.36 |
||
| replacement | |||||
|
1
|
1
4KB-84314-01-00 Bulb (12V-30/30W)12V-30/30W |
4KB-84314-01-00 |
from US $20.84 |
||
|
2
|
2
5KM-84320-00-00 Lens Assy |
5KM-84320-00-00 |
from US $70.32 |
||
| replacement | |||||
|
2
|
2
5KM-84320-01-00 Lens Assy |
5KM-84320-01-00 |
from US $34.72 |
||
|
3
|
3
5EH-84340-00-00 Socket Cord Assy 1 |
5EH-84340-00-00 |
from US $38.02 |
||
|
4
|
4
98507-03540-00 Screw, Pan Head |
98507-03540-00 |
from US $1.34 |
||
|
5
|
5
2GU-84332-00-00 Spring, Screw |
2GU-84332-00-00 |
from US $1.66 |
||
|
6
|
6
2GU-84334-00-00 Nut, Adjusting |
2GU-84334-00-00 |
from US $1.66 |
||
|
7
|
7
5GH-84703-00-00 Bracket |
5GH-84703-00-00 |
from US $3.12 |
||
|
8
|
8
90183-05008-00 Nut, Spring |
90183-05008-00 |
from US $2.55 |
||
|
9
|
9
90154-05004-00 Screw, C.r. Binding (2T4) |
90154-05004-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
10
|
10
90159-05022-00 Screw, With Washer |
90159-05022-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90159-05044-00 Screw, With Washer |
90159-05044-00 |
from US $1.70 |
||
