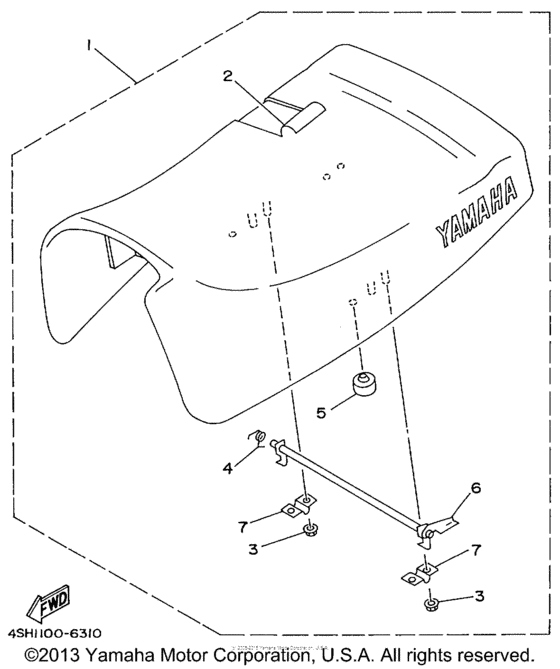

Seat Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWBL
- Engine Capacity
- 401
- Year
- 1999
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SH-24710-20-00
Single Seat Assembly
|
4SH-24710-20-00 |
— | ||
| replacement | |||||
|
1
|
1
4SH-24710-21-00
Single Seat Assy
|
4SH-24710-21-00 |
— | ||
|
2
|
2
4SH-24731-20-00 Cover, Seat |
4SH-24731-20-00 |
US $203.58 |
||
| replacement | |||||
|
2
|
2
4SH-24731-21-00 Cover, Seat |
4SH-24731-21-00 |
US $203.58 |
||
|
3
|
3
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
4
|
4
90508-23567-00 Spring, Torsion |
90508-23567-00 |
from US $3.54 |
||
|
5
|
5
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
6
|
6
59V-24776-01-00 Lever, Seat |
59V-24776-01-00 |
from US $21.30 |
||
|
7
|
7
59V-24775-00-00 Bracket, Seat Lever |
59V-24775-00-00 |
from US $2.99 |
||
