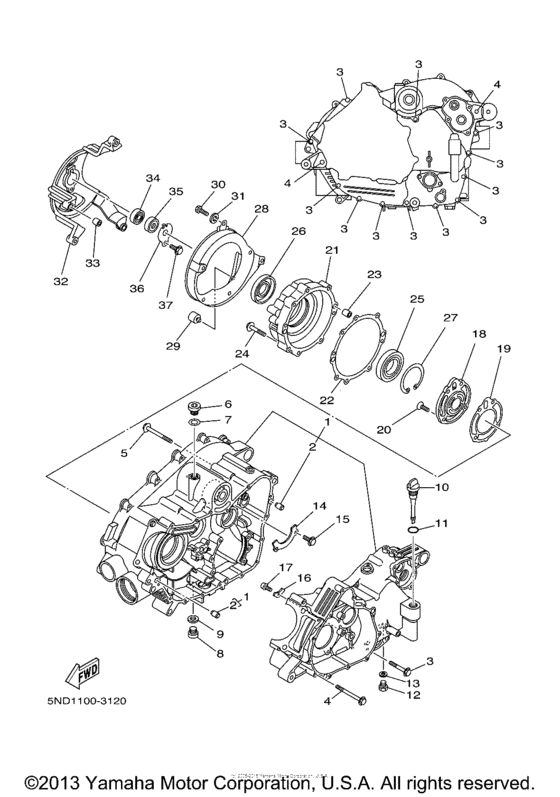

Crankcase Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1P1-15100-00-00
Crankcase Assy
|
1P1-15100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1P1-15100-03-00 Crankcase Assy |
1P1-15100-03-00 |
US $1,385.08 |
||
|
2
|
2
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
2
|
2
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
2
|
2
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
3
|
3
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
4
|
4
95027-06065-00 Bolt, Flange |
95027-06065-00 |
from US $1.50 |
||
|
5
|
5
95027-06065-00 Bolt, Flange |
95027-06065-00 |
from US $1.50 |
||
|
6
|
6
90340-18101-00 Plug, Straight Screw |
90340-18101-00 |
from US $7.51 |
||
|
7
|
7
90430-18130-00 Gasket |
90430-18130-00 |
from US $2.69 |
||
|
8
|
8
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
8
|
8
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.64 |
||
|
9
|
9
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
10
|
10
5GH-15362-00-00 Plug, Oil Level |
5GH-15362-00-00 |
from US $11.05 |
||
|
11
|
11
93210-19026-00 O-Ring |
93210-19026-00 |
from US $1.84 |
||
|
12
|
12
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
14
|
14
5GH-15388-00-00 Plate, Bearing Cover |
5GH-15388-00-00 |
from US $5.10 |
||
|
15
|
15
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
16
|
16
2K7-15383-00-00 Plate, Bearing Cover |
2K7-15383-00-00 |
from US $7.88 |
||
| replacement | |||||
|
16
|
16
4XM-15383-00-00 Plate, Bearing Cover |
4XM-15383-00-00 |
from US $9.07 |
||
|
17
|
17
90151-06014-00 Screw, Countersunk (4H7) |
90151-06014-00 |
from US $2.13 |
||
|
18
|
18
5GH-15414-00-00 Cover, Air Cleaner |
5GH-15414-00-00 |
from US $67.56 |
||
|
19
|
19
5GH-15454-00-00 Gasket 1 |
5GH-15454-00-00 |
from US $6.94 |
||
|
20
|
20
98707-06020-00 Screw, Flat Head |
98707-06020-00 |
from US $1.56 |
||
|
21
|
21
5GH-15163-00-00 Housing, Bearing 1 |
5GH-15163-00-00 |
from US $83.72 |
||
|
22
|
22
5GH-15463-00-00 Gasket, Cover Pinion 2 |
5GH-15463-00-00 |
from US $7.62 |
||
|
23
|
23
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
24
|
24
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.28 |
||
|
25
|
25
93316-01003-00 Bearing |
93316-01003-00 |
from US $56.88 |
||
|
26
|
26
93102-32483-00 Oil Seal |
93102-32483-00 |
from US $10.92 |
||
|
27
|
27
99009-80500-00 Circlip |
99009-80500-00 |
from US $5.81 |
||
| replacement | |||||
|
27
|
27
93420-80066-00 Circlip (70R) |
93420-80066-00 |
from US $5.81 |
||
|
28
|
28
5GH-15333-00-00 Cover |
5GH-15333-00-00 |
from US $36.06 |
||
|
29
|
29
5GH-15338-00-00 Damper 5 |
5GH-15338-00-00 |
from US $3.40 |
||
|
30
|
30
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
32
|
32
5GH-15442-00-00 Housing, Bearing |
5GH-15442-00-00 |
from US $104.59 |
||
| replacement | |||||
|
32
|
32
5GH-15442-01-00 Housing, Bearing |
5GH-15442-01-00 |
from US $104.59 |
||
|
33
|
33
91810-20001-00 Pin, Dowel |
91810-20001-00 |
from US $1.84 |
||
|
34
|
34
93306-20120-00 Bearing(3Dl) |
93306-20120-00 |
from US $18.14 |
||
| replacements | |||||
|
34
|
34
93306-20117-00 Bearing |
93306-20117-00 |
from US $18.14 |
||
|
34
|
34
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $11.58 |
||
|
35
|
35
931-01121-68-00 Oil Seal |
931-01121-68-00 |
from US $3.32 |
||
|
36
|
36
4WV-15381-00-00 Plate, Bearing Cover |
4WV-15381-00-00 |
from US $4.96 |
||
|
37
|
37
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
