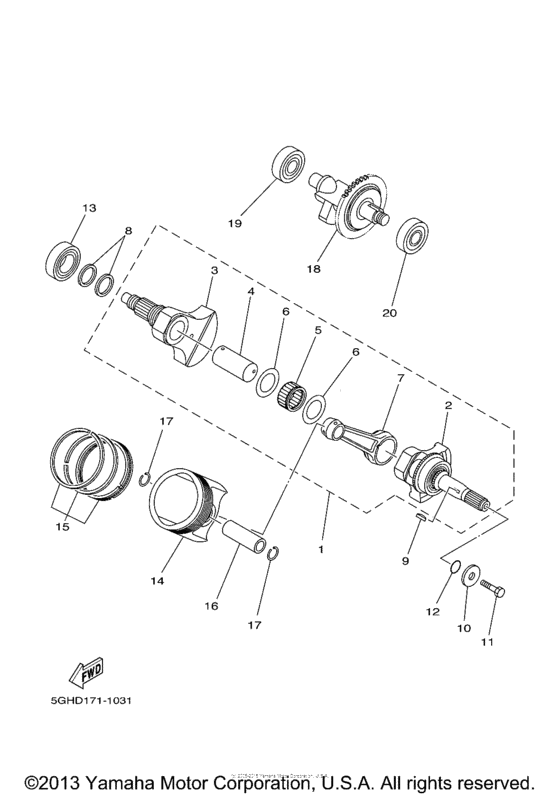

Crankshaft & Piston Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-11400-10-00 Crankshaft Assy |
5GH-11400-10-00 |
from US $745.36 |
||
|
2
|
2
5GH-W1141-10-00 Crank Sub Assy 1 |
5GH-W1141-10-00 |
from US $395.39 |
||
| replacement | |||||
|
2
|
2
5GH-11401-09-00 element |
5GH-11401-09-00 |
from US $330.32 |
||
|
3
|
3
5GH-W1142-00-00
Crank Sub Assy 2
|
5GH-W1142-00-00 |
— | ||
| replacement | |||||
|
3
|
3
5GH-11402-09-00 CRANK SUB ASSY 2 |
5GH-11402-09-00 |
from US $216.57 |
||
|
4
|
4
5GH-11681-00-00 Pin, Crank 1 |
5GH-11681-00-00 |
from US $34.40 |
||
|
5
|
5
93310-635D4-00 Bearing |
93310-635D4-00 |
from US $64.94 |
||
|
6
|
6
90201-356K1-00 Washer, Plate |
90201-356K1-00 |
from US $4.30 |
||
|
7
|
7
5GH-11651-01-00 Rod, Connecting |
5GH-11651-01-00 |
from US $105.55 |
||
|
8
|
8
5GH-11447-00-00 Seal, Crank |
5GH-11447-00-00 |
from US $20.50 |
||
|
9
|
9
902-80050-48-00
Key, Woodruff
|
902-80050-48-00 |
— | ||
| replacement | |||||
|
9
|
9
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
10
|
10
90201-10321-00 Washer, Plate |
90201-10321-00 |
from US $2.69 |
||
|
11
|
11
90101-10568-00 Bolt (21V) |
90101-10568-00 |
from US $4.53 |
||
|
12
|
12
93210-16290-00 O-Ring |
93210-16290-00 |
from US $1.70 |
||
|
13
|
13
93306-30629-00 Bearing |
93306-30629-00 |
from US $50.29 |
||
|
14
|
14
5GH-11638-00-00 Piston (1.00Mm O/s)1.00MM O/S AP |
5GH-11638-00-00 |
from US $116.75 |
||
|
14
|
14
5GH-11631-00-00 Piston (Std) |
5GH-11631-00-00 |
from US $104.31 |
||
|
14
|
14
5GH-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S AP |
5GH-11636-00-00 |
from US $104.31 |
||
|
15
|
15
5GH-11603-00-00 Piston Ring Set (Std) |
5GH-11603-00-00 |
from US $66.32 |
||
|
15
|
15
5GH-11607-00-00 Piston Ring Set (1.00Mm O/s)1.00MM O/S AP |
5GH-11607-00-00 |
from US $73.64 |
||
|
15
|
15
5GH-11605-00-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S AP |
5GH-11605-00-00 |
from US $66.32 |
||
|
16
|
16
3LD-11633-00-00 Pin, Piston |
3LD-11633-00-00 |
from US $13.90 |
||
|
17
|
17
934-50220-27-00 Circlip |
934-50220-27-00 |
from US $1.66 |
||
|
18
|
18
5ND-11500-00-00 Balancer Assy |
5ND-11500-00-00 |
US $318.20 |
||
|
19
|
19
93306-30315-00 Bearing |
93306-30315-00 |
from US $19.55 |
||
| replacement | |||||
|
19
|
19
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
20
|
20
93306-30438-00 Bearing |
93306-30438-00 |
from US $32.44 |
||
| replacements | |||||
|
20
|
20
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $26.21 |
||
|
20
|
20
93306-30421-00 Bearing |
93306-30421-00 |
from US $32.44 |
||
