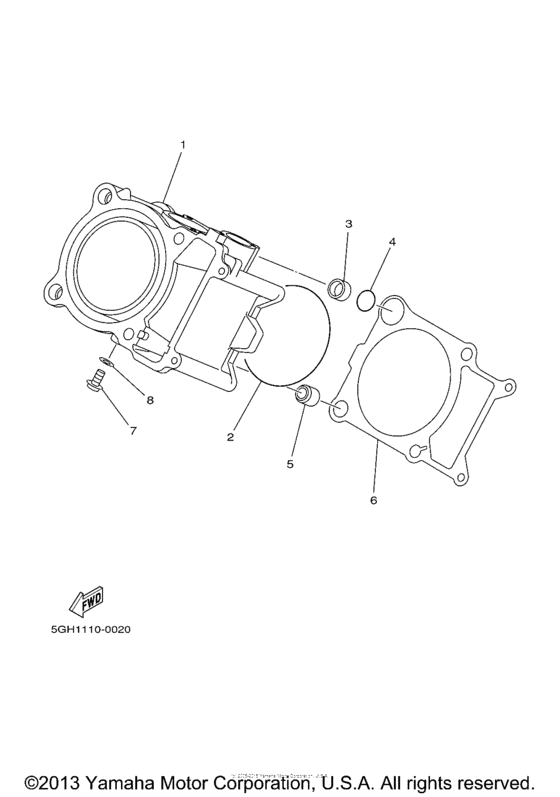

Cylinder Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-11310-00-00 Cylinder |
5GH-11310-00-00 |
from US $532.67 |
||
|
2
|
2
93210-89447-00 O/ring |
93210-89447-00 |
from US $6.80 |
||
|
3
|
3
90387-16547-00 Collar |
90387-16547-00 |
from US $2.32 |
||
|
4
|
4
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
5
|
5
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
6
|
6
5GH-11351-00-00 Gasket, Cylinder |
5GH-11351-00-00 |
from US $10.92 |
||
|
7
|
7
901-53060-29-00
Screw, Tapping
|
901-53060-29-00 |
— | ||
| replacement | |||||
|
7
|
7
90163-06002-00 Screw, Tapping |
90163-06002-00 |
from US $4.25 |
||
|
8
|
8
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
