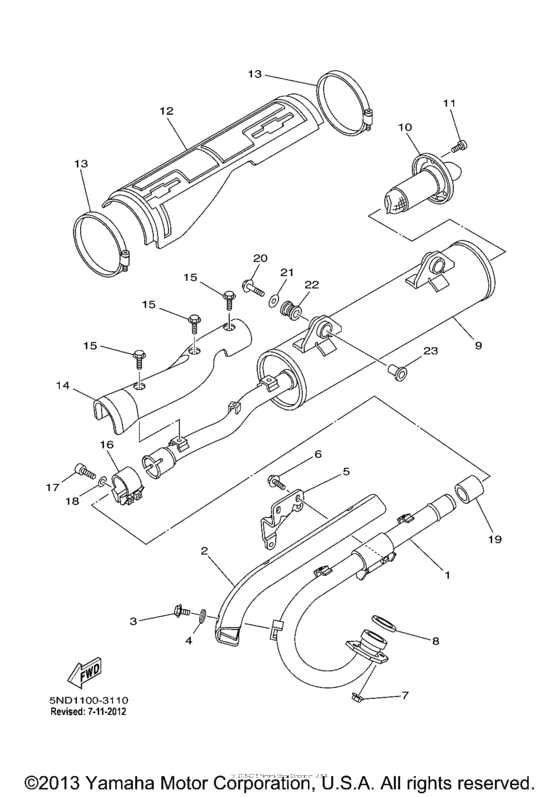

Exhaust Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ND-E4611-00-00
Pipe, Exhaust 1
YMUS |
5ND-E4611-00-00 |
— | ||
|
2
|
2
5ND-E4628-00-00 Protector, Exhaust Pipe |
5ND-E4628-00-00 |
US $92.18 |
||
|
3
|
3
958-1P060-10-00 Bolt, Flange |
958-1P060-10-00 |
US $14.02 |
||
|
4
|
4
90201-06008-00 Washer, Plate |
90201-06008-00 |
US $2.27 |
||
| replacement | |||||
|
4
|
4
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
5
|
5
5ND-E477K-01-00 Plate 1YMUS |
5ND-E477K-01-00 |
US $9.36 |
||
| replacement | |||||
|
5
|
5
5ND-E477K-02-00 Plate 1YMUS |
5ND-E477K-02-00 |
US $16.69 |
||
|
6
|
6
9581P-06016-00 Bolt, Flange |
9581P-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
7
|
7
90179-08410-00 Nut |
90179-08410-00 |
from US $1.70 |
||
|
8
|
8
3GD-14613-00-00 Gasket, Exhaust Pipe |
3GD-14613-00-00 |
from US $5.96 |
||
|
9
|
9
5ND-E4711-00-00 Muffler 1YMUS |
5ND-E4711-00-00 |
US $1,099.99 |
||
|
10
|
10
5ND-E4752-00-00 Pipe, Outlet |
5ND-E4752-00-00 |
US $139.37 |
||
|
11
|
11
5ND-E4719-00-00 Bolt, Muffler |
5ND-E4719-00-00 |
US $1.69 |
||
| replacement | |||||
|
11
|
11
91380-06010-00 Bolt |
91380-06010-00 |
from US $1.56 |
||
|
12
|
12
5ND-E4718-00-00 Protector, Muffler 1YMUS |
5ND-E4718-00-00 |
US $30.11 |
||
|
13
|
13
5ND-E4788-00-00 Band, Silencer |
5ND-E4788-00-00 |
US $21.02 |
||
|
14
|
14
5ND-E4728-00-00 Protector, Muffler 2YMUS |
5ND-E4728-00-00 |
US $73.04 |
||
|
15
|
15
9581P-06008-00 Bolt, Flange |
9581P-06008-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95817-06008-00 Bolt, Flange |
95817-06008-00 |
from US $1.56 |
||
|
16
|
16
5ND-E4715-00-00 Band, Muffler |
5ND-E4715-00-00 |
from US $17.15 |
||
|
17
|
17
5ND-E4777-00-00 Bolt |
5ND-E4777-00-00 |
US $7.43 |
||
|
18
|
18
5ND-E4759-00-00 Washer |
5ND-E4759-00-00 |
US $8.46 |
||
|
19
|
19
5ND-E4714-00-00 Gasket, Muffler |
5ND-E4714-00-00 |
from US $19.13 |
||
| replacement | |||||
|
19
|
19
3YF-14714-00-00 Gasket, Muffler |
3YF-14714-00-00 |
from US $19.13 |
||
|
20
|
20
95827-10040-00 Bolt, Flange |
95827-10040-00 |
from US $2.50 |
||
| replacements | |||||
|
20
|
20
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
20
|
20
95817-10040-00 Bolt, Flange |
95817-10040-00 |
from US $2.69 |
||
|
21
|
21
90201-106E0-00 Washer, Plate |
90201-106E0-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
22
|
22
5ND-E4737-00-00 Damper, Muffler |
5ND-E4737-00-00 |
US $11.56 |
||
|
23
|
23
90387-10636-00 Collar |
90387-10636-00 |
from US $7.79 |
||
