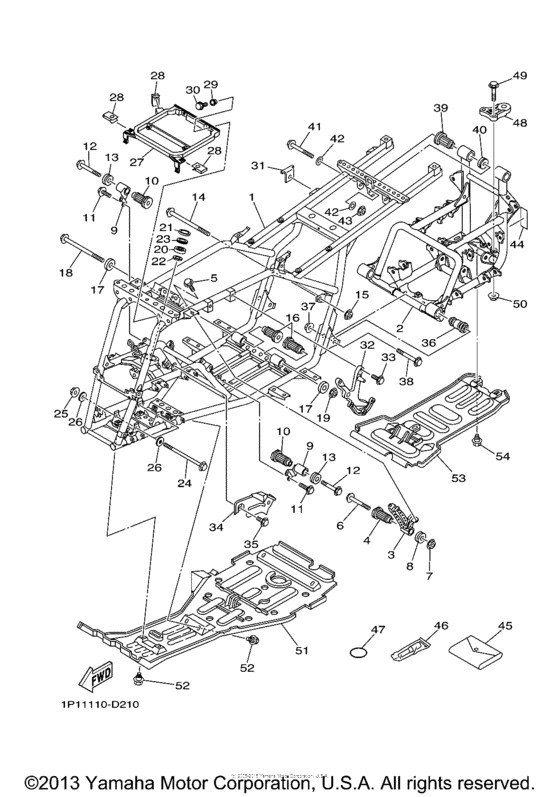

Frame Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1P1-F1110-00-00 Frame Comp |
1P1-F1110-00-00 |
US $1,330.54 |
||
| replacement | |||||
|
1
|
1
1P1-F1110-02-00 FRAME COMP |
1P1-F1110-02-00 |
US $1,291.39 |
||
|
2
|
2
1D9-F111B-00-00 Frame Sub Comp |
1D9-F111B-00-00 |
US $604.84 |
||
| replacement | |||||
|
2
|
2
1D9-F111B-11-00 Frame Sub Comp |
1D9-F111B-11-00 |
US $601.38 |
||
|
3
|
3
5ND-F1315-00-00 Stay, Engine 2YMUS |
5ND-F1315-00-00 |
US $32.69 |
||
| replacement | |||||
|
3
|
3
5ND-F1315-01-00 Stay, Engine 2YMUS |
5ND-F1315-01-00 |
US $51.73 |
||
|
4
|
4
5ND-E5336-00-00 Damper, Engine Mount 3YMUS |
5ND-E5336-00-00 |
US $12.60 |
||
|
5
|
5
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
5
|
5
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
6
|
6
95817-10110-00 Bolt, Flange(6Ta) |
95817-10110-00 |
from US $3.54 |
||
|
7
|
7
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
8
|
8
5ND-F1486-00-00 Damper 2YMUS |
5ND-F1486-00-00 |
US $12.20 |
||
|
9
|
9
5ND-F1316-00-00 Stay, Engine 3YMUS |
5ND-F1316-00-00 |
US $21.20 |
||
| replacement | |||||
|
9
|
9
5ND-F1316-01-00 Stay, Engine 3YMUS |
5ND-F1316-01-00 |
US $38.66 |
||
|
10
|
10
5ND-E5336-00-00 Damper, Engine Mount 3YMUS |
5ND-E5336-00-00 |
US $12.60 |
||
|
11
|
11
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
11
|
11
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
12
|
12
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
13
|
13
5ND-F1486-00-00 Damper 2YMUS |
5ND-F1486-00-00 |
US $12.20 |
||
|
14
|
14
90105-10055-00 Bolt, Washer Based |
90105-10055-00 |
from US $12.19 |
||
| replacement | |||||
|
14
|
14
90105-10401-00 Bolt, Flange |
90105-10401-00 |
from US $12.72 |
||
|
15
|
15
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
16
|
16
5ND-E5336-00-00 Damper, Engine Mount 3YMUS |
5ND-E5336-00-00 |
US $12.60 |
||
|
17
|
17
5ND-F1488-00-00 Damper |
5ND-F1488-00-00 |
US $4.30 |
||
|
18
|
18
90105-10055-00 Bolt, Washer Based |
90105-10055-00 |
from US $12.19 |
||
| replacement | |||||
|
18
|
18
90105-10401-00 Bolt, Flange |
90105-10401-00 |
from US $12.72 |
||
|
19
|
19
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
20
|
20
93306-203YN-00 Bearing |
93306-203YN-00 |
from US $12.60 |
||
|
21
|
21
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
22
|
22
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
23
|
23
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
24
|
24
90105-10051-00 Bolt, Flange |
90105-10051-00 |
from US $7.51 |
||
| replacement | |||||
|
24
|
24
90105-10712-00 Bolt, Flange |
90105-10712-00 |
from US $9.92 |
||
|
25
|
25
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
26
|
26
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
27
|
27
5ND-F1513-00-00 Stay, Fender 1YMUS |
5ND-F1513-00-00 |
US $13.66 |
||
|
28
|
28
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
28
|
28
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
29
|
29
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
29
|
29
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
|
30
|
30
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
31
|
31
5ND-F1446-00-00 Stay, Muffler 2YMUS |
5ND-F1446-00-00 |
US $3.38 |
||
| replacement | |||||
|
31
|
31
5ND-F1446-01-00 Stay, Muffler 2YMUS |
5ND-F1446-01-00 |
US $6.99 |
||
|
32
|
32
5ND-F1585-01-00 Arm |
5ND-F1585-01-00 |
US $49.45 |
||
|
33
|
33
95827-08020-00 Bolt, Flange |
95827-08020-00 |
from US $0.85 |
||
| replacement | |||||
|
33
|
33
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
34
|
34
5ND-F2825-00-00 Protector 1YMUS |
5ND-F2825-00-00 |
US $11.27 |
||
|
35
|
35
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
36
|
36
5ND-F2123-00-00 Bush 1YMUS |
5ND-F2123-00-00 |
from US $8.99 |
||
|
37
|
37
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
38
|
38
90105-12660-00 Bolt, Flange |
90105-12660-00 |
from US $9.63 |
||
|
39
|
39
1D9-E5336-00-00 Damper, Engine Mount 3YMUS |
1D9-E5336-00-00 |
US $16.70 |
||
|
40
|
40
5ND-F1486-00-00 Damper 2YMUS |
5ND-F1486-00-00 |
US $12.20 |
||
|
41
|
41
90105-10711-00 Bolt, Washer Based(4Hm) |
90105-10711-00 |
from US $7.37 |
||
| replacement | |||||
|
41
|
41
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
42
|
42
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
43
|
43
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
44
|
44
5ND-F151K-00-00 Label 7ENGLISH YMUS |
5ND-F151K-00-00 |
US $26.99 |
||
|
45
|
45
5ND-F8100-00-00 Tool Kit |
5ND-F8100-00-00 |
US $25.76 |
||
|
46
|
46
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
|
47
|
47
93210-64297-00 O-Ring |
93210-64297-00 |
from US $3.54 |
||
|
48
|
48
1D9-F8488-00-00 Hook |
1D9-F8488-00-00 |
US $24.08 |
||
| replacement | |||||
|
48
|
48
1D9-F8488-01-00 Hook |
1D9-F8488-01-00 |
US $39.49 |
||
|
49
|
49
90105-10669-00 Bolt, Washer Based(3Yr) |
90105-10669-00 |
from US $4.39 |
||
|
50
|
50
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
51
|
51
5ND-F147A-01-00
Guard, Engine 1
YMUS |
5ND-F147A-01-00 |
— | ||
| replacements | |||||
|
51
|
51
5ND-F147A-02-00 Guard, Engine 1YMUS |
5ND-F147A-02-00 |
US $79.61 |
||
|
51
|
51
5ND-F147A-03-00 Guard, Engine 1YMUS |
5ND-F147A-03-00 |
US $81.59 |
||
|
52
|
52
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.56 |
||
|
53
|
53
1D9-F840K-00-00 Guard Comp |
1D9-F840K-00-00 |
US $144.72 |
||
| replacement | |||||
|
53
|
53
1D9-F840K-01-00
Guard Comp
|
1D9-F840K-01-00 |
— | ||
|
54
|
54
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.56 |
||
