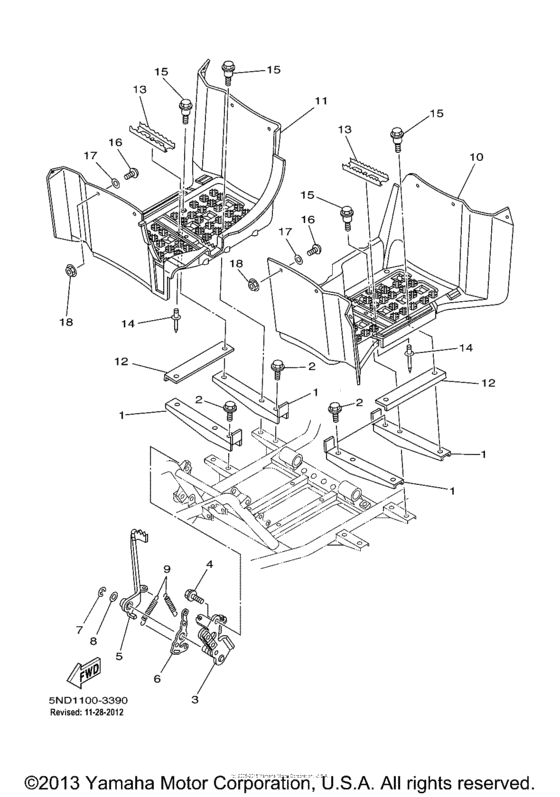

Stand & Footrest Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ND-F7471-01-00 Bar, Footrest 1YMUS |
5ND-F7471-01-00 |
US $14.63 |
||
|
2
|
2
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
2
|
2
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
3
|
3
5ND-F7412-10-00 Bracket, Footrest 1YMUS |
5ND-F7412-10-00 |
US $22.99 |
||
| replacement | |||||
|
3
|
3
5ND-F7412-11-00 Bracket, Footrest 1YMUS |
5ND-F7412-11-00 |
US $22.99 |
||
|
4
|
4
958-1P080-12-00
Bolt, Flange
|
958-1P080-12-00 |
— | ||
| replacement | |||||
|
4
|
4
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
5
|
5
5ND-F7211-00-00 Pedal, Brake |
5ND-F7211-00-00 |
US $36.36 |
||
| replacement | |||||
|
5
|
5
5ND-F7211-10-00 Pedal, Brake |
5ND-F7211-10-00 |
US $35.82 |
||
|
6
|
6
5ND-F7252-10-00 Lever, Brake Pedal |
5ND-F7252-10-00 |
US $14.90 |
||
| replacement | |||||
|
6
|
6
5ND-F7252-11-00 Lever, Brake Pedal |
5ND-F7252-11-00 |
US $14.90 |
||
|
7
|
7
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
8
|
8
90201-144J2-00 Washer, Plate |
90201-144J2-00 |
from US $1.84 |
||
|
9
|
9
90506-12441-00 Spring, Tension |
90506-12441-00 |
from US $3.54 |
||
|
10
|
10
5ND-F7453-01-00 Cover 1YMUS |
5ND-F7453-01-00 |
from US $70.20 |
||
|
11
|
11
5ND-F7463-01-00 Cover 2YMUS |
5ND-F7463-01-00 |
from US $70.33 |
||
|
12
|
12
5ND-F7445-00-00 Plate 1YMUS |
5ND-F7445-00-00 |
US $11.16 |
||
|
13
|
13
5UH-F741A-00-00 Arm 1YMUS |
5UH-F741A-00-00 |
from US $3.47 |
||
| replacement | |||||
|
13
|
13
5UH-F741A-10-00 Arm 1YMUS |
5UH-F741A-10-00 |
from US $7.74 |
||
|
14
|
14
90267-489U9-00 Rivet, Blind |
90267-489U9-00 |
from US $3.83 |
||
| replacement | |||||
|
14
|
14
90267-48934-00 Rivet, Blind |
90267-48934-00 |
from US $3.59 |
||
|
15
|
15
901-09060-72-00 Bolt |
901-09060-72-00 |
from US $2.27 |
||
|
16
|
16
90149-05299-00 Screw |
90149-05299-00 |
from US $1.56 |
||
|
17
|
17
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
18
|
18
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
