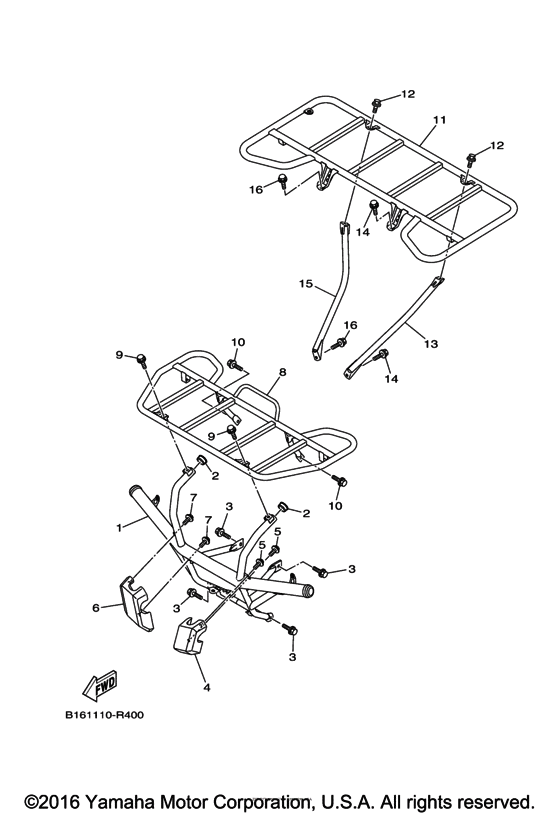

Guard Diagram Yamaha KODIAK 700 Kodiak 700 Hunter
- Model code
- B166
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70KDHGH
- Colour
- Yamaha Black
- Model
- Kodiak 700 Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-F845N-00-00
Bar, Carry Front
|
B16-F845N-00-00 |
— | ||
|
2
|
2
90338-26004-00 Plug |
90338-26004-00 |
from US $2.55 |
||
|
3
|
3
95812-08014-00 Bolt, Flange |
95812-08014-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.36 |
||
|
4
|
4
B16-F842M-00-00 Cover 1 |
B16-F842M-00-00 |
from US $31.03 |
||
|
5
|
5
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
6
|
6
B16-F842N-00-00 Cover 2 |
B16-F842N-00-00 |
US $28.57 |
||
|
7
|
7
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
8
|
8
B16-F4841-00-00 Carrier, Front |
B16-F4841-00-00 |
from US $212.36 |
||
|
9
|
9
95812-08012-00 Bolt, Flange |
95812-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
10
|
10
90119-08118-00 Bolt, With Washer |
90119-08118-00 |
from US $1.98 |
||
|
11
|
11
B16-F4842-00-00 Carrier, Rear |
B16-F4842-00-00 |
US $231.55 |
||
|
12
|
12
95812-08014-00 Bolt, Flange |
95812-08014-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.36 |
||
|
13
|
13
B16-F482J-00-00 Frame, Carrier 1 |
B16-F482J-00-00 |
US $52.49 |
||
|
14
|
14
90119-10044-00 Bolt, With Washer |
90119-10044-00 |
from US $1.98 |
||
|
15
|
15
B16-F482K-00-00 Frame, Carrier 2 |
B16-F482K-00-00 |
US $51.89 |
||
|
16
|
16
90119-10044-00 Bolt, With Washer |
90119-10044-00 |
from US $1.98 |
||
