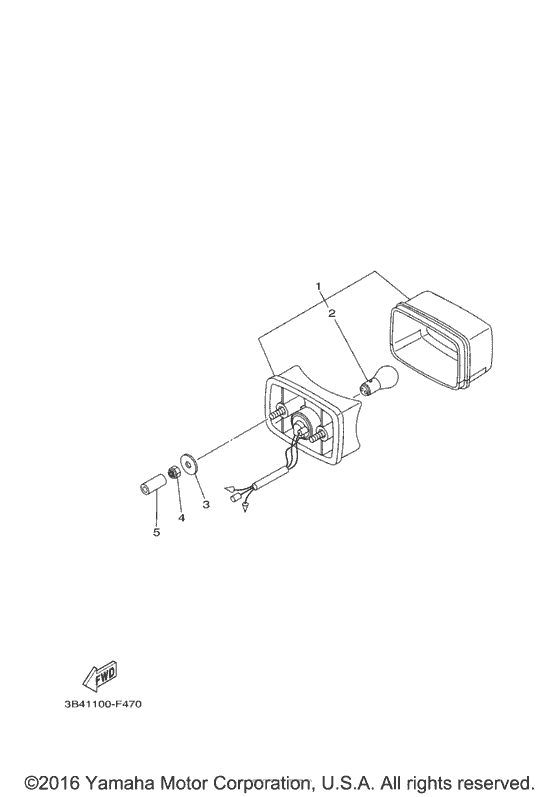

Taillight Diagram Yamaha KODIAK 700 Kodiak 700 Hunter
- Model code
- B166
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70KDHGH
- Colour
- Yamaha Black
- Model
- Kodiak 700 Hunter
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-84710-00-00
Taillight Unit Assy
|
3FA-84710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
3FA-84710-01-00 Taillight Unit Assy |
3FA-84710-01-00 |
from US $44.44 |
||
|
2
|
2
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
3
|
3
90201-06097-00 Washer, Plate |
90201-06097-00 |
from US $1.70 |
||
|
4
|
4
95702-06300-00 Nut, Nylon |
95702-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
5
|
5
904-45092-20-00
Hose (L420)
|
904-45092-20-00 |
— | ||
| replacement | |||||
|
5
|
5
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
