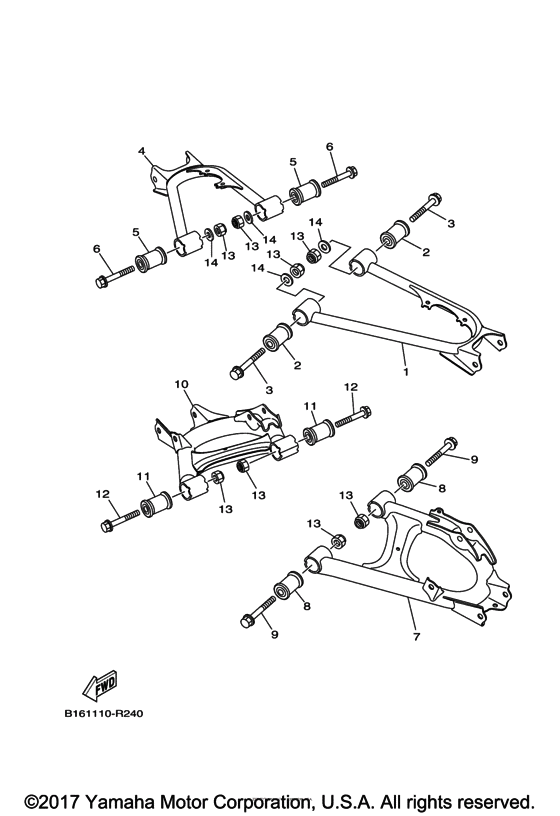

Rear arm & suspension Diagram Yamaha KODIAK 700 Kodiak 700
- Model code
- B16G
- Engine Capacity
- 700
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YFM70KDXJG
- Colour
- Pastel Deep Green
- Model
- Kodiak 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1HP-F2171-00-00 Arm, Rear 1 |
1HP-F2171-00-00 |
US $77.65 |
||
| replacement | |||||
|
1
|
1
1HP-F2171-01-00 Arm,Rear 1 |
1HP-F2171-01-00 |
US $39.13 |
||
|
2
|
2
1HP-F3526-00-00 Bush |
1HP-F3526-00-00 |
from US $11.19 |
||
|
3
|
3
90105-10011-00 Bolt, Flange |
90105-10011-00 |
from US $6.09 |
||
|
4
|
4
1HP-F2172-00-00 Arm, Rear 2 |
1HP-F2172-00-00 |
from US $38.76 |
||
| replacement | |||||
|
4
|
4
1HP-F2172-01-00 |
1HP-F2172-01-00 |
US $39.71 |
||
|
5
|
5
1HP-F3526-00-00 Bush |
1HP-F3526-00-00 |
from US $11.19 |
||
|
6
|
6
90105-10011-00 Bolt, Flange |
90105-10011-00 |
from US $6.09 |
||
|
7
|
7
1HP-F217M-00-00 Arm 1 |
1HP-F217M-00-00 |
from US $168.56 |
||
| replacement | |||||
|
7
|
7
1HP-F217M-01-00 |
1HP-F217M-01-00 |
US $69.03 |
||
|
8
|
8
1HP-F3526-00-00 Bush |
1HP-F3526-00-00 |
from US $11.19 |
||
|
9
|
9
90105-10011-00 Bolt, Flange |
90105-10011-00 |
from US $6.09 |
||
|
10
|
10
1HP-F217N-00-00 Arm 2 |
1HP-F217N-00-00 |
from US $168.56 |
||
| replacement | |||||
|
10
|
10
1HP-F217N-01-00 |
1HP-F217N-01-00 |
US $69.03 |
||
|
11
|
11
1HP-F3526-00-00 Bush |
1HP-F3526-00-00 |
from US $11.19 |
||
|
12
|
12
90105-10011-00 Bolt, Flange |
90105-10011-00 |
from US $6.09 |
||
|
13
|
13
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.36 |
||
|
14
|
14
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.36 |
||
