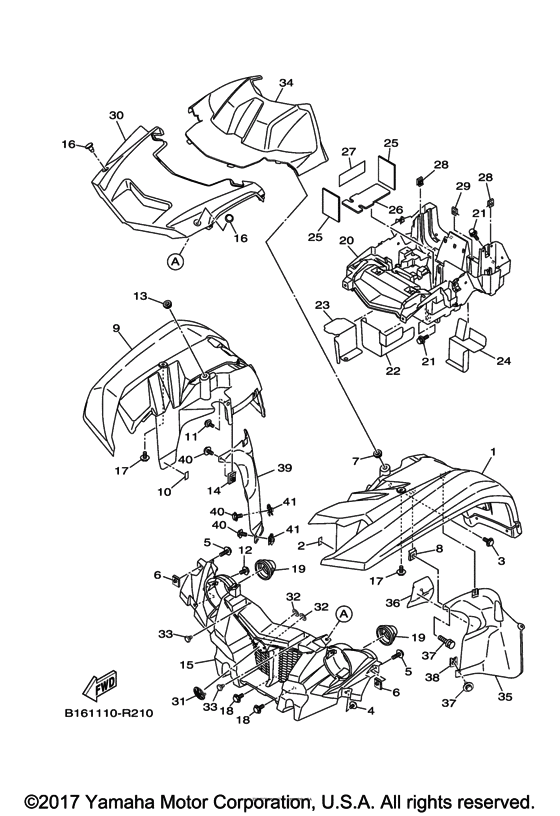

Front fender Diagram Yamaha KODIAK 700 Kodiak 700
- Model code
- B16G
- Engine Capacity
- 700
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YFM70KDXJR
- Colour
- Romantique Rouge
- Model
- Kodiak 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-F1500-10-00 Front Fender AssyUse for Color ROMANTIQUE ROUGE ( RTR / 00TR ) |
B16-F1500-10-00 |
US $188.59 |
||
|
1
|
1
B16-F1500-00-00 Front Fender AssyUse for Color PASTEL DEEP GREEN ( PDG / 00K0 ) |
B16-F1500-00-00 |
US $258.75 |
||
|
2
|
2
3B4-21541-00-00 Damper 1 |
3B4-21541-00-00 |
from US $1.60 |
||
|
3
|
3
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.56 |
||
|
4
|
4
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
5
|
5
90119-05193-00 Bolt, With Washer |
90119-05193-00 |
from US $1.28 |
||
|
6
|
6
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.36 |
||
|
7
|
7
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
7
|
7
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
8
|
8
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
8
|
8
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
9
|
9
B16-F1556-10-00 Fender, Front 2Use for Color ROMANTIQUE ROUGE ( RTR / 00TR ) |
B16-F1556-10-00 |
US $126.36 |
||
|
9
|
9
B16-F1556-00-00 Fender, Front 2Use for Color PASTEL DEEP GREEN ( PDG / 00K0 ) |
B16-F1556-00-00 |
US $88.54 |
||
|
10
|
10
3B4-21541-00-00 Damper 1 |
3B4-21541-00-00 |
from US $1.60 |
||
|
11
|
11
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.56 |
||
|
12
|
12
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
13
|
13
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
13
|
13
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
14
|
14
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
14
|
14
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
15
|
15
B16-F8309-00-00 Grille, Front |
B16-F8309-00-00 |
US $41.13 |
||
|
16
|
16
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
17
|
17
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
18
|
18
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.56 |
||
|
19
|
19
5UH-F8349-00-00 Cap |
5UH-F8349-00-00 |
US $14.42 |
||
|
20
|
20
1HP-H212B-01-00 Box, Battery 1 |
1HP-H212B-01-00 |
from US $31.52 |
||
| replacement | |||||
|
20
|
20
1HP-H212B-02-00 Box, Battery 1 |
1HP-H212B-02-00 |
US $31.70 |
||
|
21
|
21
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
22
|
22
1HP-H253E-00-00 Insulator 1 |
1HP-H253E-00-00 |
from US $4.34 |
||
| replacement | |||||
|
22
|
22
1HP-H253E-01-00 Insulator 1 |
1HP-H253E-01-00 |
US $9.59 |
||
|
23
|
23
1HP-H253F-00-00 Insulator 2 |
1HP-H253F-00-00 |
from US $5.95 |
||
|
24
|
24
1HP-H254E-00-00 Insulator |
1HP-H254E-00-00 |
from US $3.78 |
||
| replacement | |||||
|
24
|
24
1HP-H254E-01-00 Insulator |
1HP-H254E-01-00 |
US $9.59 |
||
|
25
|
25
3B4-8233W-10-00 Insu |
3B4-8233W-10-00 |
from US $1.70 |
||
|
26
|
26
3B4-82122-00-00 Seat, Battery |
3B4-82122-00-00 |
from US $7.51 |
||
|
27
|
27
1HP-H2176-00-00 Damper |
1HP-H2176-00-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
1HP-H2176-01-00 Damper |
1HP-H2176-01-00 |
US $2.74 |
||
|
28
|
28
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
28
|
28
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
29
|
29
90183-05008-00 Nut, Spring |
90183-05008-00 |
from US $2.55 |
||
|
30
|
30
B16-F3391-00-00 Panel, Front |
B16-F3391-00-00 |
US $20.57 |
||
|
31
|
31
1XD-F175B-01-00 Tuning Fork Mark |
1XD-F175B-01-00 |
US $16.04 |
||
|
32
|
32
90183-06071-00 Nut, Spring |
90183-06071-00 |
from US $0.95 |
||
|
33
|
33
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
34
|
34
B16-F839R-00-00 Panel, Accessory |
B16-F839R-00-00 |
from US $27.74 |
||
|
35
|
35
1HP-F1552-00-00 Fender, Inner |
1HP-F1552-00-00 |
from US $11.27 |
||
|
36
|
36
1HP-F1575-00-00 Seal 1 |
1HP-F1575-00-00 |
from US $2.93 |
||
| replacement | |||||
|
36
|
36
1HP-F1575-01-00 Protector |
1HP-F1575-01-00 |
US $5.49 |
||
|
37
|
37
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
38
|
38
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
38
|
38
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
39
|
39
1HP-F1553-00-00 Fender, Inner 2 |
1HP-F1553-00-00 |
from US $16.43 |
||
|
40
|
40
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
41
|
41
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
41
|
41
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
