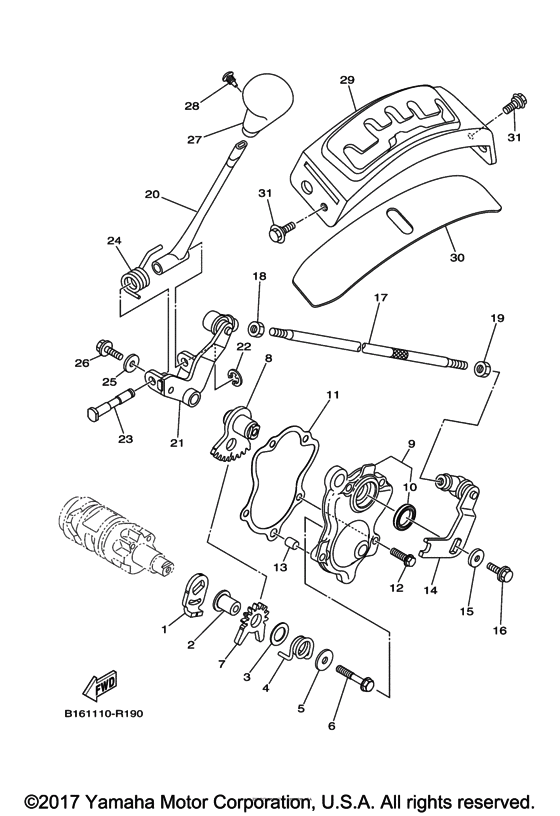

Shift shaft Diagram Yamaha KODIAK 700 Kodiak 700
- Model code
- B16G
- Engine Capacity
- 700
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YFM70KDXJR
- Colour
- Romantique Rouge
- Model
- Kodiak 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-E8198-00-00 Lever |
B16-E8198-00-00 |
US $8.01 |
||
|
2
|
2
2MB-E8413-00-00 Collar, Shifter |
2MB-E8413-00-00 |
US $14.74 |
||
|
3
|
3
2MB-E8137-00-00 Washer 1 |
2MB-E8137-00-00 |
US $2.97 |
||
|
4
|
4
B16-E8183-00-00 Spring |
B16-E8183-00-00 |
US $10.06 |
||
|
5
|
5
2MB-E8138-00-00 Washer 2 |
2MB-E8138-00-00 |
US $3.73 |
||
|
6
|
6
2MB-E5482-20-00 Bolt 2 |
2MB-E5482-20-00 |
US $2.77 |
||
|
7
|
7
2MB-E8191-00-00 Lever |
2MB-E8191-00-00 |
US $14.24 |
||
|
8
|
8
B16-E8103-00-00 Shift Shaft Comp |
B16-E8103-00-00 |
US $107.82 |
||
|
9
|
9
B16-E8380-00-00 Shifter Brkt. Assy |
B16-E8380-00-00 |
US $97.90 |
||
|
10
|
10
B16-E76G3-00-00 Oil Seal 2 |
B16-E76G3-00-00 |
US $13.30 |
||
|
11
|
11
2MB-E8146-00-00 Gasket |
2MB-E8146-00-00 |
US $2.95 |
||
|
12
|
12
2MB-E5481-10-00 Bolt 1 |
2MB-E5481-10-00 |
US $1.51 |
||
|
13
|
13
2MB-E8438-00-00 Pin, Dowel |
2MB-E8438-00-00 |
US $4.48 |
||
|
14
|
14
28P-18104-00-00 Shift Guide Comp |
28P-18104-00-00 |
from US $30.32 |
||
|
15
|
15
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
16
|
16
90105-06176-00 Bolt,washer Based |
90105-06176-00 |
from US $1.80 |
||
| replacement | |||||
|
16
|
16
901-05061-75-00 Bolt, Flange |
901-05061-75-00 |
from US $1.98 |
||
|
17
|
17
B16-18115-00-00 Rod, Shift |
B16-18115-00-00 |
US $17.19 |
||
|
18
|
18
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
|
19
|
19
95312-06700-00 Nut |
95312-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
19
|
19
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
20
|
20
1HP-E8190-01-00 Lever Comp. 1 |
1HP-E8190-01-00 |
from US $21.20 |
||
|
21
|
21
1HP-E8169-00-00 Arm, Shift 2 |
1HP-E8169-00-00 |
from US $19.49 |
||
|
22
|
22
99002-06600-00 Clip |
99002-06600-00 |
from US $1.56 |
||
| replacements | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.36 |
||
|
23
|
23
1HP-E8125-00-00 Shaft, Shift |
1HP-E8125-00-00 |
from US $12.10 |
||
|
24
|
24
1HP-E8196-00-00 Spring, Return |
1HP-E8196-00-00 |
from US $9.35 |
||
|
25
|
25
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
26
|
26
95812-06016-00 Bolt, Flange |
95812-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
26
|
26
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
27
|
27
28P-18174-00-00 Knob, Shift Lever |
28P-18174-00-00 |
from US $10.10 |
||
|
28
|
28
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.36 |
||
|
29
|
29
1HP-E8172-00-00 Guide, Shift |
1HP-E8172-00-00 |
from US $20.26 |
||
|
30
|
30
1HP-E8154-00-00 Cover, Dust |
1HP-E8154-00-00 |
from US $8.08 |
||
|
31
|
31
90109-06043-00 Bolt |
90109-06043-00 |
from US $1.56 |
||
