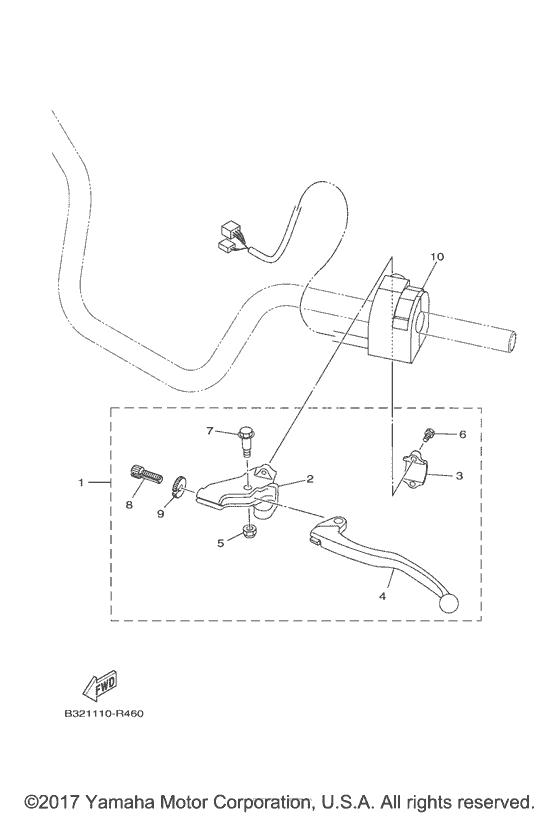

Handle switch & lever Diagram Yamaha KODIAK 700 Kodiak 700 EPS Special Edition
- Model code
- B32B
- Engine Capacity
- 700
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YFM70KPSJB
- Colour
- Low Gloss Black
- Model
- Kodiak 700 EPS Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-82910-00-00 Lever Holder Assy (Left) |
B16-82910-00-00 |
US $47.09 |
||
| replacement | |||||
|
1
|
1
B16-82910-01-00 |
B16-82910-01-00 |
US $47.68 |
||
|
2
|
2
B16-82911-00-00 Holder, Lever 1 |
B16-82911-00-00 |
US $56.30 |
||
|
3
|
3
5TG-82913-00-00 Holder, Lever Lower 1 |
5TG-82913-00-00 |
from US $7.23 |
||
|
4
|
4
2HT-83912-01-00 Lever 1 |
2HT-83912-01-00 |
from US $18.86 |
||
|
5
|
5
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
6
|
6
90101-05033-00 Bolt |
90101-05033-00 |
from US $1.70 |
||
|
7
|
7
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
| replacement | |||||
|
7
|
7
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
10
|
10
28P-83972-00-00 Switch, Handle 4 |
28P-83972-00-00 |
from US $120.06 |
||
