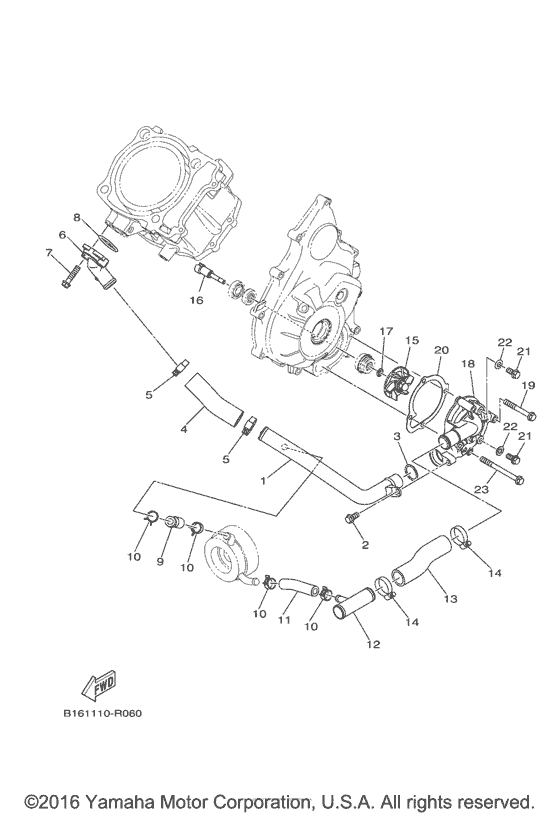

Water pump Diagram Yamaha KODIAK 700 Kodiak 700 EPS
- Model code
- 2SM1
- Engine Capacity
- 700
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFM70KPXGR
- Colour
- Romantique Rouge
- Model
- Kodiak 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-E2481-00-00 Pipe 1 |
B16-E2481-00-00 |
US $48.53 |
||
|
2
|
2
2MB-E5481-60-00 Bolt 1 |
2MB-E5481-60-00 |
US $1.76 |
||
|
3
|
3
2MB-E2439-00-00 O-Ring |
2MB-E2439-00-00 |
from US $1.70 |
||
|
4
|
4
B16-E243F-00-00 Hose,3 |
B16-E243F-00-00 |
from US $32.16 |
||
|
5
|
5
2MB-E1387-00-00 Clamp, Hose 1 |
2MB-E1387-00-00 |
from US $9.10 |
||
|
6
|
6
2MB-E2469-00-00 Joint 1 |
2MB-E2469-00-00 |
US $33.01 |
||
|
7
|
7
2MB-E5481-20-00 Bolt 1 |
2MB-E5481-20-00 |
from US $1.36 |
||
|
8
|
8
2MB-E2843-00-00 O-Ring |
2MB-E2843-00-00 |
US $6.25 |
||
|
9
|
9
B16-E244G-00-00 Hose, 4 |
B16-E244G-00-00 |
from US $5.81 |
||
|
10
|
10
B16-E2486-00-00 Clip |
B16-E2486-00-00 |
from US $1.13 |
||
|
11
|
11
B16-E243E-00-00 Hose 2 |
B16-E243E-00-00 |
from US $6.66 |
||
|
12
|
12
B16-E2484-00-00 Pipe 4 |
B16-E2484-00-00 |
US $55.98 |
||
|
13
|
13
B16-E244J-00-00 Hose 6 |
B16-E244J-00-00 |
from US $18.70 |
||
|
14
|
14
2MB-E1387-00-00 Clamp, Hose 1 |
2MB-E1387-00-00 |
from US $9.10 |
||
|
15
|
15
2MB-E2451-00-00 Impeller, Water Pump |
2MB-E2451-00-00 |
from US $21.11 |
||
|
16
|
16
2MB-E2458-00-00 Shaft, Impeller |
2MB-E2458-00-00 |
from US $33.86 |
||
|
17
|
17
2MB-E243M-00-00 Seal, Water Pump |
2MB-E243M-00-00 |
from US $3.40 |
||
|
18
|
18
B16-E2422-00-00 Cover, Housing |
B16-E2422-00-00 |
US $96.86 |
||
|
19
|
19
2MB-E5481-B0-00 Bolt 1 |
2MB-E5481-B0-00 |
US $2.41 |
||
|
20
|
20
2MB-E2428-00-00 Gasket, Housing Cover 2 |
2MB-E2428-00-00 |
from US $0.79 |
||
|
21
|
21
2MB-E5481-60-00 Bolt 1 |
2MB-E5481-60-00 |
US $1.76 |
||
|
22
|
22
2MB-E2435-00-00 Gasket |
2MB-E2435-00-00 |
from US $0.79 |
||
|
23
|
23
2MB-E5481-70-00 Bolt 1 |
2MB-E5481-70-00 |
US $3.26 |
