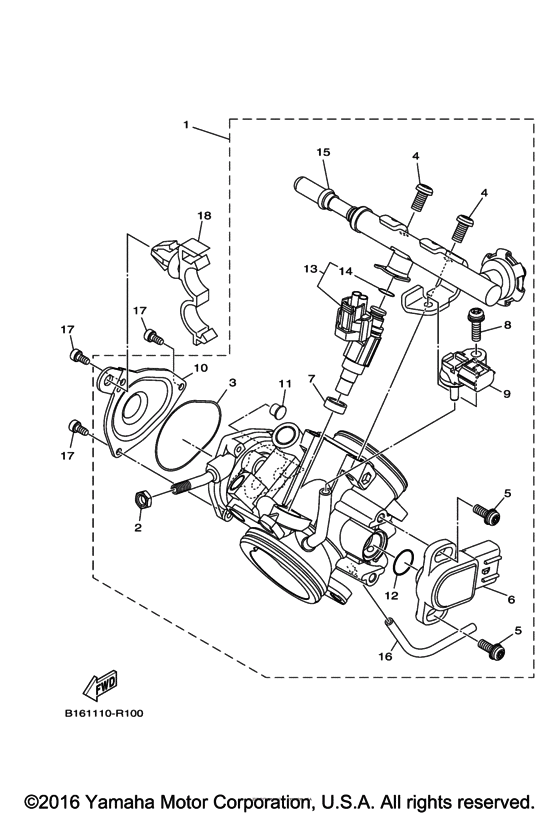

Throttle Body Assy 1 Diagram Yamaha KODIAK 700 Kodiak 700 EPS
- Model code
- 2SM8
- Engine Capacity
- 700
- Year
- 2017
- Sales region
- USA
- Базовая модель
- YFM70KPXHR
- Colour
- Romantique Rouge
- Model
- Kodiak 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B16-13750-00-00 Throttle Body Assy |
B16-13750-00-00 |
from US $861.96 |
||
| replacements | |||||
|
1
|
1
B16-13750-01-00 |
B16-13750-01-00 |
US $877.90 |
||
|
1
|
1
B16-13750-02-00 Throttle Body Assy |
B16-13750-02-00 |
US $933.69 |
||
|
2
|
2
1S3-14161-00-00 Nut, Cable Adjusting |
1S3-14161-00-00 |
from US $1.84 |
||
|
3
|
3
5LP-14147-00-00 O-Ring |
5LP-14147-00-00 |
from US $7.51 |
||
|
4
|
4
92502-06012-00 Screw, Pan Head |
92502-06012-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
5
|
5
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
6
|
6
3B4-85885-00-00 Throttle Sensor Assy |
3B4-85885-00-00 |
from US $89.11 |
||
| replacement | |||||
|
6
|
6
3B4-85885-01-00 THROTTLE SENSOR ASSY |
3B4-85885-01-00 |
from US $81.81 |
||
|
7
|
7
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
8
|
8
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
9
|
9
5S7-82380-00-00 Sensor, Pressure |
5S7-82380-00-00 |
from US $143.69 |
||
|
10
|
10
B16-14293-00-00 Cover 1 |
B16-14293-00-00 |
US $15.43 |
||
|
11
|
11
1UY-14155-00-00 Guide, Cable |
1UY-14155-00-00 |
from US $9.49 |
||
|
12
|
12
5YP-14562-00-00 O-Ring |
5YP-14562-00-00 |
from US $5.10 |
||
|
13
|
13
1XD-13761-00-00 Injector |
1XD-13761-00-00 |
from US $129.87 |
||
|
14
|
14
1XD-14147-00-00 O-Ring |
1XD-14147-00-00 |
from US $10.48 |
||
|
15
|
15
B16-13160-00-00 Delivery Pipe Assy 1 |
B16-13160-00-00 |
US $322.79 |
||
|
16
|
16
1XD-13543-00-00 Hose, Air |
1XD-13543-00-00 |
US $51.77 |
||
|
17
|
17
91312-04008-00 Bolt |
91312-04008-00 |
from US $1.56 |
||
|
18
|
18
90464-20010-00 Clamp |
90464-20010-00 |
from US $1.98 |
||
