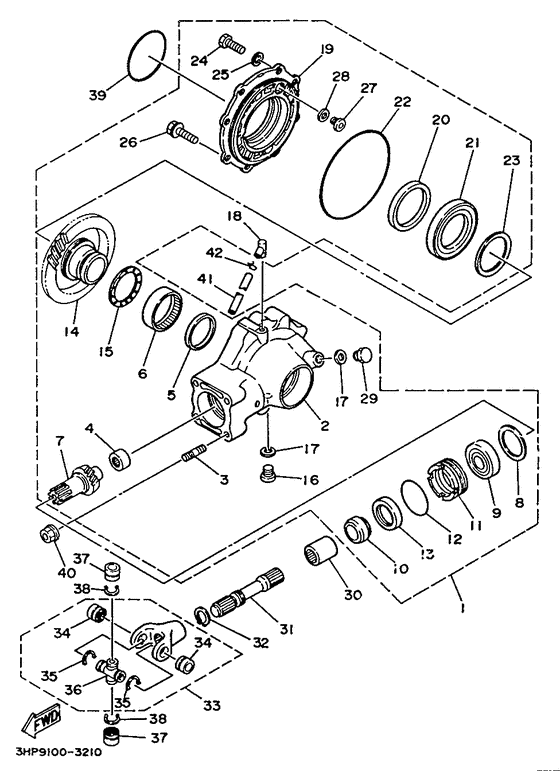

Drive shaft Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- 3HPF
- Engine Capacity
- 350
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Traditional Blue (TDB; 009U)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HN-46101-11-00
Rear Axle Gear Case Assy
|
3HN-46101-11-00 |
— | ||
| replacement | |||||
|
01
|
01
3HN-46101-12-00
Rear Axle Gear Case Assy
|
3HN-46101-12-00 |
— | ||
|
02
|
02
3HN-46151-00-00
Housing, Drive Shaft
|
3HN-46151-00-00 |
— | ||
| replacement | |||||
|
02
|
02
3HN-46151-01-00
Housing, Drive Shaft
|
3HN-46151-01-00 |
— | ||
|
03
|
03
90116-10593-00 Bolt, Stud(59V) |
90116-10593-00 |
from US $5.95 |
||
| replacement | |||||
|
03
|
03
90116-10361-00 Bolt, Stud |
90116-10361-00 |
from US $2.02 |
||
|
04
|
04
2H7-46102-00-00 Bearing Assy |
2H7-46102-00-00 |
from US $28.76 |
||
|
05
|
05
93101-52116-00 Oil Seal |
93101-52116-00 |
from US $7.51 |
||
|
06
|
06
93317-85569-00 Bearing |
93317-85569-00 |
from US $66.18 |
||
| replacement | |||||
|
06
|
06
933-17855-Y9-00 Bearing |
933-17855-Y9-00 |
from US $47.20 |
||
|
07
|
07
1YW-46121-00-00 Gear, Drive Pinion |
1YW-46121-00-00 |
from US $201.71 |
||
| replacement | |||||
|
07
|
07
1YW-46121-01-00 Gear, Drive Pinion |
1YW-46121-01-00 |
from US $144.86 |
||
|
08
|
08
1J7-17537-T0-50
Shim, Thrust
Ur |
1J7-17537-T0-50 |
— | ||
|
08
|
08
1J7-17537-Y0-30 Shim, Thrust (0.30T)Ur |
1J7-17537-Y0-30 |
from US $4.39 |
||
|
08
|
08
1J7-17537-Y0-40 Shim, Thrust (0.40T)Ur |
1J7-17537-Y0-40 |
from US $4.39 |
||
|
09
|
09
93306-30568-00 Bearing |
93306-30568-00 |
from US $67.56 |
||
|
10
|
10
90387-255H9-00 Collar |
90387-255H9-00 |
from US $10.44 |
||
|
11
|
11
29U-46125-00-00 Retainer, Bearing |
29U-46125-00-00 |
from US $38.55 |
||
|
12
|
12
93210-59531-00 O-Ring |
93210-59531-00 |
from US $5.24 |
||
|
13
|
13
93101-38098-00 Oil Seal |
93101-38098-00 |
from US $8.08 |
||
|
14
|
14
1YW-46110-00-00 Ring Gear Comp |
1YW-46110-00-00 |
US $610 |
||
|
15
|
15
24W-46118-00-12 Washer, Thrust (1.2T)Ur |
24W-46118-00-12 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-14 Washer, Thrust (1.4T)Ur |
24W-46118-00-14 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-16 Washer, Thrust (1.6T)Ur |
24W-46118-00-16 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-18 Washer, Thrust (1.8T)Ur |
24W-46118-00-18 |
from US $14.31 |
||
|
15
|
15
24W-46118-00-19
Washer, Thrust (1.9T)
Ur |
24W-46118-00-19 |
— | ||
|
15
|
15
24W-46118-00-20 Washer, Thrust (2.0T)Ur |
24W-46118-00-20 |
from US $14.31 |
||
|
16
|
16
90340-14046-00 Plug, Straight Screw |
90340-14046-00 |
from US $4.53 |
||
| replacement | |||||
|
16
|
16
90340-14002-00 Plug, Straight Screw |
90340-14002-00 |
from US $3.72 |
||
|
17
|
17
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.70 |
||
|
18
|
18
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
18
|
18
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
19
|
19
3HN-46152-01-00 Housing, Bearing |
3HN-46152-01-00 |
US $157.46 |
||
|
20
|
20
93102-65277-00 Oil Seal |
93102-65277-00 |
from US $12.33 |
||
|
21
|
21
93316-01301-00 Bearing |
93316-01301-00 |
from US $74.05 |
||
|
22
|
22
93211-54698-00 O-Ring |
93211-54698-00 |
from US $9.35 |
||
|
23
|
23
24W-46117-00-25
Shim, Ring Gear (0.25T)
Ur |
24W-46117-00-25 |
— | ||
|
23
|
23
24W-46117-00-30
Shim, Ring Gear (0.30T)
Ur |
24W-46117-00-30 |
— | ||
|
23
|
23
24W-46117-00-40
Shim, Ring Gear (0.40T)
Ur |
24W-46117-00-40 |
— | ||
|
24
|
24
97027-08025-00 Bolt |
97027-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
24
|
24
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
25
|
25
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
26
|
26
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
27
|
27
1FK-46156-00-00 Stopper, Ring Gear |
1FK-46156-00-00 |
from US $11.33 |
||
|
28
|
28
1FK-46157-00-15 Shim, Stopper (T=0.15)Ur |
1FK-46157-00-15 |
from US $2.13 |
||
|
28
|
28
1FK-46157-00-20 Shim, Stopper (T=0.20)Ur |
1FK-46157-00-20 |
from US $2.13 |
||
|
29
|
29
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.36 |
||
|
30
|
30
29U-46123-00-00 Coupling, Gear |
29U-46123-00-00 |
from US $27.77 |
||
| replacement | |||||
|
30
|
30
2HR-46123-00-00 Coupling, Gear |
2HR-46123-00-00 |
from US $27.77 |
||
|
31
|
31
1YW-46172-00-00 Shaft, Drive |
1YW-46172-00-00 |
US $119.25 |
||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
33
|
33
1YW-46180-00-00 Cross Joint Comp |
1YW-46180-00-00 |
from US $226.61 |
||
| replacement | |||||
|
33
|
33
1YW-46180-02-00 Cross Joint Comp |
1YW-46180-02-00 |
from US $161.33 |
||
|
34
|
34
93399-99923-00 Bearing |
93399-99923-00 |
from US $24.37 |
||
| replacement | |||||
|
34
|
34
93399-99952-00 Bearing |
93399-99952-00 |
from US $17.63 |
||
|
35
|
35
93440-23165-00 Circlip |
93440-23165-00 |
from US $1.54 |
||
|
36
|
36
1YW-46187-00-00 Spider |
1YW-46187-00-00 |
from US $107.57 |
||
|
37
|
37
93399-99923-00 Bearing |
93399-99923-00 |
from US $24.37 |
||
| replacement | |||||
|
37
|
37
93399-99952-00 Bearing |
93399-99952-00 |
from US $17.63 |
||
|
38
|
38
93440-23165-00 Circlip |
93440-23165-00 |
from US $1.54 |
||
|
39
|
39
93210-85706-00 O-Ring |
93210-85706-00 |
from US $4.96 |
||
|
40
|
40
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
40
|
40
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
41
|
41
90445-07745-00 Hose (L1700) |
90445-07745-00 |
from US $11.05 |
||
| replacement | |||||
|
41
|
41
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
42
|
42
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
