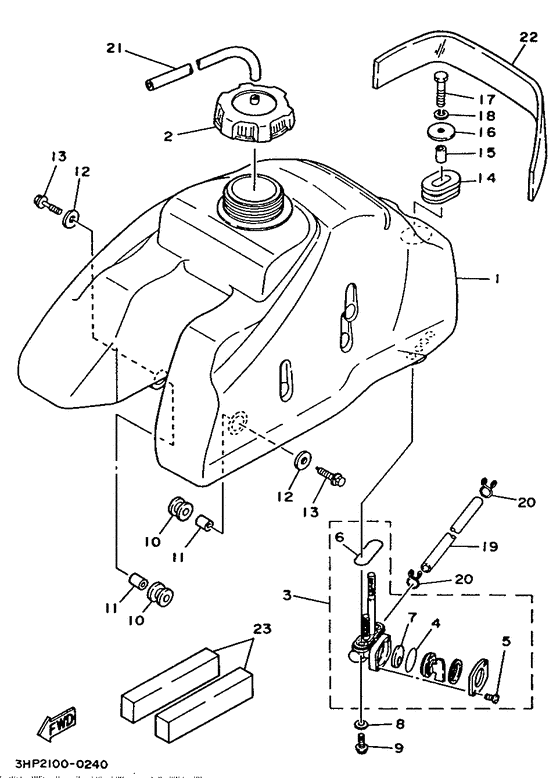

Fuel tank Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- 3HPF
- Engine Capacity
- 350
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Traditional Blue (TDB; 009U)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3GH-24110-00-00
Fuel Tank Comp
|
3GH-24110-00-00 |
— | ||
|
02
|
02
1UY-24610-00-00
Cap Assy
|
1UY-24610-00-00 |
— | ||
| replacements | |||||
|
02
|
02
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
02
|
02
5MV-24610-00-00 Cap Assy |
5MV-24610-00-00 |
from US $58.44 |
||
|
03
|
03
21V-24500-10-00
Fuel Cock Assy 1
|
21V-24500-10-00 |
— | ||
| replacements | |||||
|
03
|
03
21V-24500-20-00 Fuel Cock Assy 1 |
21V-24500-20-00 |
from US $49.16 |
||
|
03
|
03
3JN-24500-10-00 Fuel Cock Assy 1 |
3JN-24500-10-00 |
from US $52.04 |
||
|
04
|
04
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
04
|
04
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.70 |
||
|
05
|
05
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
05
|
05
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
06
|
06
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
07
|
07
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
07
|
07
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
08
|
08
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
08
|
08
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
09
|
09
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
10
|
10
90480-18354-00 Grommet |
90480-18354-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90480-18549-00 Grommet(4Aa) |
90480-18549-00 |
from US $1.70 |
||
|
11
|
11
90387-06027-00 Collar |
90387-06027-00 |
from US $1.70 |
||
|
12
|
12
90201-06072-00 Washer, Plate |
90201-06072-00 |
from US $1.28 |
||
|
13
|
13
90119-06073-00 Bolt, With Washer |
90119-06073-00 |
from US $1.84 |
||
|
14
|
14
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
15
|
15
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
16
|
16
90201-060L5-00 Washer, Plate |
90201-060L5-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06090-00 Washer, Plate |
90201-06090-00 |
from US $1.70 |
||
|
17
|
17
97027-06030-00 Bolt, Hexagon |
97027-06030-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
18
|
18
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
19
|
19
90445-11626-00 Hose (L400) |
90445-11626-00 |
from US $15.44 |
||
| replacement | |||||
|
19
|
19
90445-116K9-00 Hose (L400)Hose (l400) |
90445-116K9-00 |
from US $15.44 |
||
|
20
|
20
90466-71008-00
Guide
|
90466-71008-00 |
— | ||
|
21
|
21
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
21
|
21
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
22
|
22
59V-24181-00-00
Damper, Locating 1
|
59V-24181-00-00 |
— | ||
|
23
|
23
1YW-24183-00-00 Patch 1 |
1YW-24183-00-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
8V7-21961-00-00 Patch 1 |
8V7-21961-00-00 |
from US $2.13 |
||
