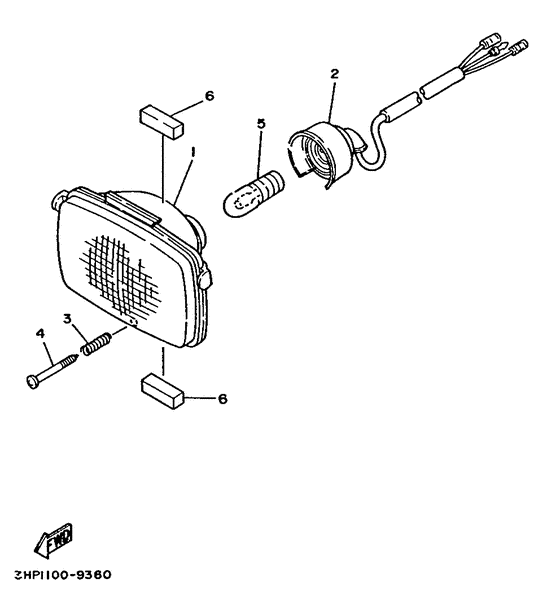

Headlight Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- 3HPF
- Engine Capacity
- 350
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Traditional Blue (TDB; 009U)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
59V-84320-00-00 Lens Assy |
59V-84320-00-00 |
from US $62.03 |
||
| replacement | |||||
|
01
|
01
59V-84320-01-00 Lens Assy |
59V-84320-01-00 |
from US $48.62 |
||
|
02
|
02
59V-84312-10-00
Holder, Socket
|
59V-84312-10-00 |
— | ||
|
03
|
03
38W-84335-00-00
Spring
|
38W-84335-00-00 |
— | ||
|
04
|
04
97706-40530-00 Screw, Tapping (25K) |
97706-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $1.40 |
||
|
05
|
05
102-84314-00-00 Bulb (12V-25/25W) |
102-84314-00-00 |
from US $5.38 |
||
| replacements | |||||
|
05
|
05
102-84314-00-XX Bulb (12V-25/25W) (102-84314- |
102-84314-00-XX |
US $6.35 |
||
|
05
|
05
1YT-84314-00-00 Bulb, Headlight (12V-25/25W) |
1YT-84314-00-00 |
from US $5.38 |
||
|
06
|
06
3HP-84163-00-00
Damper
|
3HP-84163-00-00 |
— | ||
