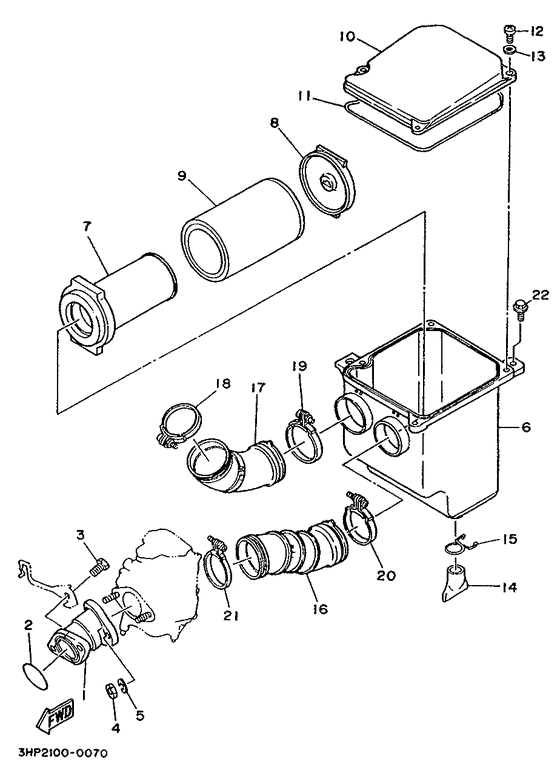

Intake Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- 3HPF
- Engine Capacity
- 350
- Year
- 1995
- Sales region
- Europe (General) (999)
- Colour
- Traditional Blue (TDB; 009U)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3HN-13586-00-00
Joint, Carb 1
|
3HN-13586-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3HN-13586-02-00 Joint, Carburetor 1 |
3HN-13586-02-00 |
from US $95.61 |
||
|
02
|
02
932-10445-45-00 O-Ring |
932-10445-45-00 |
from US $6.52 |
||
|
03
|
03
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.07 |
||
|
04
|
04
95307-08600-00 Nut, Hex |
95307-08600-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
|
05
|
05
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.36 |
||
|
06
|
06
1YW-14411-00-00 Case, Air Cleaner 1 |
1YW-14411-00-00 |
US $60.88 |
||
| replacement | |||||
|
06
|
06
1YW-14411-01-00
Case, Air Cleaner 1
|
1YW-14411-01-00 |
— | ||
|
07
|
07
1YW-14458-00-00 Guide |
1YW-14458-00-00 |
from US $59.69 |
||
| replacement | |||||
|
07
|
07
1YW-14458-01-00 Guide |
1YW-14458-01-00 |
from US $51.52 |
||
|
08
|
08
1UY-14468-00-00 Plate,element Fitting |
1UY-14468-00-00 |
from US $7.23 |
||
|
09
|
09
1YW-14451-00-00 Element, Air Cleaner |
1YW-14451-00-00 |
from US $14.45 |
||
| replacement | |||||
|
09
|
09
1YW-14451-01-00 ELEMENT, AIR CLEANER |
1YW-14451-01-00 |
US $21.82 |
||
|
10
|
10
21V-14412-00-00 Cap, Cleaner Case 1 |
21V-14412-00-00 |
from US $13.72 |
||
| replacement | |||||
|
10
|
10
21V-14412-01-00 Cap, Cleaner Case 1 |
21V-14412-01-00 |
from US $15.44 |
||
|
11
|
11
21V-14462-00-00 Seal |
21V-14462-00-00 |
from US $9.49 |
||
| replacement | |||||
|
11
|
11
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $7.76 |
||
|
12
|
12
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
13
|
13
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
14
|
14
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.69 |
||
|
15
|
15
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
16
|
16
1YW-14453-00-00
Joint, Air Cleaner 1
|
1YW-14453-00-00 |
— | ||
|
17
|
17
1YW-14437-00-00
Duct
|
1YW-14437-00-00 |
— | ||
|
18
|
18
90460-56105-00 Hose Clamp Assy |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
18
|
18
90450-56001-00 Hose Clamp Assy |
90450-56001-00 |
from US $14.73 |
||
|
19
|
19
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
19
|
19
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
20
|
20
90460-56105-00 Hose Clamp Assy |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
20
|
20
90450-56001-00 Hose Clamp Assy |
90450-56001-00 |
from US $14.73 |
||
|
21
|
21
90460-56105-00 Hose Clamp Assy |
90460-56105-00 |
from US $10.33 |
||
| replacement | |||||
|
21
|
21
90450-56001-00 Hose Clamp Assy |
90450-56001-00 |
from US $14.73 |
||
|
22
|
22
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.36 |
||
| replacement | |||||
|
22
|
22
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
