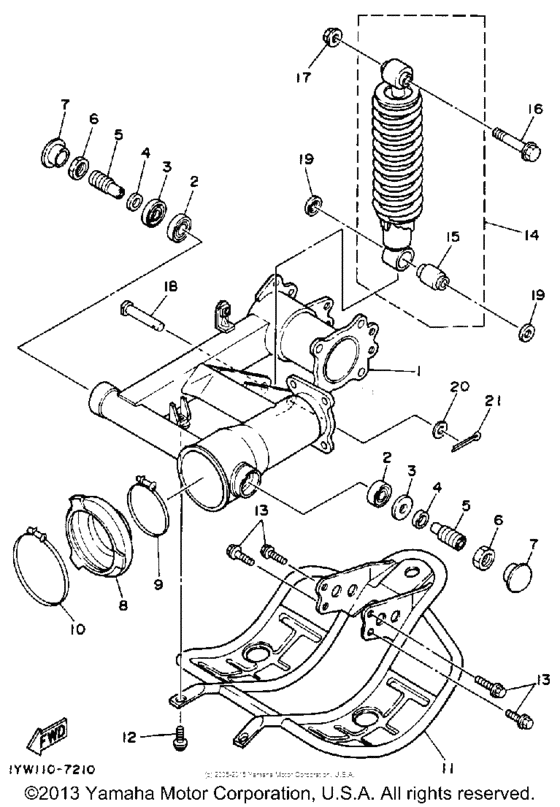

Swing arm-rear shocks Diagram Yamaha MOTO-4 Moto-4 350
- Model code
- YFM350ERT
- Engine Capacity
- 350
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Moto-4 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1YW-22110-00-33
Rear Arm Comp
|
1YW-22110-00-33 |
— | ||
|
2
|
2
93332-00010-00 Bearing |
93332-00010-00 |
from US $19.69 |
||
|
3
|
3
93102-25017-00 Oil Seal |
93102-25017-00 |
from US $2.98 |
||
|
4
|
4
90387-17543-00 Collar |
90387-17543-00 |
from US $4.53 |
||
| replacement | |||||
|
4
|
4
90387-17011-00 Collar |
90387-17011-00 |
from US $4.53 |
||
|
5
|
5
29U-22141-00-00 Shaft, Pivot |
29U-22141-00-00 |
from US $26.75 |
||
| replacement | |||||
|
5
|
5
4WV-22141-00-00 Shaft, Pivot |
4WV-22141-00-00 |
from US $27.63 |
||
|
6
|
6
1J7-22143-00-00 Nut |
1J7-22143-00-00 |
from US $9.49 |
||
|
7
|
7
90338-34069-00 Plug |
90338-34069-00 |
from US $4.25 |
||
|
8
|
8
59V-22189-00-00 Boot, Rubber (1Yw-22189-00-00)1YW-22189-00-00 |
59V-22189-00-00 |
US $54.76 |
||
|
9
|
9
90460-99289-00 Clamp, Hose |
90460-99289-00 |
from US $8.64 |
||
|
10
|
10
90460-99278-00 Hose Clamp Assy |
90460-99278-00 |
from US $8.93 |
||
| replacement | |||||
|
10
|
10
90450-99013-00 Hose Clamp Assy |
90450-99013-00 |
from US $8.93 |
||
|
11
|
11
1YW-2219X-01-00
Cover
|
1YW-2219X-01-00 |
— | ||
|
12
|
12
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
13
|
13
95811-10016-00 Bolt, Flange (3R1) |
95811-10016-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-10016-00 Bolt, Flange |
95817-10016-00 |
from US $1.07 |
||
|
14
|
14
1YW-22210-00-26
Shock Absorber Assy, Rear
|
1YW-22210-00-26 |
— | ||
|
15
|
15
1YW-22216-00-00 Bush, Rear Shock Absorber |
1YW-22216-00-00 |
from US $27.77 |
||
|
16
|
16
90105-12425-00 Bolt, Flange |
90105-12425-00 |
from US $3.68 |
||
|
17
|
17
90185-12072-00 Nut, Self-Locking |
90185-12072-00 |
from US $1.84 |
||
|
18
|
18
90240-12092-00 Pin, Clevis |
90240-12092-00 |
from US $6.80 |
||
|
19
|
19
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
20
|
20
92990-12600-00 Washer, Plate |
92990-12600-00 |
from US $1.42 |
||
|
21
|
21
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
21
|
21
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
