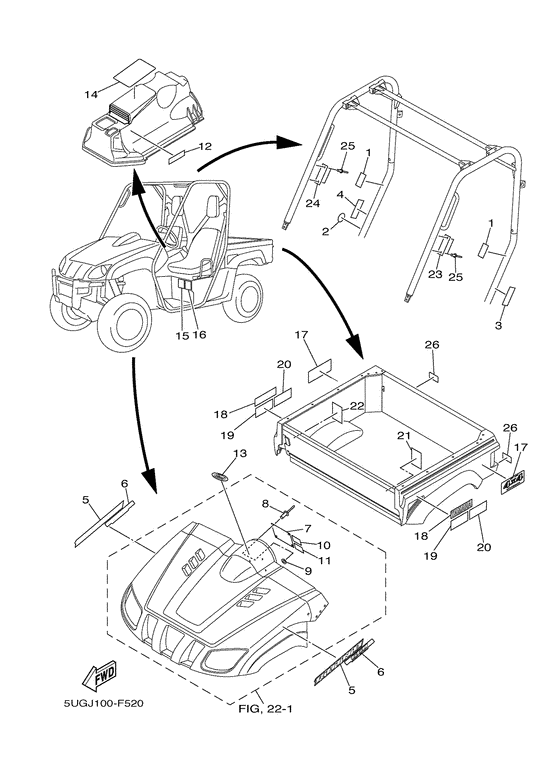

Emblem & label 3 Diagram Yamaha RHINO 660 Rhino 660 Special Edition
- Model code
- 5UGV
- Engine Capacity
- 660
- Year
- 2007
- Sales region
- Europe (General) (010)
- Colour
- Silver (SL; 0035)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rhino 660 Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5UG-K8483-00-00 Label WarningEnglish |
5UG-K8483-00-00 |
US $86 |
||
|
02
|
02
4XE-F415E-10-00 Label, Caution |
4XE-F415E-10-00 |
US $20.88 |
||
|
03
|
03
5UG-K7761-10-00 Label, Warning 1French |
5UG-K7761-10-00 |
US $7 |
||
|
04
|
04
5UG-K7762-10-00 Label, Warning 2French |
5UG-K7762-10-00 |
US $7 |
||
|
05
|
05
5UG-F174B-00-00 Emblem 3D |
5UG-F174B-00-00 |
US $50.04 |
||
| replacement | |||||
|
05
|
05
42S-F174B-00-00 Emblem 3D |
42S-F174B-00-00 |
US $49.28 |
||
|
06
|
06
5UG-F1737-00-00 Emblem |
5UG-F1737-00-00 |
US $101.41 |
||
|
07
|
07
5UG-F1568-01-00 Label, Warning |
5UG-F1568-01-00 |
US $19.31 |
||
| replacement | |||||
|
07
|
07
5B4-F1568-01-00 Label, Warning |
5B4-F1568-01-00 |
US $39.06 |
||
|
08
|
08
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
08
|
08
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
09
|
09
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.32 |
||
|
10
|
10
5UG-F1558-00-00
Label, Warning 2
English |
5UG-F1558-00-00 |
— | ||
|
11
|
11
5ND-F1558-10-00 Label, Warning 2French |
5ND-F1558-10-00 |
US $10.55 |
||
|
12
|
12
5UG-F155A-20-00 Mark, Ce |
5UG-F155A-20-00 |
US $4.46 |
||
|
13
|
13
5UG-F1783-10-00 Emblem 3 |
5UG-F1783-10-00 |
US $16.31 |
||
|
14
|
14
5UG-F1568-11-00 Label, Warning |
5UG-F1568-11-00 |
US $97 |
||
|
15
|
15
5UG-F1696-01-00 Label, CautionEnglish |
5UG-F1696-01-00 |
US $6.25 |
||
| replacement | |||||
|
15
|
15
5B4-F1696-00-00 Label, CautionEnglish |
5B4-F1696-00-00 |
US $14.69 |
||
|
16
|
16
5UG-F1696-10-00 Label, CautionFrench |
5UG-F1696-10-00 |
US $5.78 |
||
|
17
|
17
5UG-F163G-C0-00 Emblem 1 |
5UG-F163G-C0-00 |
US $83 |
||
|
18
|
18
5UH-F173B-00-00 Emblem 3D |
5UH-F173B-00-00 |
US $31.30 |
||
|
19
|
19
5UG-K7764-00-00 Label, Warning 4 |
5UG-K7764-00-00 |
US $4.25 |
||
| replacement | |||||
|
19
|
19
5B4-K7764-00-00 Label, Warning 4 |
5B4-K7764-00-00 |
US $10.87 |
||
|
20
|
20
5UG-K7764-10-00 Label, Warning 4French |
5UG-K7764-10-00 |
US $135.45 |
||
|
21
|
21
5UG-F4897-00-00 EmblemEnglish |
5UG-F4897-00-00 |
US $9.13 |
||
| replacement | |||||
|
21
|
21
5B4-F4897-00-00 EmblemEnglish |
5B4-F4897-00-00 |
US $8.50 |
||
|
22
|
22
5UG-F4897-10-00 EmblemFrench |
5UG-F4897-10-00 |
US $9.72 |
||
|
23
|
23
5UG-K7761-00-00
Label, Warning 1
English |
5UG-K7761-00-00 |
— | ||
|
24
|
24
5UG-K7762-00-00 Label, Warning 2English |
5UG-K7762-00-00 |
US $12.91 |
||
| replacement | |||||
|
24
|
24
5B4-K7762-00-00 Label, Warning 2English |
5B4-K7762-00-00 |
US $19.30 |
||
|
25
|
25
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
25
|
25
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
26
|
26
5UG-H5131-00-00 Reflector, Rear 1 |
5UG-H5131-00-00 |
US $15.68 |
||
