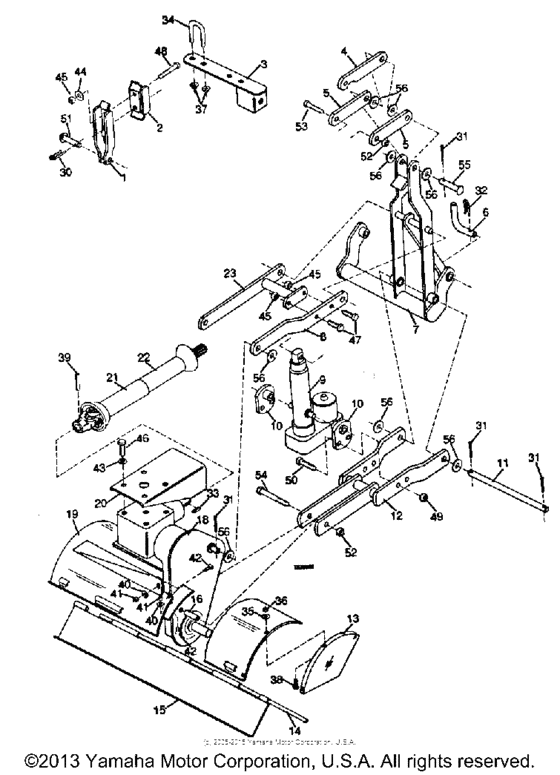

Tiller assembly Diagram Yamaha TERRA PRO Attachments
- Model code
- RT38
- Year
- 1989
- Sales region
- USA
- Model
- Attachments
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BA8-66003-00-00
Attitude Rack Assembly
|
BA8-66003-00-00 |
— | ||
|
2
|
2
BA8-66004-00-00
Attitude Rack Assembly
|
BA8-66004-00-00 |
— | ||
| replacement | |||||
|
2
|
2
BA8-66003-00-00
Attitude Rack Assembly
|
BA8-66003-00-00 |
— | ||
|
3
|
3
BA8-66055-00-00
Switch Bracket Wa Assembly
WA ASSEMBLY |
BA8-66055-00-00 |
— | ||
|
4
|
4
BA8-66045-00-00
Link
|
BA8-66045-00-00 |
— | ||
|
5
|
5
BA8-66046-00-00
Link
|
BA8-66046-00-00 |
— | ||
|
6
|
6
BA2-65937-00-00
Hitch Pin
|
BA2-65937-00-00 |
— | ||
|
7
|
7
BA8-66048-00-00
Tiller Mount Wa
|
BA8-66048-00-00 |
— | ||
|
8
|
8
BA8-66040-00-00
Rt. Attitude Link
|
BA8-66040-00-00 |
— | ||
|
9
|
9
BA8-66058-00-00
12V Electric Cylinder, Actuator
|
BA8-66058-00-00 |
— | ||
|
10
|
10
BA8-66037-00-00
Actuator Mount Assembly
|
BA8-66037-00-00 |
— | ||
|
11
|
11
BA8-66047-00-00
Clevis Pin
|
BA8-66047-00-00 |
— | ||
|
12
|
12
BA8-66034-00-00
Draft Link
|
BA8-66034-00-00 |
— | ||
|
13
|
13
BA8-63694-00-00
End Cap
|
BA8-63694-00-00 |
— | ||
|
14
|
14
BA8-63499-00-00 1/4 Round X 39 Blk39 BLK |
BA8-63499-00-00 |
US $10.84 |
||
|
15
|
15
BA8-83321-00-00
New Genuine Part
IN PRICE BOOK |
BA8-83321-00-00 |
— | ||
|
16
|
16
BA8-63497-00-00 Pivot Bushing |
BA8-63497-00-00 |
US $8.17 |
||
|
18
|
18
SEE-GRIDS-D9-11
New Genuine Part
IN PRICE BOOK SEE |
SEE-GRIDS-D9-11 |
— | ||
|
19
|
19
BA8-66072-00-00
Shield Assembly W/decal
|
BA8-66072-00-00 |
— | ||
|
20
|
20
BA8-66032-00-00
Pto Shield
|
BA8-66032-00-00 |
— | ||
|
21
|
21
BA8-66012-00-00
Rear Pto Drve Shaft Triangular
|
BA8-66012-00-00 |
— | ||
|
22
|
22
BA8-66011-00-00
Front Pto Drive Shaft Triangula
|
BA8-66011-00-00 |
— | ||
|
23
|
23
BA8-66041-00-00
Att. Link Weldment
|
BA8-66041-00-00 |
— | ||
|
24
|
24
BA8-66068-00-00 Decal Set, Complete (Not Shown) |
BA8-66068-00-00 |
US $47.66 |
||
|
25
|
25
BA8-62949-00-00 Warning Decal (Not Shown) |
BA8-62949-00-00 |
US $10.48 |
||
|
26
|
26
BA8-29029-00-00
Pto Decal (Not Shown)
|
BA8-29029-00-00 |
— | ||
|
27
|
27
BA8-33347-00-00
Driveline Decal (Not Shown)
|
BA8-33347-00-00 |
— | ||
|
28
|
28
BA8-66060-00-00 Gearbox Decal (Not Shown) |
BA8-66060-00-00 |
US $6.19 |
||
|
29
|
29
BA8-66067-00-00
Rt38 Decal (Not Shown)
|
BA8-66067-00-00 |
— | ||
|
33
|
33
BA2-03886-00-00
Key
|
BA2-03886-00-00 |
— | ||
|
34
|
34
BA8-66010-00-00 1/4 U-Bolt |
BA8-66010-00-00 |
US $1.35 |
||
|
37
|
37
BA8-62521-00-00
1/4 Hex Lock Nut
|
BA8-62521-00-00 |
— | ||
|
38
|
38
BA8-64812-00-00 1/4X1/2 Carriage Bolt |
BA8-64812-00-00 |
US $1.69 |
||
|
39
|
39
BA2-11880-00-00
Roll Pin
|
BA2-11880-00-00 |
— | ||
|
51
|
51
BA8-63528-00-00
Clevis Pin
|
BA8-63528-00-00 |
— | ||
|
55
|
55
BA8-08098-00-00
Clevis Pin Ht
HT |
BA8-08098-00-00 |
— | ||
