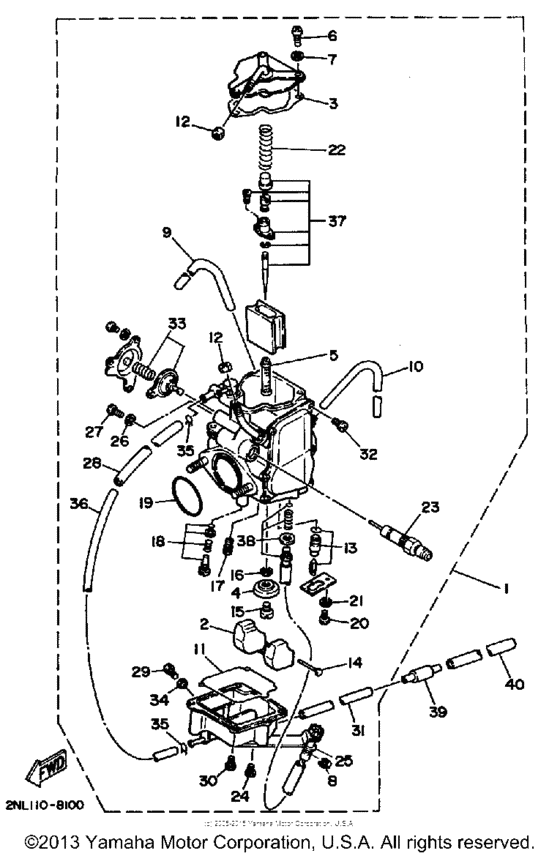

Carburetor Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-14101-00-00
Carburetor Assembly 1
|
2NL-14101-00-00 |
— | ||
|
2
|
2
1UY-14185-00-00 Float |
1UY-14185-00-00 |
from US $45.04 |
||
|
3
|
3
1UY-14198-00-00 Gasket |
1UY-14198-00-00 |
from US $13.88 |
||
|
4
|
4
5V7-14153-00-00 Washer, Main Jet |
5V7-14153-00-00 |
from US $9.92 |
||
|
5
|
5
2NL-14141-26-00
Nozzle, Main
|
2NL-14141-26-00 |
— | ||
|
6
|
6
98511-04016-00 Screw, Pan Head |
98511-04016-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
256-14937-00-00 Clip |
256-14937-00-00 |
from US $1.91 |
||
|
9
|
9
2NL-14197-10-00 Pipe |
2NL-14197-10-00 |
from US $23.33 |
||
| replacement | |||||
|
9
|
9
26H-14197-01-00 Pipe |
26H-14197-01-00 |
from US $8.28 |
||
|
10
|
10
90445-08376-00 Hose (L330) |
90445-08376-00 |
from US $5.10 |
||
| replacement | |||||
|
10
|
10
904-45086-84-00 Hose (L340) |
904-45086-84-00 |
from US $5.10 |
||
|
11
|
11
1UY-14147-00-00 O-Ring |
1UY-14147-00-00 |
from US $16.01 |
||
|
12
|
12
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
13
|
13
1UY-14107-25-00 Needle Valve Set |
1UY-14107-25-00 |
from US $43.47 |
||
|
14
|
14
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
15
|
15
620-14231-23-A0 Jet, Main #115 (620-14231-23-#115 620-14231-23- |
620-14231-23-A0 |
from US $14.96 |
||
|
16
|
16
137-14153-00-00 Washer,main Jet |
137-14153-00-00 |
from US $2.98 |
||
|
17
|
17
4G0-14142-42-A0 Jet, Pilot ( 42.5)42.5 |
4G0-14142-42-A0 |
from US $13.90 |
||
|
18
|
18
21V-14105-00-00 Pilot Screw Set |
21V-14105-00-00 |
from US $18.23 |
||
|
19
|
19
1YW-14147-00-00 O-Ring |
1YW-14147-00-00 |
from US $8.78 |
||
|
20
|
20
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
21
|
21
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
22
|
22
2HR-14131-00-00
Spring, Throttle Valve
|
2HR-14131-00-00 |
— | ||
|
23
|
23
1YW-1410A-00-00
Starter Set
|
1YW-1410A-00-00 |
— | ||
|
24
|
24
98701-05008-00 Screw,flat Head |
98701-05008-00 |
from US $2.09 |
||
| replacement | |||||
|
24
|
24
98707-05008-00 Screw, Flat Head |
98707-05008-00 |
from US $2.09 |
||
|
25
|
25
2J2-14962-00-00
Washer
|
2J2-14962-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
59V-14962-00-00 Washer |
59V-14962-00-00 |
from US $2.55 |
||
|
27
|
27
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
27
|
27
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
28
|
28
2NL-14987-00-00
Hose
|
2NL-14987-00-00 |
— | ||
|
29
|
29
2L1-14191-00-00 Plug, Drain |
2L1-14191-00-00 |
from US $16.72 |
||
|
30
|
30
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
31
|
31
904-45084-E3-00
Hose (L1500)
|
904-45084-E3-00 |
— | ||
| replacement | |||||
|
31
|
31
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
32
|
32
97601-04312-00 Screw, Pan Head |
97601-04312-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
98517-04012-00 Screw, Pan Head |
98517-04012-00 |
from US $1.07 |
||
|
33
|
33
3LD-1490H-00-00 Diaphragm Set 5 |
3LD-1490H-00-00 |
from US $72.95 |
||
|
34
|
34
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
35
|
35
80N-14139-00-00 Clip, Pipe |
80N-14139-00-00 |
from US $1.70 |
||
|
36
|
36
2NL-14196-00-00
Pipe
|
2NL-14196-00-00 |
— | ||
|
37
|
37
2NL-1490J-00-00
Needle Set
|
2NL-1490J-00-00 |
— | ||
|
38
|
38
2NL-14103-00-00
Throttle Screw Set
|
2NL-14103-00-00 |
— | ||
| replacement | |||||
|
38
|
38
2NL-14103-10-00
PIPE
|
2NL-14103-10-00 |
— | ||
|
39
|
39
24W-14193-00-00 Pipe |
24W-14193-00-00 |
from US $11.58 |
||
|
40
|
40
91A20-07010-00 Hose |
91A20-07010-00 |
from US $3.97 |
||
| replacement | |||||
|
40
|
40
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
