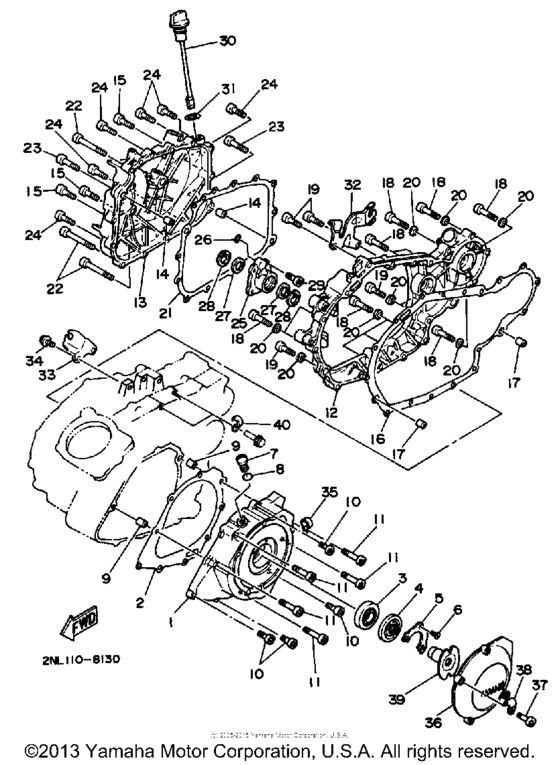

Crankcase cover (1) Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-15787-02-00 Adaptor |
1UY-15787-02-00 |
US $429.44 |
||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2NL-15451-00-00
Gasket,crcs
|
2NL-15451-00-00 |
— | ||
| replacement | |||||
|
2
|
2
2NL-15451-10-00
Crankcase Cover Gasket 1
|
2NL-15451-10-00 |
— | ||
|
3
|
3
93306-07802-00
Bearing (1Yw)
1YW |
93306-07802-00 |
— | ||
|
4
|
4
93103-28164-00 Oil Seal |
93103-28164-00 |
from US $16.94 |
||
| replacement | |||||
|
4
|
4
931-02284-76-00 Oil Seal |
931-02284-76-00 |
from US $13.24 |
||
|
5
|
5
1UY-15719-00-00 Washer, Thrust |
1UY-15719-00-00 |
from US $5.24 |
||
|
6
|
6
90151-05031-00 Screw, Countersunk |
90151-05031-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
90151-05023-00 Screw, Countersunk |
90151-05023-00 |
from US $2.13 |
||
|
7
|
7
90340-14079-00 Plug, Straight Screw |
90340-14079-00 |
from US $14.03 |
||
|
8
|
8
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
9
|
9
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
9
|
9
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
10
|
10
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
11
|
11
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
11
|
11
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
11
|
11
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
12
|
12
2NL-15317-00-00
Spacer, Eng Mount
|
2NL-15317-00-00 |
— | ||
|
13
|
13
2NL-15431-00-00
Cover, Crankcase 3
|
2NL-15431-00-00 |
— | ||
|
14
|
14
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
14
|
14
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
15
|
15
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
16
|
16
2NL-15461-00-00
Gasket, Gas Air 2
|
2NL-15461-00-00 |
— | ||
| replacement | |||||
|
16
|
16
2NL-15461-10-00
Gasket, Crankcase
|
2NL-15461-10-00 |
— | ||
|
17
|
17
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
17
|
17
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
18
|
18
913-16060-35-00
Bolt
|
913-16060-35-00 |
— | ||
| replacements | |||||
|
18
|
18
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
18
|
18
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
18
|
18
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
19
|
19
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
19
|
19
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
19
|
19
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
20
|
20
929-06066-00-00
Washer
|
929-06066-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
2NL-15462-00-00
Gasket,crcs Cvr3
|
2NL-15462-00-00 |
— | ||
| replacement | |||||
|
21
|
21
2NL-15462-10-00
Gasket, Crankcase
|
2NL-15462-10-00 |
— | ||
|
22
|
22
913-16060-70-00
Bolt
|
913-16060-70-00 |
— | ||
| replacement | |||||
|
22
|
22
91317-06070-00 Bolt |
91317-06070-00 |
from US $1.50 |
||
|
23
|
23
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
23
|
23
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
23
|
23
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
24
|
24
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
25
|
25
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
26
|
26
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
27
|
27
931-02201-08-00 Oil Seal (20X30X7-371) |
931-02201-08-00 |
from US $11.18 |
||
| replacement | |||||
|
27
|
27
93102-20814-00 Oil Seal |
93102-20814-00 |
from US $3.40 |
||
|
28
|
28
990-09305-00-00 Circlip (650)650 |
990-09305-00-00 |
US $5.81 |
||
| replacement | |||||
|
28
|
28
93420-30042-00 Circlip650 |
93420-30042-00 |
from US $2.29 |
||
|
29
|
29
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
29
|
29
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
30
|
30
1UY-15362-01-00 Plug, Oil Level |
1UY-15362-01-00 |
from US $11.76 |
||
|
31
|
31
932-10195-22-00 O-Ring |
932-10195-22-00 |
from US $1.84 |
||
|
32
|
32
2NL-15441-00-00
Holder, Clch Cable
|
2NL-15441-00-00 |
— | ||
|
33
|
33
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
34
|
34
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
34
|
34
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
35
|
35
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
36
|
36
2NL-15411-00-00
Cover, Crankcase 1
|
2NL-15411-00-00 |
— | ||
| replacement | |||||
|
36
|
36
2NL-15411-01-00
Cover, Crankcase 1
|
2NL-15411-01-00 |
— | ||
|
37
|
37
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
37
|
37
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
38
|
38
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
39
|
39
3GD-15777-10-00 Boss, Starter Pulley |
3GD-15777-10-00 |
from US $66.87 |
||
|
40
|
40
90465-06332-00 Clamp(Ja1) |
90465-06332-00 |
from US $2.41 |
||
| replacement | |||||
|
40
|
40
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
