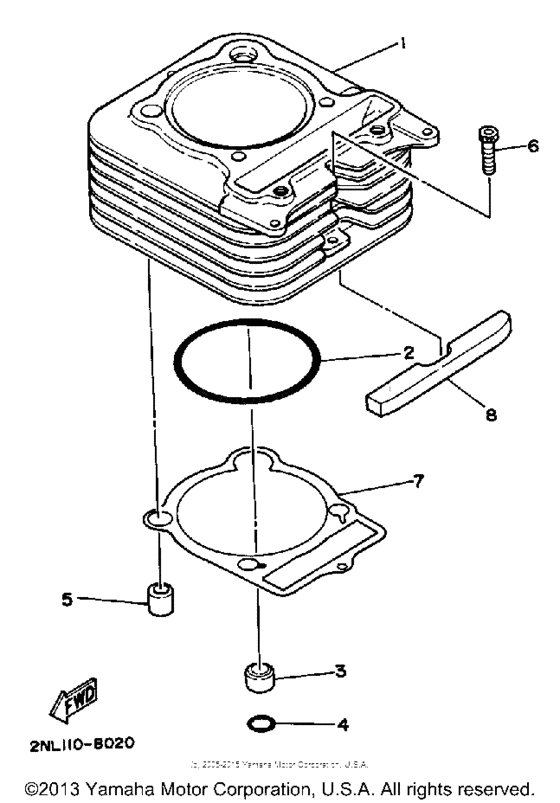

Cylinder Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-11310-00-00
Cylinder
|
2NL-11310-00-00 |
— | ||
|
2
|
2
93210-86509-00 O-Ring |
93210-86509-00 |
from US $5.96 |
||
|
3
|
3
90387-16547-00 Collar |
90387-16547-00 |
from US $2.32 |
||
|
4
|
4
932-10183-22-00 O-Ring |
932-10183-22-00 |
from US $1.70 |
||
|
5
|
5
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
6
|
6
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
7
|
7
3GD-11351-00-00
Gasket, Cylinder
|
3GD-11351-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4KB-11351-00-00 Gasket, Cylinder |
4KB-11351-00-00 |
from US $8.94 |
||
|
8
|
8
2NL-11326-00-00 Seat |
2NL-11326-00-00 |
US $1.89 |
||
