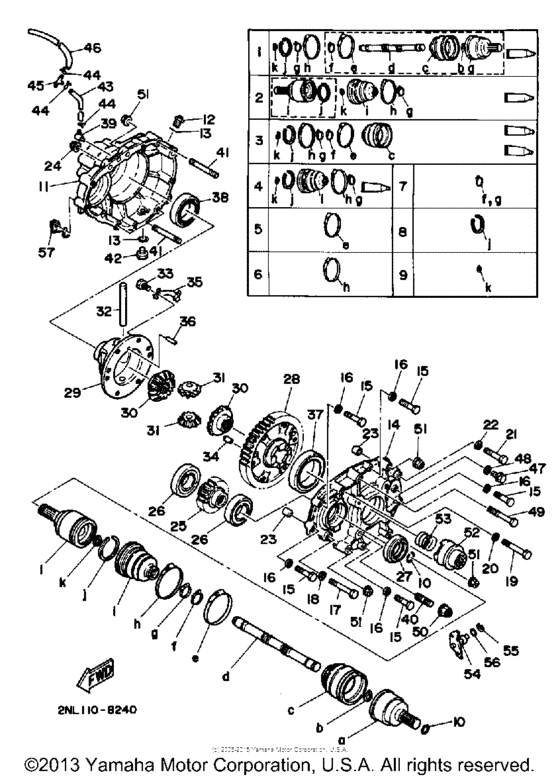

Drive shaft Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-2510F-00-00
Ball Joint Set
|
2NL-2510F-00-00 |
— | ||
|
2
|
2
2NL-2510J-00-00
Double Ofset Joint
|
2NL-2510J-00-00 |
— | ||
|
3
|
3
2NL-2510G-00-00 Boot Set (Balljoint) |
2NL-2510G-00-00 |
US $66.35 |
||
|
4
|
4
2NL-2510H-00-00 Boot Set (Dbl.offseoffset Joint |
2NL-2510H-00-00 |
US $61.24 |
||
|
5
|
5
2NL-2511G-00-00
Boot Band (Balljoi (Ball Joint)
|
2NL-2511G-00-00 |
— | ||
|
6
|
6
2NL-2511H-00-00
Bootband (Dbloffsetoffset Joint
|
2NL-2511H-00-00 |
— | ||
|
7
|
7
2NL-2512G-00-00
Boot Band (Small)
|
2NL-2512G-00-00 |
— | ||
|
8
|
8
2NL-2512H-00-00 Circlip |
2NL-2512H-00-00 |
US $2.93 |
||
|
9
|
9
2NL-2512J-00-00
Snap Ring
|
2NL-2512J-00-00 |
— | ||
|
10
|
10
934-50251-21-00 Circlip |
934-50251-21-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
934-50240-28-00 Circlip |
934-50240-28-00 |
from US $1.28 |
||
|
11
|
11
2NL-46151-00-00
Housing, Dr Shaft
DR SHAFT |
2NL-46151-00-00 |
— | ||
|
12
|
12
3VD-13455-00-00 Plug, Straight Screw |
3VD-13455-00-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
13
|
13
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
14
|
14
2NL-46152-00-00
Housing, Bearing
|
2NL-46152-00-00 |
— | ||
|
15
|
15
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
15
|
15
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.13 |
||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
17
|
17
97021-08065-00
Bolt(2Nl)
|
97021-08065-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
19
|
19
95811-10065-00 Bolt, Flange |
95811-10065-00 |
from US $3.58 |
||
| replacement | |||||
|
19
|
19
95817-10065-00 Bolt, Flange |
95817-10065-00 |
from US $5.67 |
||
|
20
|
20
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
21
|
21
97313-08050-00 Bolt,hex |
97313-08050-00 |
from US $5.24 |
||
| replacement | |||||
|
21
|
21
97013-08050-00 Bolt, Hexagon |
97013-08050-00 |
from US $4.24 |
||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
23
|
23
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
23
|
23
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
24
|
24
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
24
|
24
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
24
|
24
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
25
|
25
2NL-46121-00-00
Gear, Drive Pinion
|
2NL-46121-00-00 |
— | ||
|
26
|
26
93306-20716-00 Bearing |
93306-20716-00 |
from US $49.32 |
||
|
27
|
27
931-02443-92-00 Oil Seal |
931-02443-92-00 |
from US $11.19 |
||
| replacement | |||||
|
27
|
27
931-02444-54-00 Oil Seal |
931-02444-54-00 |
from US $11.19 |
||
|
28
|
28
999-99017-79-00
Diff.gear Set (2Nl)
2NL |
999-99017-79-00 |
— | ||
|
29
|
29
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
30
|
30
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
31
|
31
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
32
|
32
2NL-46417-00-00
Pin, Differential
|
2NL-46417-00-00 |
— | ||
|
33
|
33
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
33
|
33
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
34
|
34
93610-14230-00 Pin, Dowel (2Nl)2NL |
93610-14230-00 |
US $2 |
||
|
35
|
35
2NL-22156-00-00
Washer, Plate
|
2NL-22156-00-00 |
— | ||
|
36
|
36
91609-40028-00
Pin, Spring
|
91609-40028-00 |
— | ||
|
37
|
37
93306-01201-00
Bearing
|
93306-01201-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
933-06009-02-00
Bearing
|
933-06009-02-00 |
— | ||
|
39
|
39
2N4-15371-00-00
Breather
|
2N4-15371-00-00 |
— | ||
| replacement | |||||
|
39
|
39
5UG-15371-00-00 Breather |
5UG-15371-00-00 |
from US $15.87 |
||
|
40
|
40
956-11126-25-00 Bolt, Stud |
956-11126-25-00 |
US $1.89 |
||
|
41
|
41
949-62090-01-00
Chain Joint
IN PRICE BOOK |
949-62090-01-00 |
— | ||
|
42
|
42
90340-14118-00 Plug, Straight Screw |
90340-14118-00 |
US $12.67 |
||
| replacements | |||||
|
42
|
42
90340-14004-00 Plug, Straight Screw |
90340-14004-00 |
from US $9.07 |
||
|
42
|
42
3JL-13455-00-00 Plug, Straight Screw |
3JL-13455-00-00 |
US $41.89 |
||
|
43
|
43
90445-090F7-00 Hose (L675) |
90445-090F7-00 |
from US $19.84 |
||
| replacement | |||||
|
43
|
43
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
44
|
44
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
45
|
45
90413-05014-00 Way 3 |
90413-05014-00 |
from US $4.11 |
||
|
46
|
46
90445-095E9-00 Hose (L675) |
90445-095E9-00 |
from US $19.84 |
||
| replacement | |||||
|
46
|
46
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
47
|
47
950-23080-12-00
Bolt, Flange (Small Head)
|
950-23080-12-00 |
— | ||
| replacement | |||||
|
47
|
47
95024-08012-00 Bolt, Flange (Small Head) |
95024-08012-00 |
from US $1.42 |
||
|
48
|
48
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
49
|
49
97021-10070-00 Bolt |
97021-10070-00 |
from US $1.21 |
||
| replacement | |||||
|
49
|
49
97017-10070-00 Bolt |
97017-10070-00 |
US $3.54 |
||
|
50
|
50
95611-12200-00 Nut, Self-Locking |
95611-12200-00 |
from US $4.50 |
||
| replacement | |||||
|
50
|
50
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
51
|
51
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
51
|
51
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
51
|
51
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
52
|
52
999-99017-79-00
Diff.gear Set (2Nl)
2NL |
999-99017-79-00 |
— | ||
|
53
|
53
90501-186E7-00
Spring, Compression
|
90501-186E7-00 |
— | ||
|
54
|
54
2NL-46424-00-00
Cam, Differential
|
2NL-46424-00-00 |
— | ||
|
55
|
55
93450-17044-00 Circlip |
93450-17044-00 |
from US $1.56 |
||
|
56
|
56
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.28 |
||
|
57
|
57
2NL-26279-00-00
Guide, Cable
|
2NL-26279-00-00 |
— | ||
