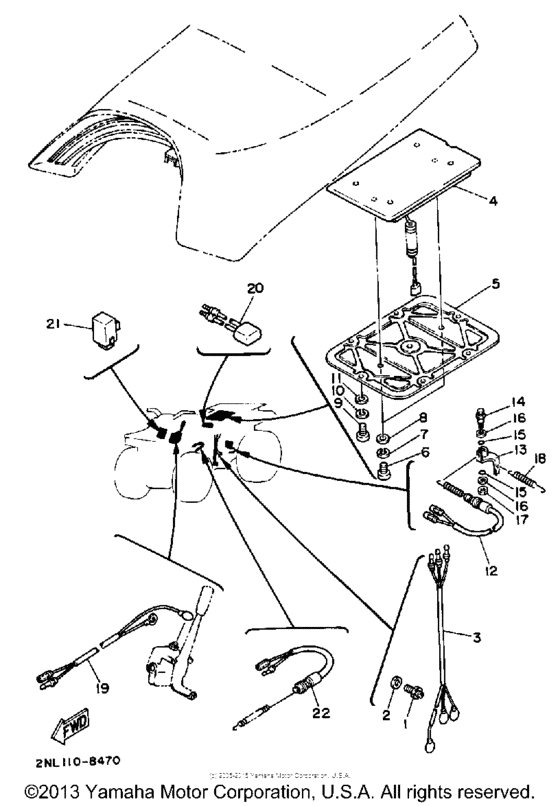

Electrical (2) Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-82540-00-00
Neutral Switch Assy
|
24W-82540-00-00 |
— | ||
| replacements | |||||
|
1
|
1
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
1
|
1
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
2
|
2
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
3
|
3
2NL-82541-00-00 Wire, Lead |
2NL-82541-00-00 |
US $12.37 |
||
|
4
|
4
2NL-82530-01-00
Stop Switch Assembly
FOR SEAT |
2NL-82530-01-00 |
— | ||
|
5
|
5
2NL-82588-00-00
Plate
|
2NL-82588-00-00 |
— | ||
|
6
|
6
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
6
|
6
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
9
|
9
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
2NL-82550-02-00
Stp Swth Asy
|
2NL-82550-02-00 |
— | ||
| replacement | |||||
|
12
|
12
2NL-82550-03-00
Engine Stop Switch Assy
|
2NL-82550-03-00 |
— | ||
|
13
|
13
2NL-2539F-00-00
Plate 1
|
2NL-2539F-00-00 |
— | ||
|
14
|
14
901-09064-E8-00 Bolt |
901-09064-E8-00 |
US $6.08 |
||
|
15
|
15
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.84 |
||
|
16
|
16
90201-094L5-00 Washer, Plate |
90201-094L5-00 |
US $1.42 |
||
| replacement | |||||
|
16
|
16
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
17
|
17
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
18
|
18
905-06124-05-00
Spring, Tension
|
905-06124-05-00 |
— | ||
|
19
|
19
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
20
|
20
37X-11110-02-00 Cylinder Head AssyIN PRICE BOOK |
37X-11110-02-00 |
from US $477.22 |
||
|
21
|
21
2NL-85740-00-00 Control Unit Ass''y |
2NL-85740-00-00 |
from US $169.94 |
||
| replacement | |||||
|
21
|
21
41R-85740-00-00 Control Unit Ass''y |
41R-85740-00-00 |
from US $101.02 |
||
|
22
|
22
2NL-83980-01-00
Stop Switch Assemblyswitch Asse
FOR PARKING |
2NL-83980-01-00 |
— | ||
| replacements | |||||
|
22
|
22
2NL-83980-03-00
CYL KIT,MASTER
FOR PARKING |
2NL-83980-03-00 |
— | ||
|
22
|
22
2NL-83980-02-00
Front Stop Switch Assy
FOR PARKING |
2NL-83980-02-00 |
— | ||
