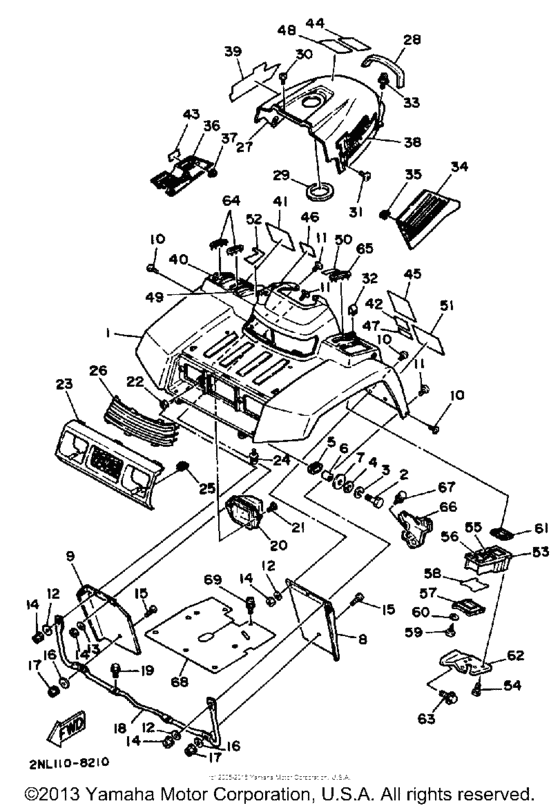

Front fender Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-21511-00-00
Fender, Front
|
2NL-21511-00-00 |
— | ||
|
2
|
2
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
2
|
2
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
2
|
2
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
4
|
4
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
90480-01400-00 Grommet |
90480-01400-00 |
from US $4.11 |
||
|
6
|
6
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
7
|
7
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
8
|
8
2NL-21521-00-00
Flap, Front Fender
|
2NL-21521-00-00 |
— | ||
|
9
|
9
2NL-21561-00-00
Flap
|
2NL-21561-00-00 |
— | ||
|
10
|
10
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
11
|
11
90154-05002-00 Screw, Binding |
90154-05002-00 |
from US $2.69 |
||
|
12
|
12
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
13
|
13
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $1.84 |
||
|
14
|
14
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
14
|
14
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
15
|
15
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
16
|
16
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $1.84 |
||
|
17
|
17
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
18
|
18
2NL-21513-00-00
Stay, Fender 1
|
2NL-21513-00-00 |
— | ||
|
19
|
19
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
19
|
19
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
19
|
19
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
20
|
20
59V-84111-00-00
Body, Headlight
|
59V-84111-00-00 |
— | ||
|
21
|
21
98901-05014-00 Screw, Bind |
98901-05014-00 |
from US $1.56 |
||
| replacements | |||||
|
21
|
21
901-5405X-03-00
Screw, Binding (11H)
|
901-5405X-03-00 |
— | ||
|
21
|
21
98907-05014-00 Screw, Bind |
98907-05014-00 |
from US $1.56 |
||
|
22
|
22
90170-05365-00
Nut, Hexagon
|
90170-05365-00 |
— | ||
|
23
|
23
2NL-23391-00-00
Panel, Front
|
2NL-23391-00-00 |
— | ||
|
24
|
24
90159-05100-00 Screw, With Washer |
90159-05100-00 |
from US $2.69 |
||
| replacements | |||||
|
24
|
24
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
24
|
24
90159-05073-00 Screw, With Washer |
90159-05073-00 |
from US $2.69 |
||
|
25
|
25
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
25
|
25
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
26
|
26
2NL-2172A-00-00
Panel 1
|
2NL-2172A-00-00 |
— | ||
|
27
|
27
2NL-2171A-00-00
Cover, Top
|
2NL-2171A-00-00 |
— | ||
|
28
|
28
2NL-21717-00-00
Damper, Side Cover
|
2NL-21717-00-00 |
— | ||
|
29
|
29
1UY-21778-00-00
Damper, Locating 1
|
1UY-21778-00-00 |
— | ||
|
30
|
30
901-54050-49-00
Screw, Binding
|
901-54050-49-00 |
— | ||
|
31
|
31
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $1.66 |
||
|
32
|
32
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
32
|
32
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
33
|
33
90159-06082-00 Screw, Panhead W/washer (22F) |
90159-06082-00 |
from US $2.55 |
||
| replacement | |||||
|
33
|
33
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
34
|
34
2NL-21711-00-00
Cover, Side 1
|
2NL-21711-00-00 |
— | ||
|
35
|
35
904-80014-15-00 Grommet(51X) |
904-80014-15-00 |
US $9.41 |
||
|
36
|
36
2NL-21721-00-00
Cover, Side 2
|
2NL-21721-00-00 |
— | ||
|
37
|
37
904-80014-15-00 Grommet(51X) |
904-80014-15-00 |
US $9.41 |
||
|
38
|
38
2NL-21781-00-00
Emblem 1
|
2NL-21781-00-00 |
— | ||
|
39
|
39
2NL-21782-00-00
Emblem 2
|
2NL-21782-00-00 |
— | ||
|
40
|
40
2NL-2151A-00-00
Label 1
|
2NL-2151A-00-00 |
— | ||
|
41
|
41
2NL-2151E-00-00
Label 2
|
2NL-2151E-00-00 |
— | ||
|
42
|
42
2NL-2151F-00-00
Label 3
|
2NL-2151F-00-00 |
— | ||
|
43
|
43
2NL-2151G-00-00
Label 4
|
2NL-2151G-00-00 |
— | ||
|
44
|
44
2NL-21697-00-00
Label, Caution 2
|
2NL-21697-00-00 |
— | ||
|
45
|
45
2NL-21668-00-00
Label, Tire
|
2NL-21668-00-00 |
— | ||
|
46
|
46
1YW-26139-00-00
Label, Choke
|
1YW-26139-00-00 |
— | ||
|
47
|
47
1NU-21578-00-00
Emblem
|
1NU-21578-00-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
2NL-21659-00-00
Label, Safety
|
2NL-21659-00-00 |
— | ||
|
49
|
49
2NL-2151J-00-00
Label 6
|
2NL-2151J-00-00 |
— | ||
|
50
|
50
2NL-2151K-00-00
Label 7
|
2NL-2151K-00-00 |
— | ||
|
51
|
51
2NL-2151M-00-00
Label 9
|
2NL-2151M-00-00 |
— | ||
|
52
|
52
2NL-2151N-00-00
Label 10
10 |
2NL-2151N-00-00 |
— | ||
|
53
|
53
2NL-77711-01-00
Panel, Instrument
|
2NL-77711-01-00 |
— | ||
|
54
|
54
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
54
|
54
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
55
|
55
2NL-2151R-00-00
Label 11
11 |
2NL-2151R-00-00 |
— | ||
|
56
|
56
2NL-2151T-00-00
Label 12
12 |
2NL-2151T-00-00 |
— | ||
|
57
|
57
2NL-83569-00-00
Pilot Box, Lower
|
2NL-83569-00-00 |
— | ||
|
58
|
58
2NL-21669-00-00 Seal |
2NL-21669-00-00 |
from US $8.93 |
||
| replacement | |||||
|
58
|
58
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
59
|
59
90167-03010-00 Screw, Tapping |
90167-03010-00 |
from US $0.92 |
||
| replacement | |||||
|
59
|
59
97707-30512-00 Screw, Tapping |
97707-30512-00 |
from US $1.56 |
||
|
60
|
60
92990-03200-00 Washer, Plain |
92990-03200-00 |
from US $0.47 |
||
|
61
|
61
59V-83513-00-00
Damper
|
59V-83513-00-00 |
— | ||
|
62
|
62
2NL-2834L-00-00
Joint 2
|
2NL-2834L-00-00 |
— | ||
|
63
|
63
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
63
|
63
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
63
|
63
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
64
|
64
2NL-21575-00-00
Seal 1
|
2NL-21575-00-00 |
— | ||
|
65
|
65
2NL-21576-00-00
Seal 2
|
2NL-21576-00-00 |
— | ||
|
66
|
66
2NL-21586-00-00
Bracket
|
2NL-21586-00-00 |
— | ||
|
67
|
67
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
67
|
67
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
67
|
67
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
|
68
|
68
2NL-21541-00-00 Damper 1 |
2NL-21541-00-00 |
US $22.39 |
||
|
69
|
69
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
69
|
69
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
